Specifications & Procedures

Check belt tension using Burroughs tension gauge at longest belt run. Adjust belt tension if necessary. See BELT TENSION SPECIFICATIONS - Tension In Lbs. (kg) Using Belt Tension Gauge table.

BELT TENSION SPECIFICATIONS - Tension In Lbs. (kg) Using Belt Tension Gauge

Application

New Belt

⁽¹⁾ Used Belt

Generator

121-143 (55-65)

55-88 (25-40)

Power Steering

100-121 (45-55)

55-77 (25-35)

⁽¹⁾	Used belt is a belt in operation at least 5 minutes.

DRIVE BELT ROUTING

NOTE: Power steering drive belt is routed around crankshaft pulley and vane pump.

For generator drive belt pattern, see Fig 1.

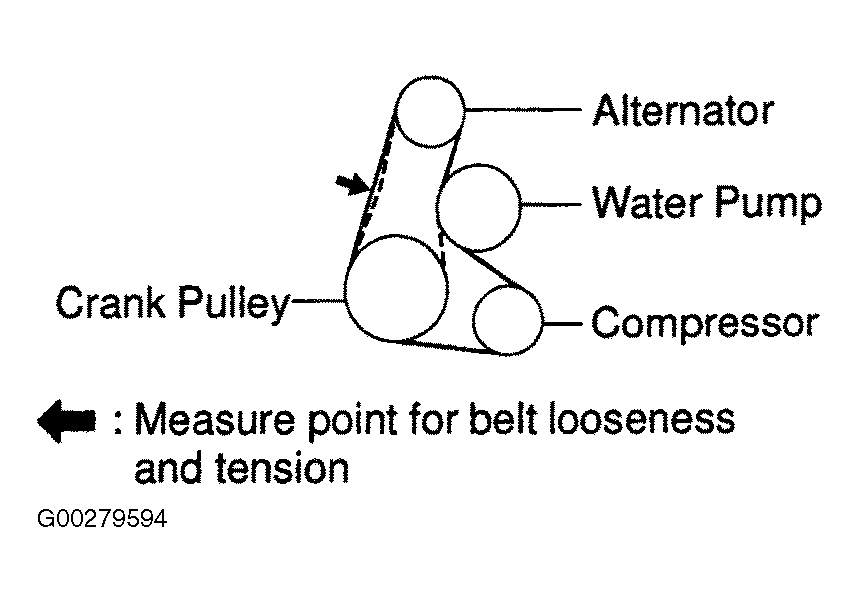

Fig 1: Drive Belt
