Confirmation Driving Pattern

For confirmation driving pattern, see Fig 1.

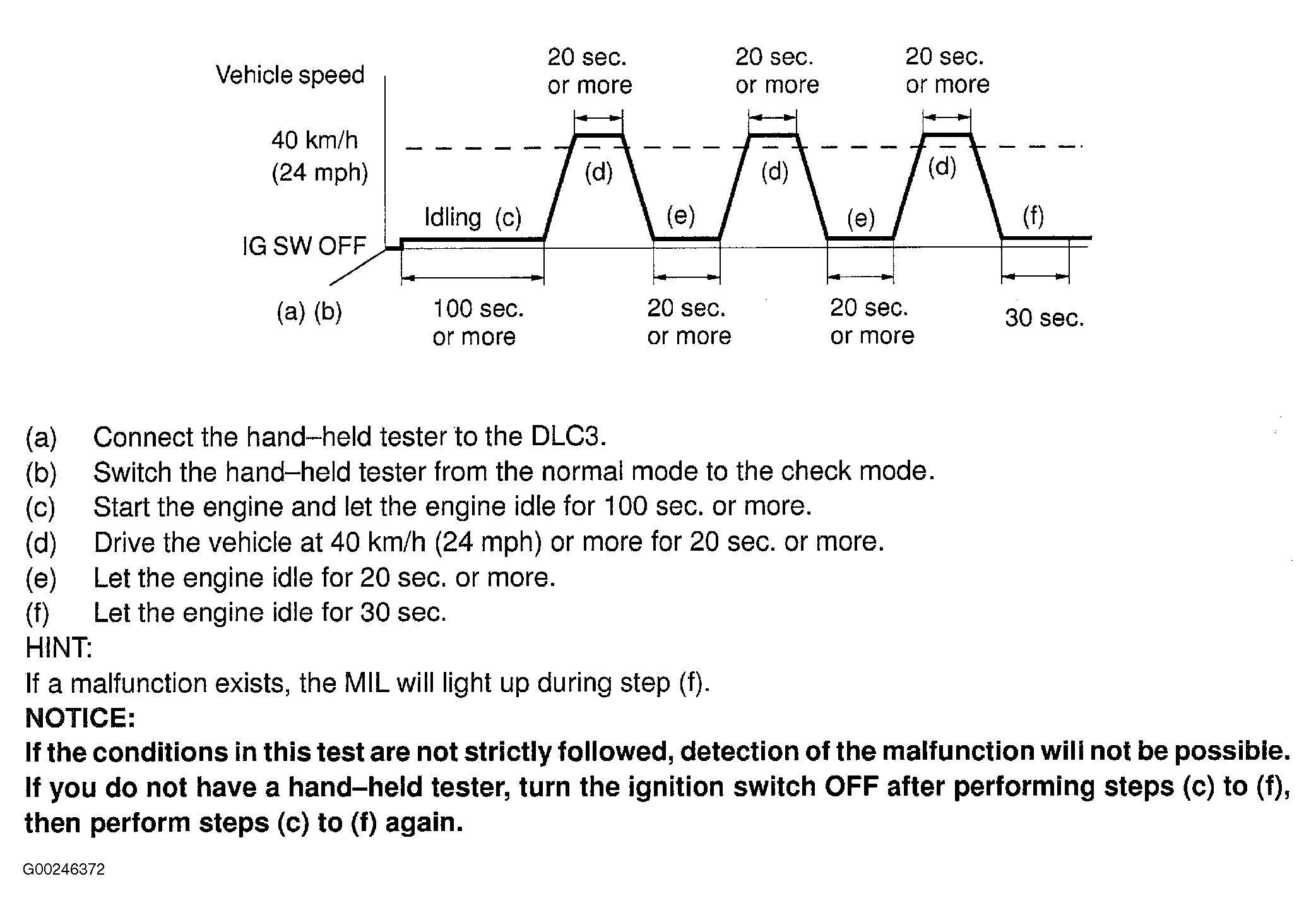

Fig 1: DTCs P0130, P2195 & P2196 Confirmation Driving Pattern
G00246372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
