Cooling System (Mechanical): Radiator: Components

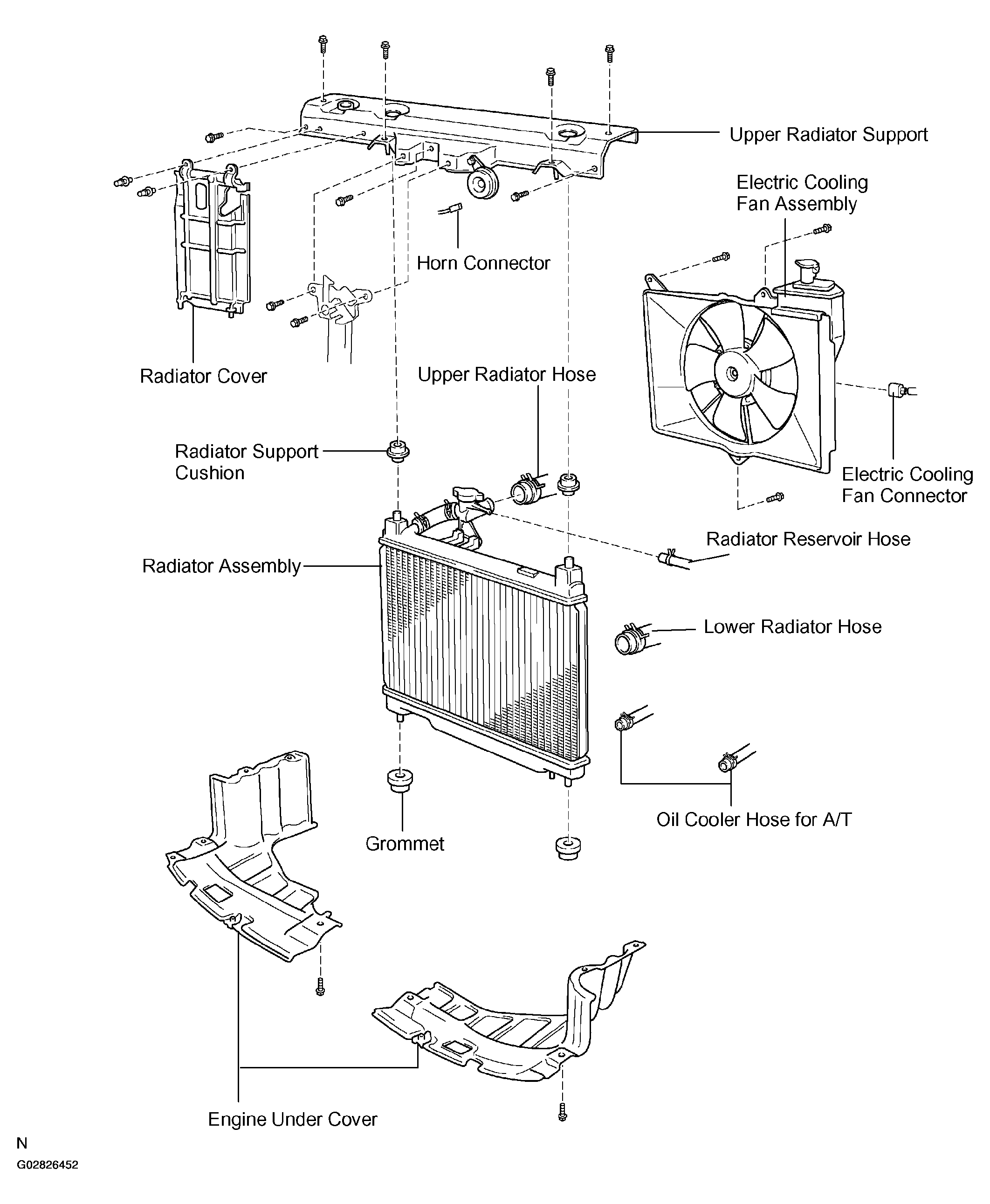

Fig 1: Locating Cooling System Components
G02826452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

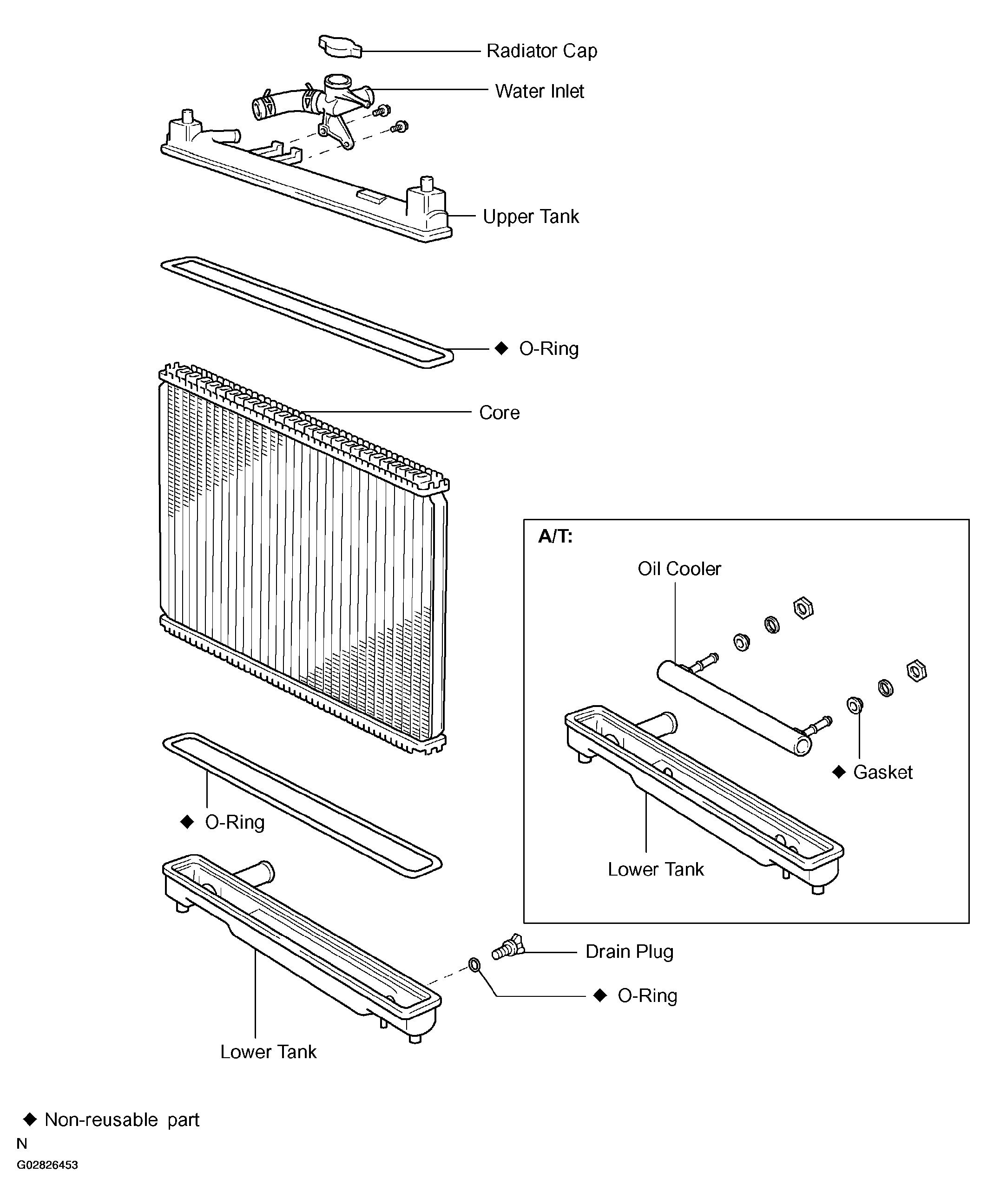

Fig 2: Exploded View Of Radiator Assembly
G02826453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
