Combination Meter: Circuit

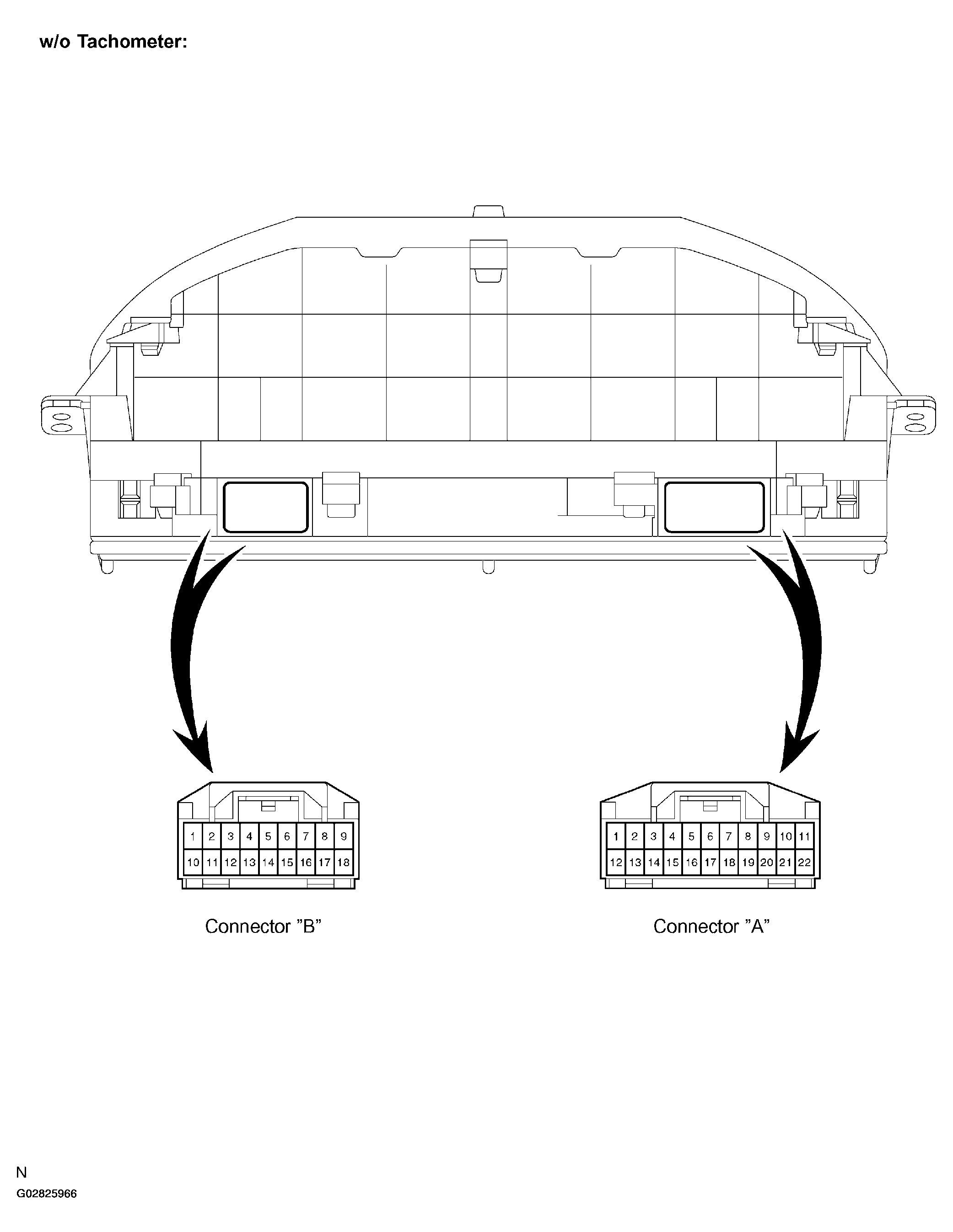

Fig 1: Locating Combination Meter Connector; w/o Tachometer
G02825966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

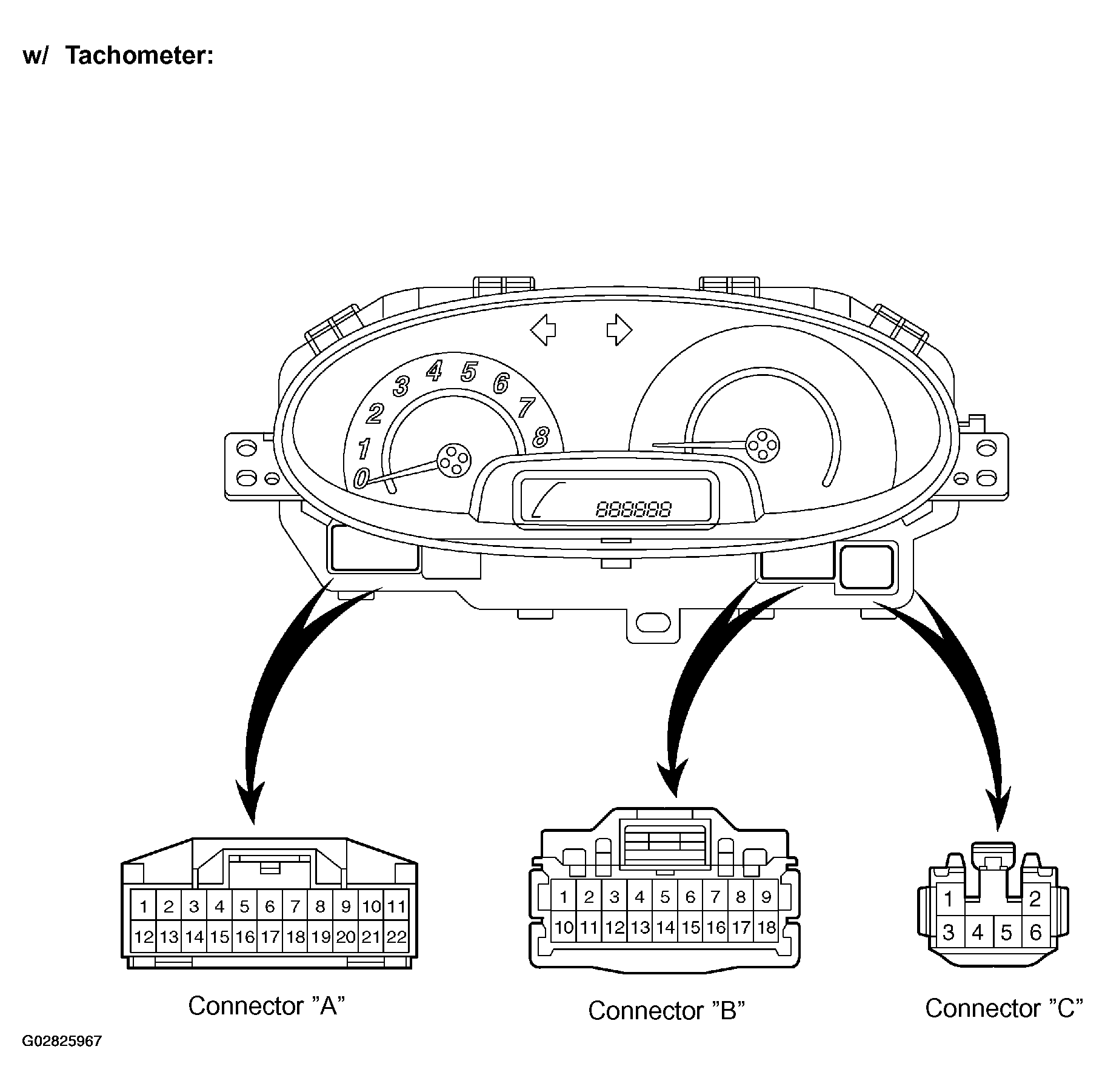

Fig 2: Locating Combination Meter Connector; With Tachometer
G02825967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

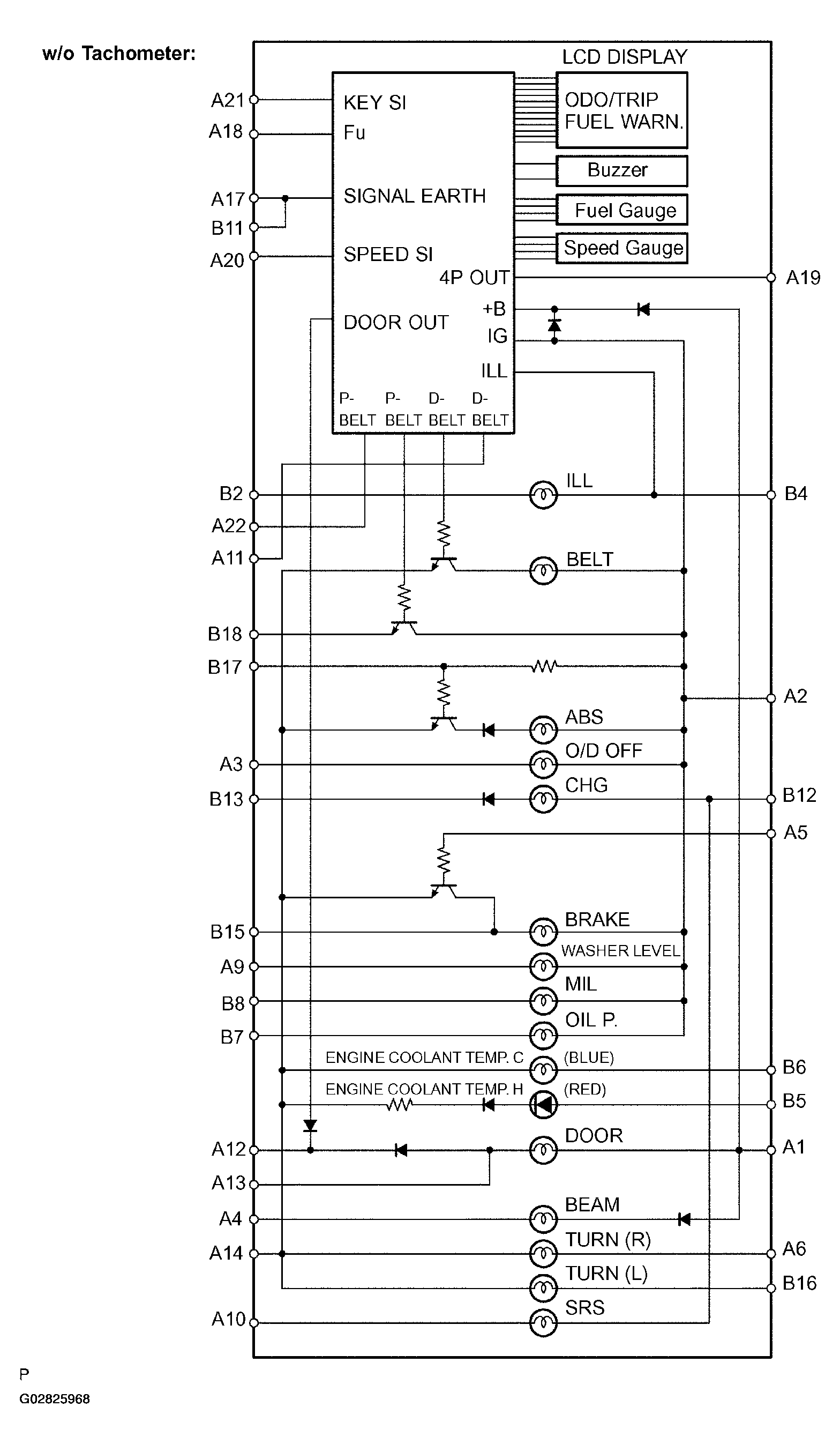

Fig 3: Combination Meter Wiring Diagram; w/o Tachometer
G02825968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

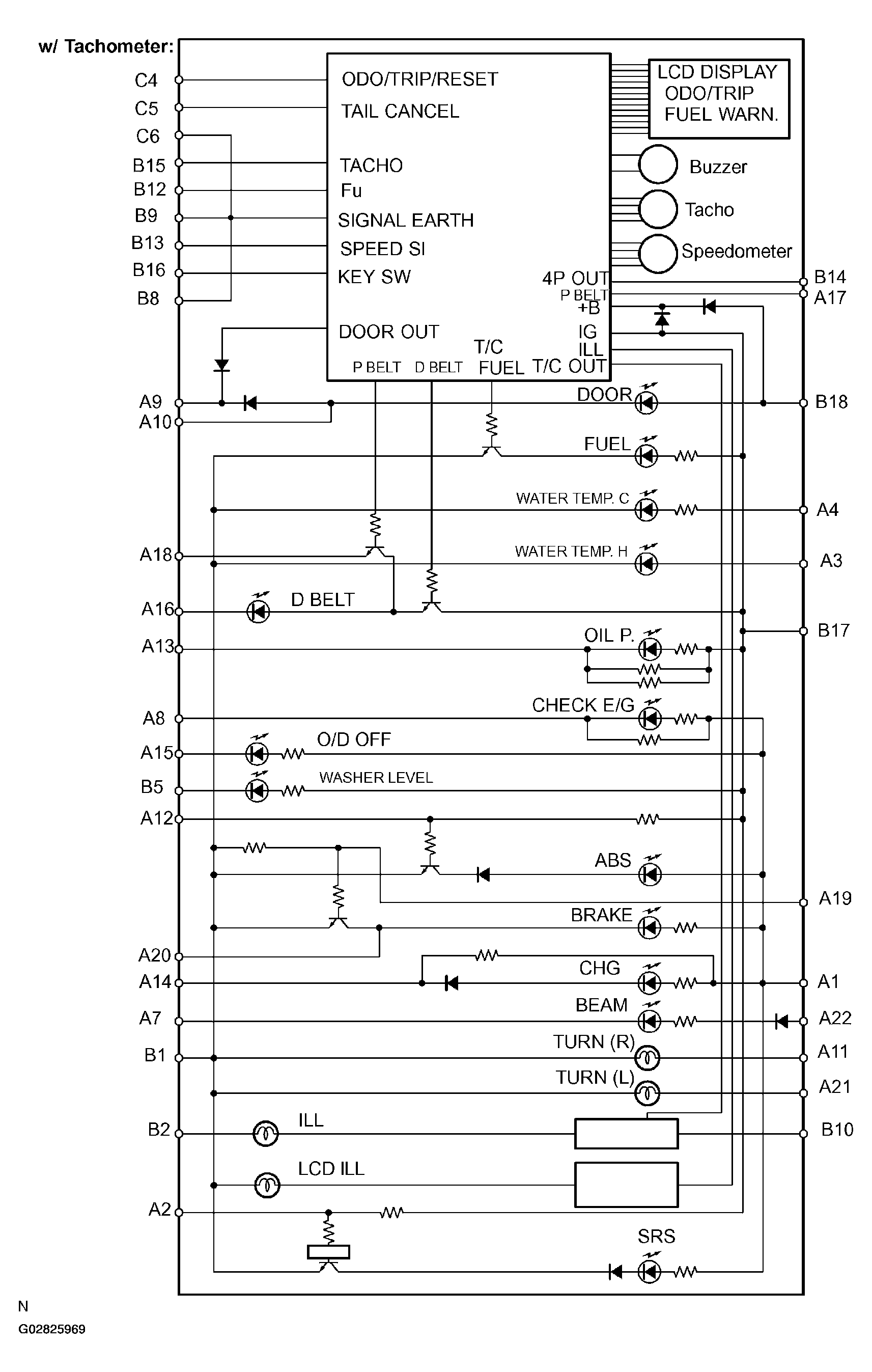

Fig 4: Combination Meter Wiring Diagram; With Tachometer
G02825969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

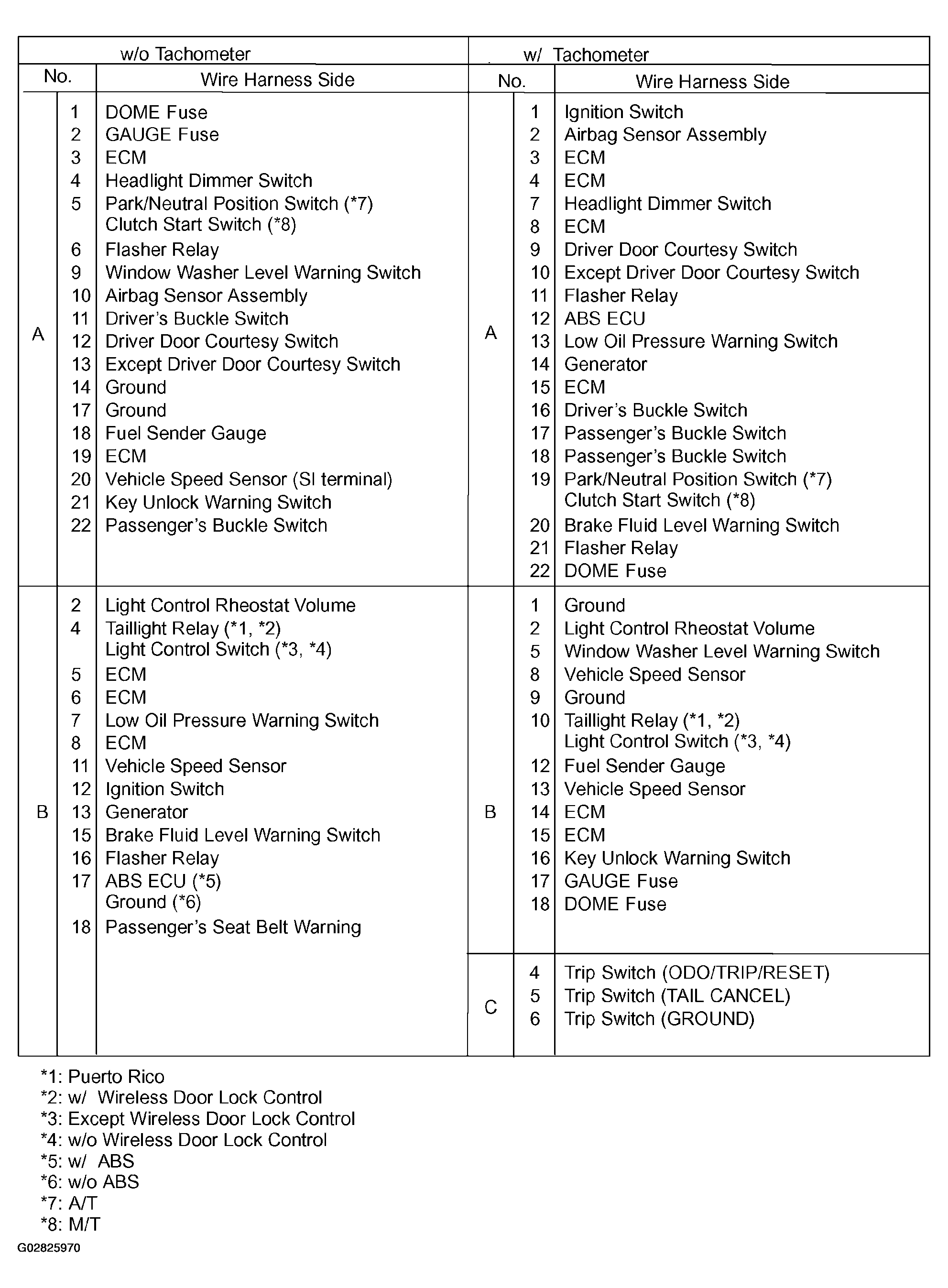

Fig 5: Terminal Reference Table
G02825970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
