Wheel Alignment Specifications & Adjustment Procedures: Specifications

Vehicle Height Specifications

Tire size Front(1) mm (in.) Rear(2) mm (in.)
P175/65R14 191 (7.52) 259(10.20)
P185/60R15 202 (7.95) 269 (10.60)

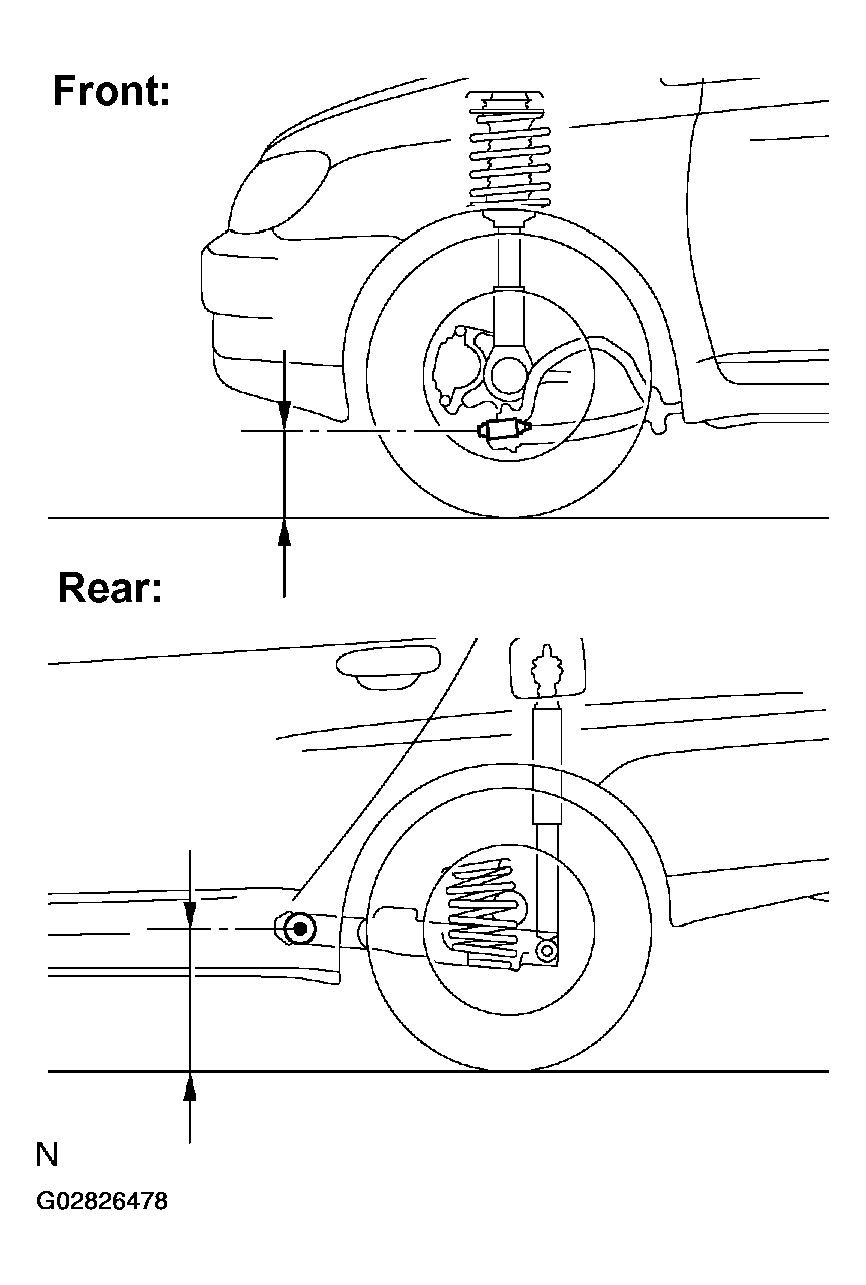

(1) Front measuring point. Measure the distance from the ground to the head center of the front side lower suspension arm mounting bolt. Refer to Figure.
(2) Rear measuring point. Measure the distance from the ground to the center of the rear axle beam mounting bolt. Refer to Figure.
Front Camber, Caster & Steering Axis Inclination Specifications

Camber -0°36' +/-45' (-0.60° +/-0.76)
Right-left error 45' (0.75°) or less
Caster
Manual steering 1°30' +/- 45' (1.50° +/- 0.75°)
Power steering: 14 inch 2.00° +/- 45' (2.00° +/- 0.75°)
: 15 inch 2.03° +/- 45' (2.05° +/- 0.75°)
Right-left error 45' (0.75°) or less
Steering axis inclination 10°05' +/- 45' (10.08° +/- 0.75°)
Right-left error 45' (0.75°) or less
Front Toe-In Specifications

Toe-in (total) A + B: 0° +/- 12' (0° +/- 0.2°)
Toe-in (total) C - D: 0 +/- 2 mm (0 +/- 0.08 in.)
Front Wheel Turning Angle Specifications

Manual steering Power steering
Inside wheel 36° 40' +/- 2° 33° 30' +/- 2°
Inside wheel (36.67° +/- 2°) (33.50° +/- 2°)
Outside wheel: Reference 31° 47'(31.78°) 29° 46' (29.77°)
Rear Camber Specifications

Camber -0°57' +/- 45' (-0.95° +/- 0.75°)
Right-left error 45' (0.75°) or less
Rear Tow-In Specifications

Toe-in (total) A + B: 0° 21' +/- 20' (0.35° +/- 0.33 °
Toe-in (total) C - D: 3.3 +/- 3.0 mm (0.13 +/- 0.12 in.)
