Repair Procedures

WARNING: This page is about a different car, the 2004 Toyota ECHO. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

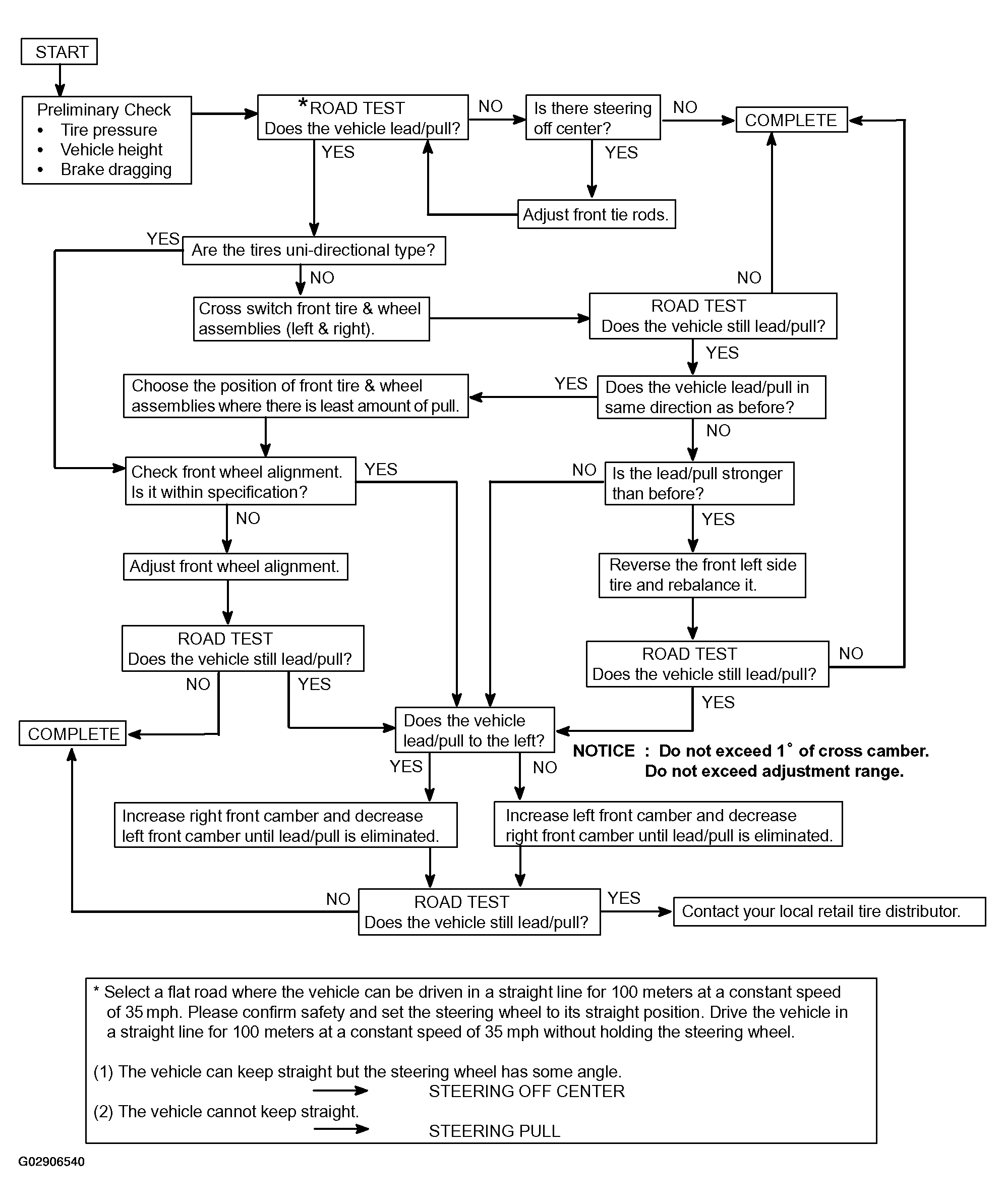

This is a flow chart for vehicle pull.

Fig 1: Repair Procedures Flow Chart
G02906540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
