Engine Exhaust Assembly: Components

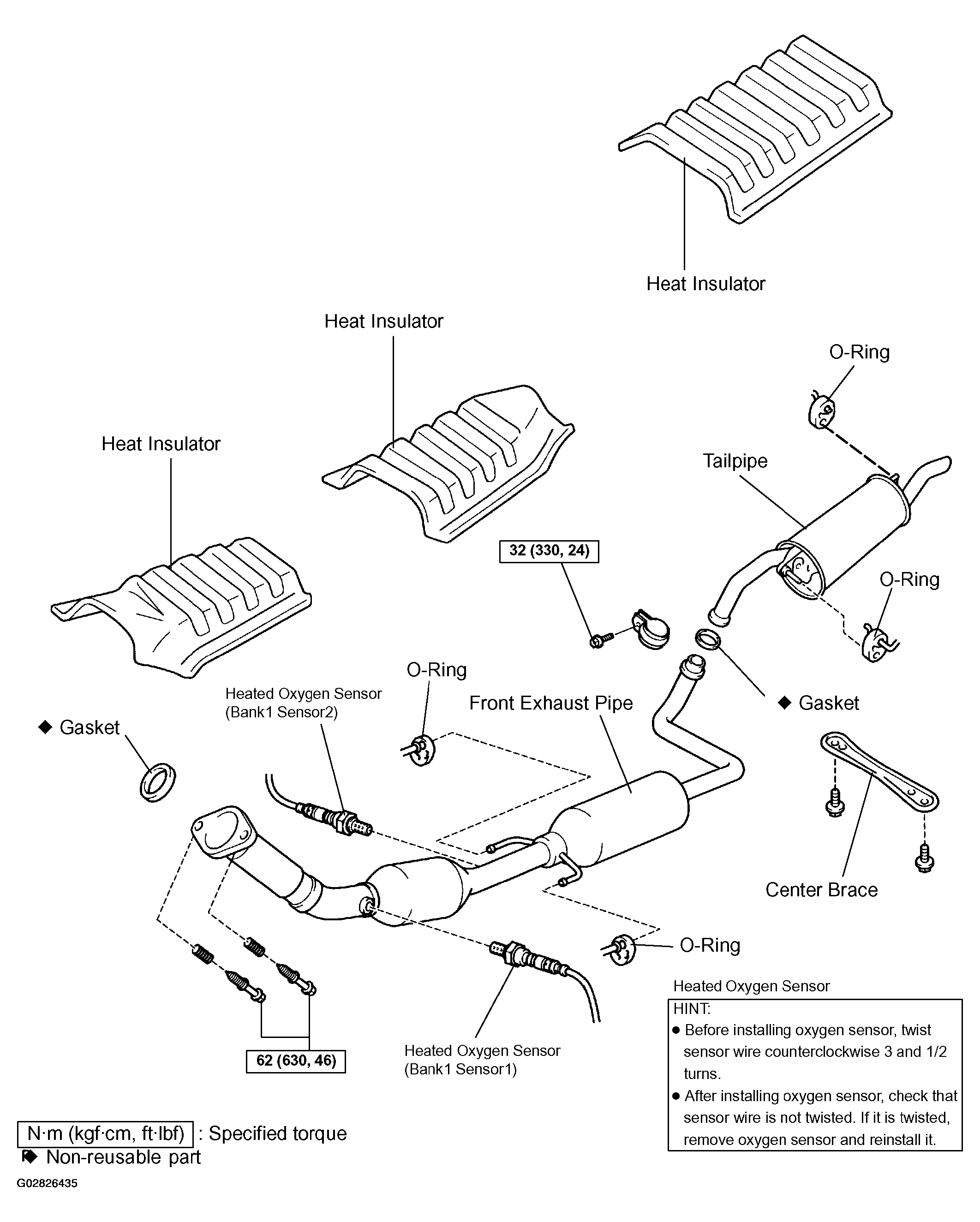

Fig 1: Exploded View Of Exhaust System

G02826435

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
