Body & Frame: Windows: Windshield: Removal

REMOVE INNER REAR VIEW MIRROR
REMOVE SUN VISORS AND HOLDERS

Fig 1: Locating Inner Rear View Mirror
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT PILLAR GARNISH
1. Pry out clips by your hand.
2. Pull the garnish upward to remove it.
3. Use the same manner described above to the other side.
REMOVE WIPER ARMS
Remove the 2 wiper arm head caps, 2 nuts and 2 wiper arms.
REMOVE COWL TOP VENTILATOR LOUVERS
1. Remove the hood to cowl top seal.
2. Remove the 7 clips, then pull out the cowl top ventilator louver RH and LH.
REMOVE ASSIST GRIP
REMOVE FRONT SIDE OF ROOF HEADLINING (See REMOVAL or REMOVAL )

Fig 2: Identifying Front Pillar Garnish
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE WINDSHIELD MOULDING
1. Using a knife, cut off the moulding as shown.
  NOTE: Do not damage the body with the knife.
2. Remove the remaining moulding.

  Fig 3: Removing Windshield Moulding
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE WINDSHIELD GLASS
1. push piano wire through between the body and glass from the interior
2. Tie both wire ends to wooden block or similar objects.
HINT:

Apply protective tape to the outer surface to keep the surface from being scratched.

Fig 4: Removing Windshield Glass
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: When separating the glass, be careful not to damage the paint and interior and exterior ornaments. To prevent scratching the safety pad when removing the windshield, place a plastic sheet between the piano wire and safety pad.

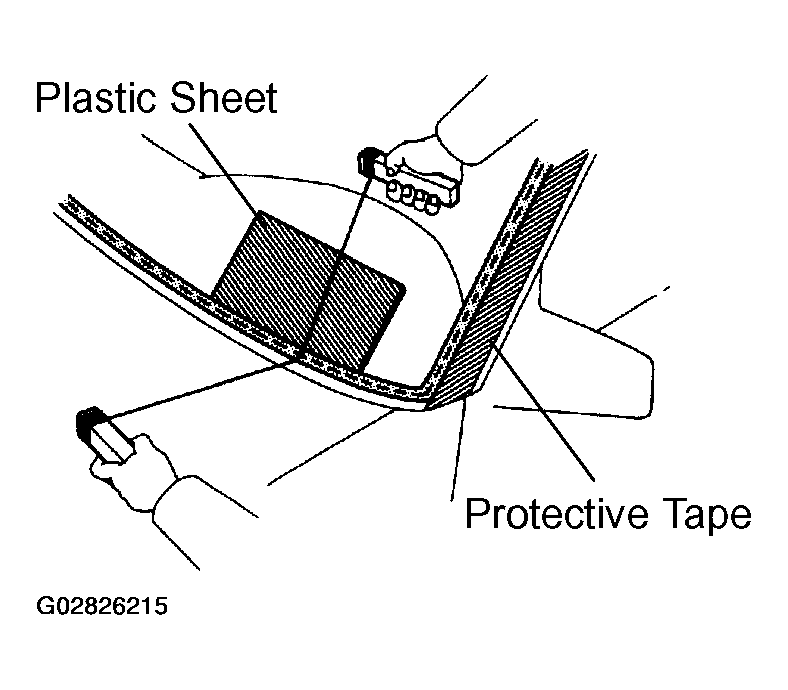

Fig 5: Using Plastic Sheet And Protect
