Home >> Toyota >> 2003 >> ECHO 2D Sedan, Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Quarter Window Glass >> Components

Quarter Window Glass: Components

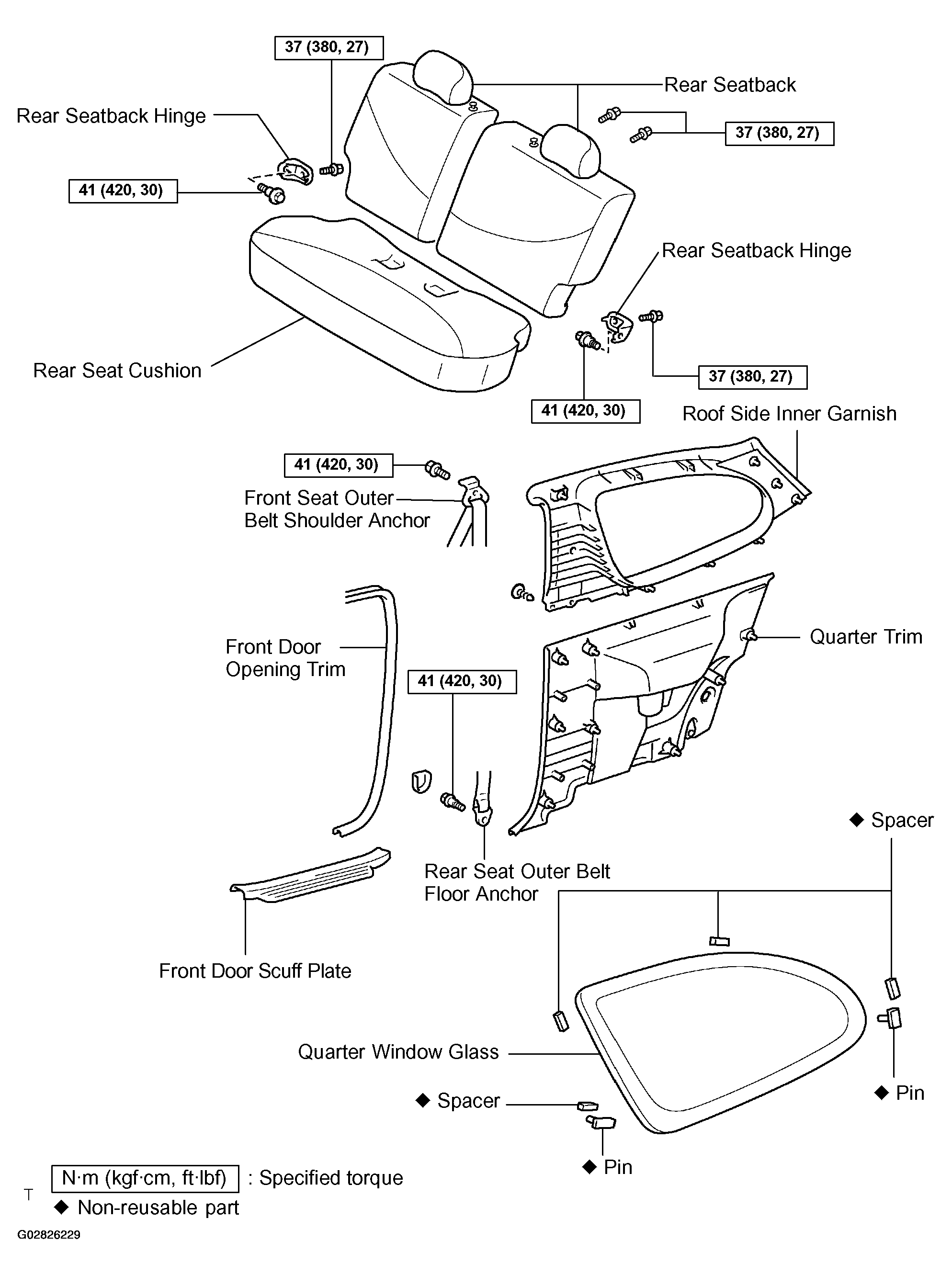

Fig 1: Quarter Window Glass Components

G02826229

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
