Back Window Glass: Components

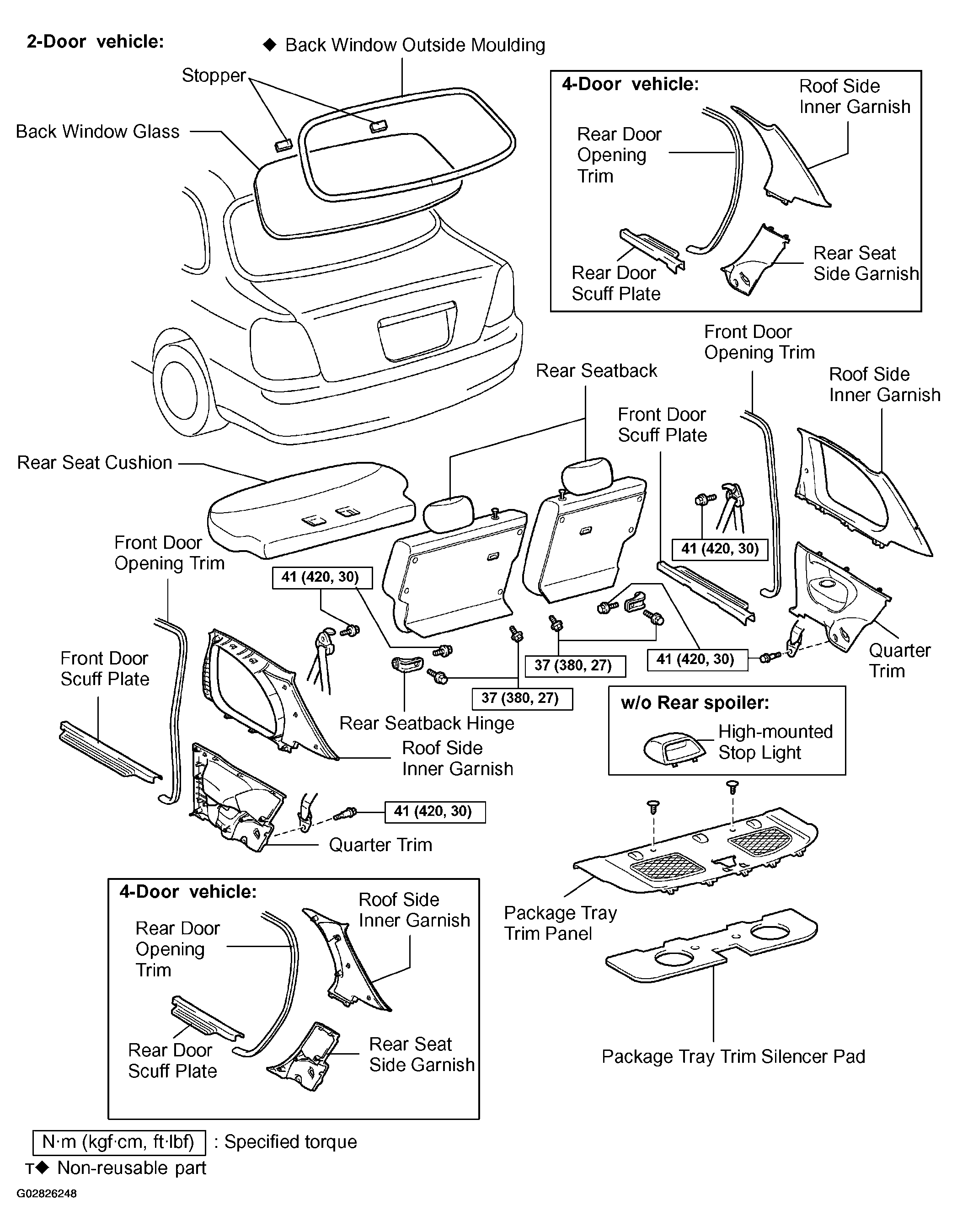

Fig 1: Back Window Glass Components

G02826248

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
