Wireless Door Lock Control System: Pre-Check

Only wireless function (Remote control) will not operate.

(If a new transmitter or a transmitter of the same type that works properly with the vehicle is not available.)

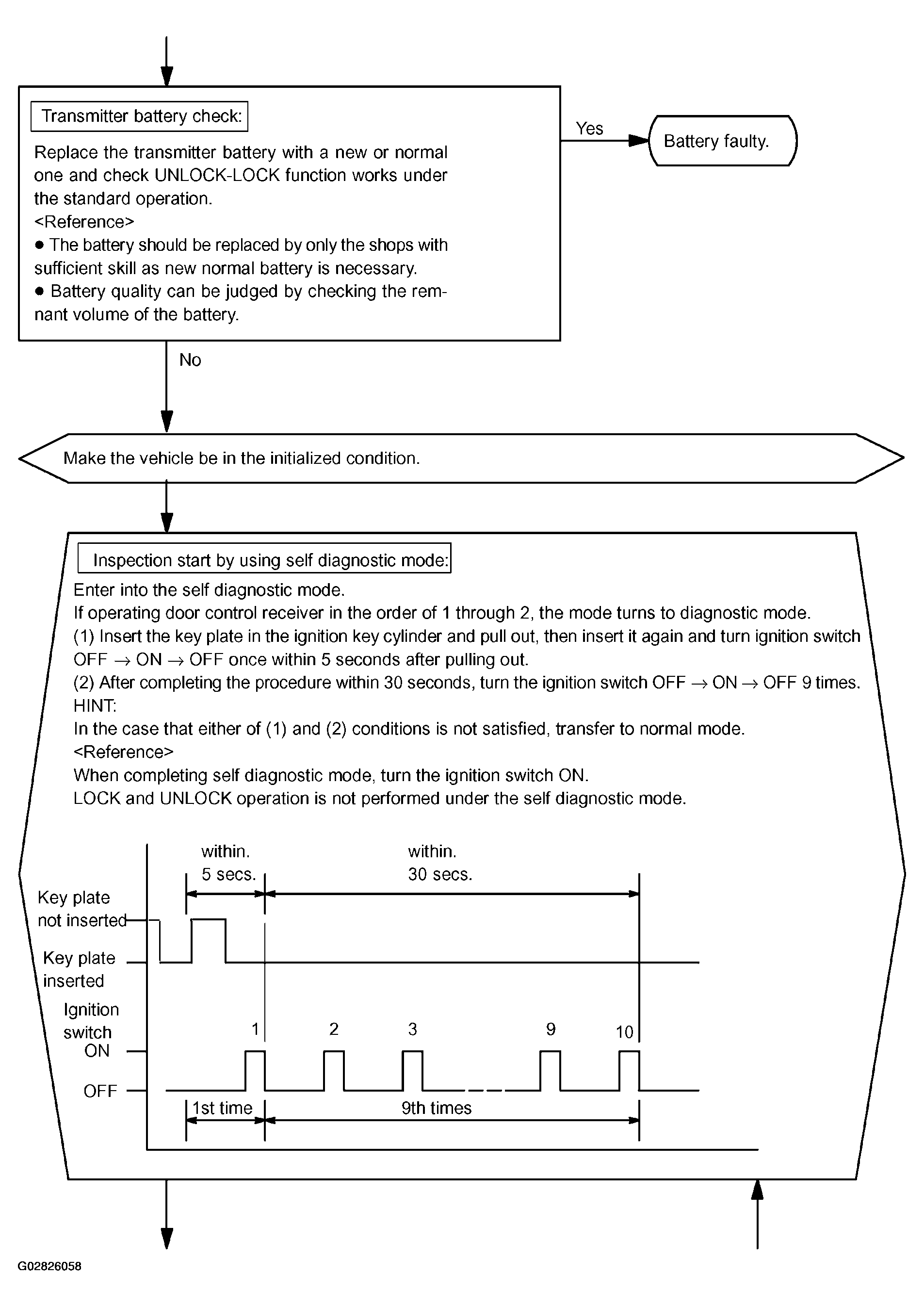

Fig 1: Diagnose Procedure Wireless Function Remote Control Not Operate (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

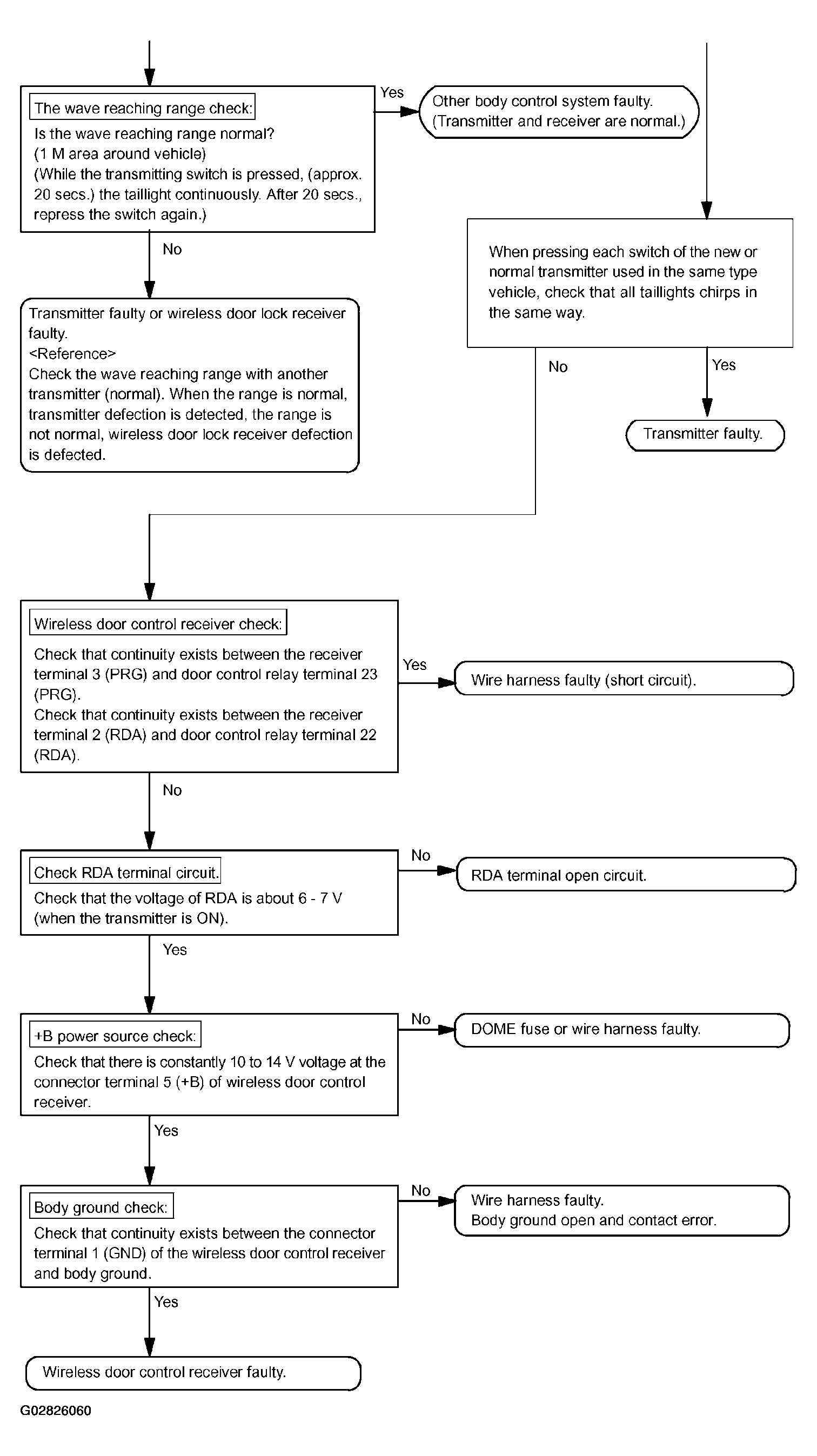

Fig 2: Diagnose Procedure Wireless Function Remote Control Not Operate (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

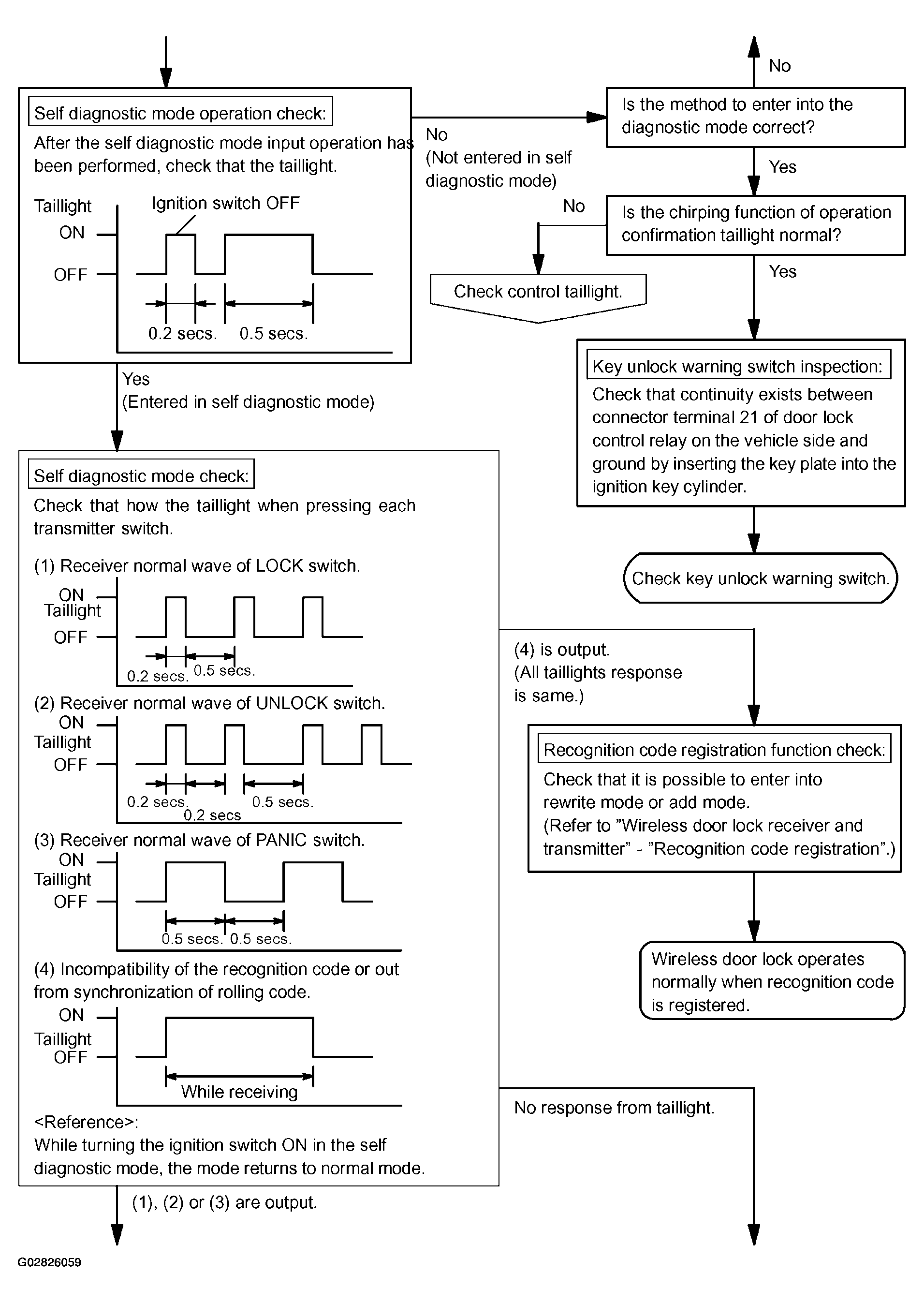

Fig 3: Diagnose Procedure Wireless Function Remote Control Not Operate (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

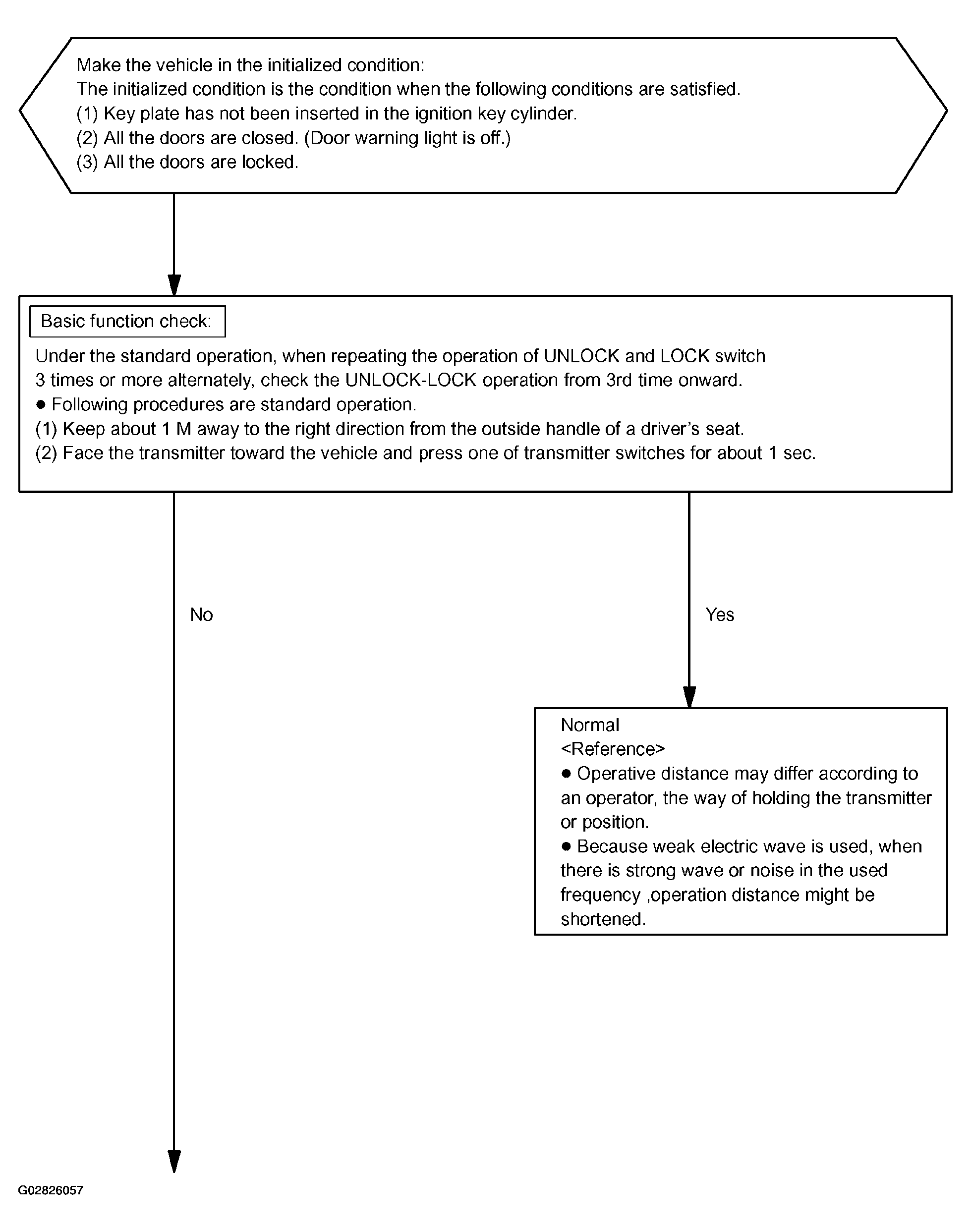

Fig 4: Diagnosis Procedure Wireless Function Remote Control Not Operate (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
