Body & Frame: Seats: Seat: Overhaul

HINT:

Tape the screwdriver tip before use when prying parts.

1. DISCONNECT BATTERY NEGATIVE TERMINAL
   CAUTION: Wait for 90 seconds after disconnecting the battery terminal and disconnect the airbag connector.
2. REMOVE FRONT SEAT
   1. Remove the headrest.
   2. Remove the seat track covers and 4 bolts.
   3. Slide the seat to the most rear position.
   4. Disconnect the connector(s) under the seat.
   5. Remove the seat.
   NOTE: Be careful not to damage the body.
3. REMOVE SEPARATE TYPE FRONT SEAT BACK ASSY
   1. Remove the bolt, washer and seat belt inner.
   2. Remove the seat cushion shield inner.

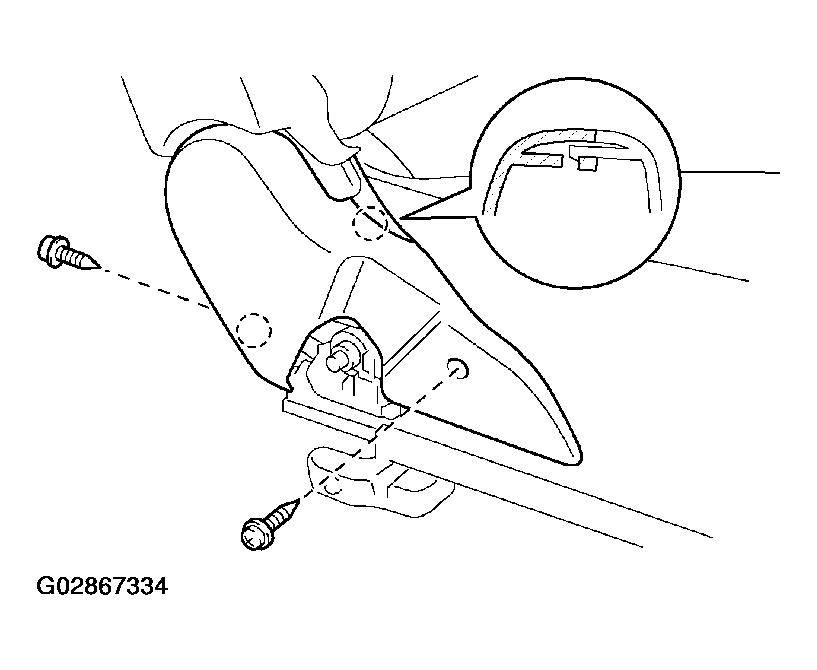

      Fig 1: Removing The Seat Cushion Shield Inner

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Using a screwdriver, remove the reclining adjuster release handle.

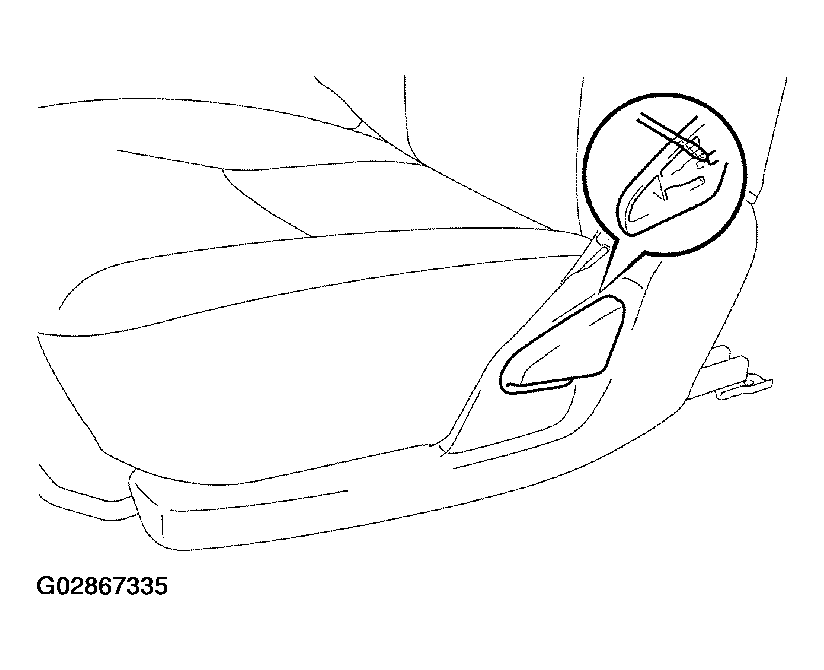

      Fig 2: Removing Reclining Adjuster Release Handle

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Remove the seat cushion shield outer.

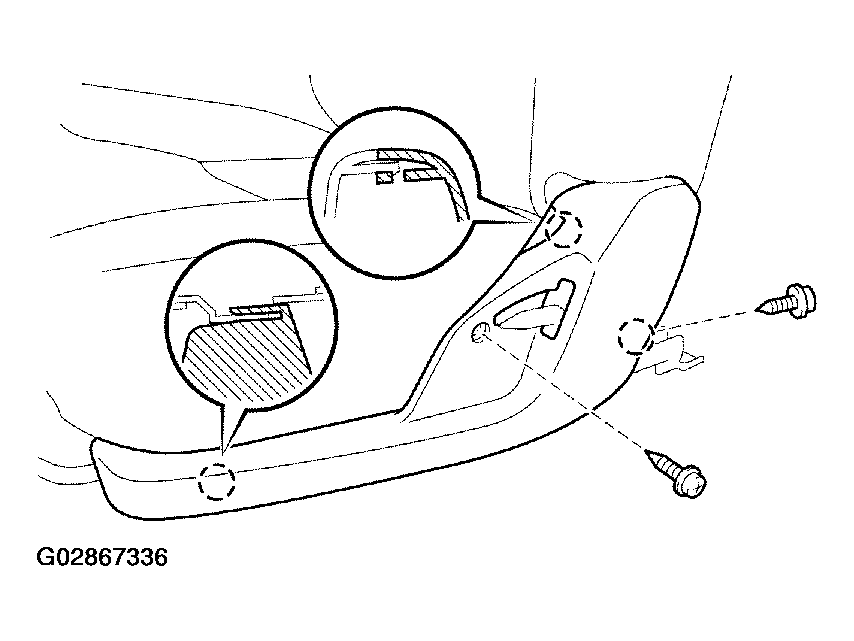

   Fig 3: Removing The Seat Cushion Shield Outer
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. W/side airbag:

      Disconnect the airbag wire under the seat.

   6. Remove the hog rings, 4 bolt and seat back.
4. REMOVE SEPARATE TYPE FRONT SEAT BACK COVER
   1. Remove the hog rings and turn up the seat back cover.
   2. w/side airbag:

      Using a screwdriver, disconnect the clip.

   3. Remove the headrest support, seat back cover and seat back pad.

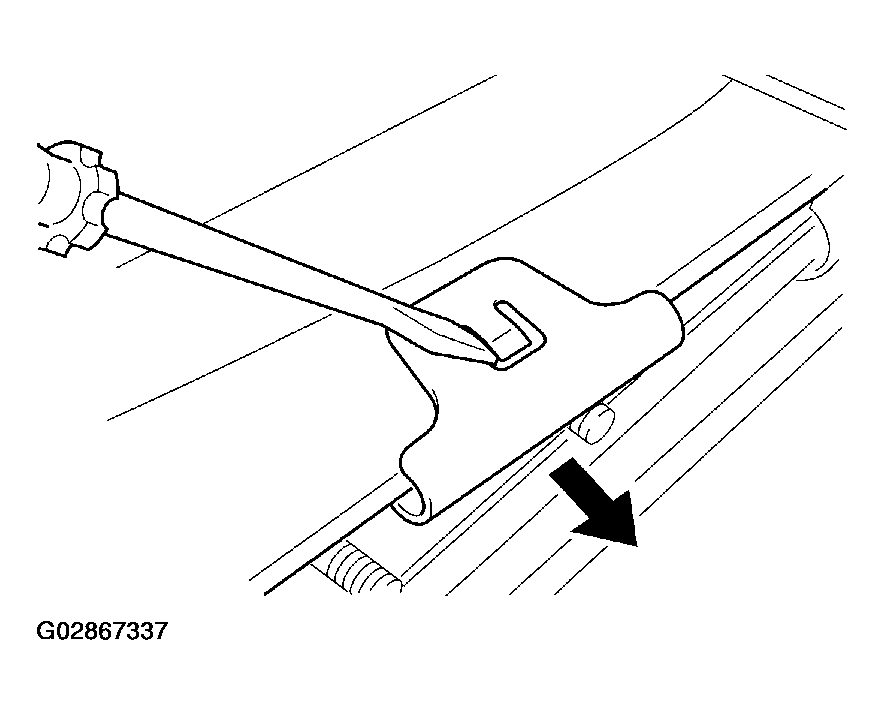

   Fig 4: Disconnecting Clip

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER
   1. Remove the hog rings, seat cushion cover and seat cushion pad.
6. REMOVE FRONT SEAT ADJUSTER
   1. Remove the reclining adjuster inside covers.
7. INSTALL FRONT SEAT ADJUSTER
   1. Install the reclining adjuster inside covers.
8. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER
   1. Install the seat cushion pad to the seat adjuster.
   2. Using hog ring pliers, install the seat cushion cover with new hog rings.

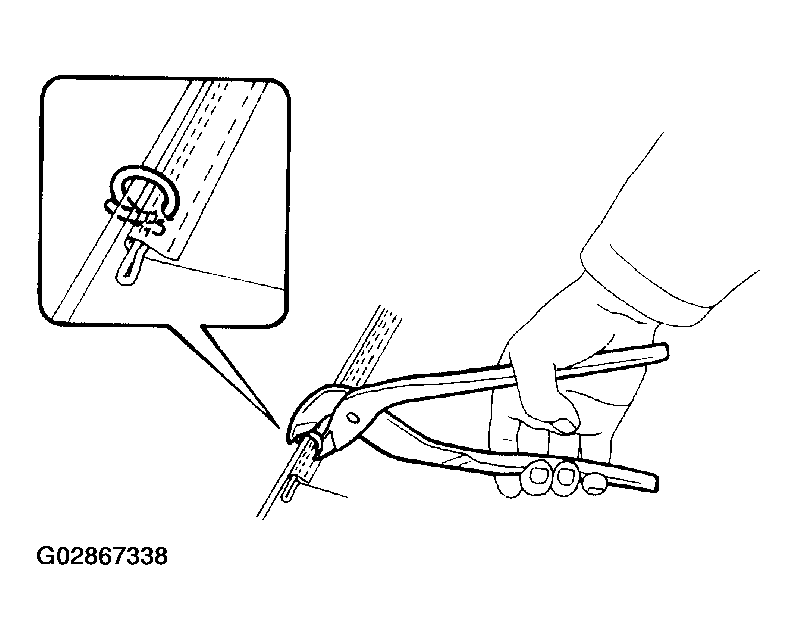

   Fig 5: Installing Seat Cushion Cover With New Hog Rings
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • Be careful not to damage the cover.
   • Be careful to prevent the cover wrinkles as little as possible.
9. INSTALL SEPARATE TYPE FRONT SEAT BACK COVER
   1. Install the seat back pad to the seat back spring assembly.
   2. Cover the top of the seat back with the seat back cover.
   3. Install the headrest supports.
   4. W/side airbag:

      Connect the clip.

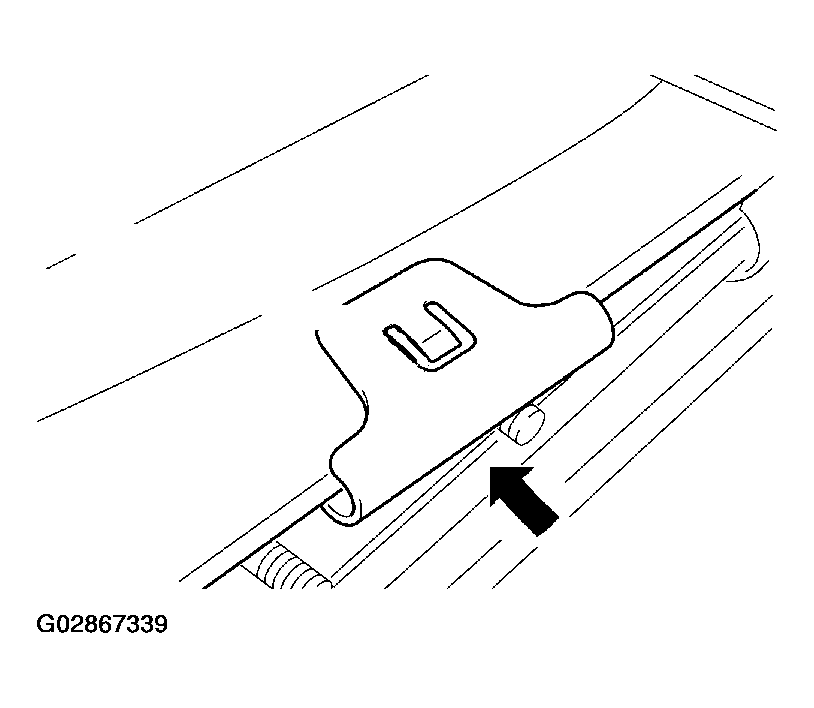

      Fig 6: Connecting The Clip

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Using hog ring pliers, fully install the seat back cover with new hog rings.
   NOTE:

   • Be careful not to damage the cover.
   • Be careful to prevent the cover wrinkles as little as possible.
10. INSTALL SPECTATE TYPE FRONT SEAT BACK ASSY
    1. Install the seat back with the 4 bolts.

       Torque : 43 N.m (440 kgf.cm, 32 ft.lbf)

    2. Using hog ring pliers, install new hog rings.
    3. Install the cushion shield outer with the 2 screws.
    4. Install the vertical seat adjuster knob with the clip.
    5. Install the reclining adjuster release handle.
    6. Install the cushion shield inner with the 2 screws.
    7. Install the seat belt inner with the washer and bolt.

       Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)

    8. Check that the seat belt inner moves smoothly.
11. INSTALL FRONT SEAT
    1. Slide the seat to the most rear position.
    2. Place the seat on the cabin.
       NOTE: Be careful not to damage the body.
    3. Connect the connector(s) under the seat.
    4. Install the front seat with the 4 bolts.

       Torque: 47 N.m (480 kgf.cm, 35 ft.lbf)

    5. Install the seat track covers.
    6. Install the headrest.
