Terminals Of Ecu
- INSPECT INTEGRATION RELAY

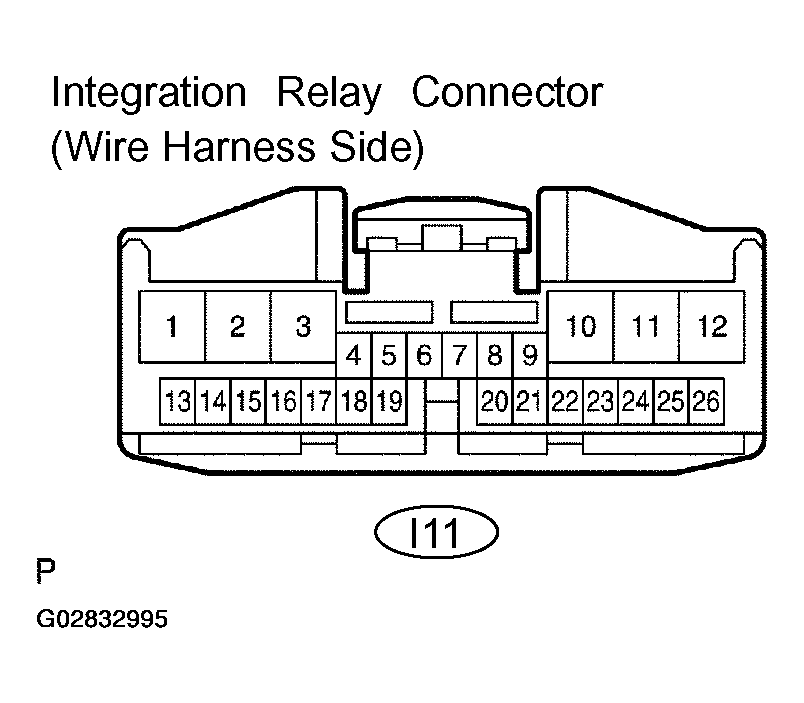

- Disconnect the connector and check the continuity of each terminal of the disconnected connector. See Fig 2.

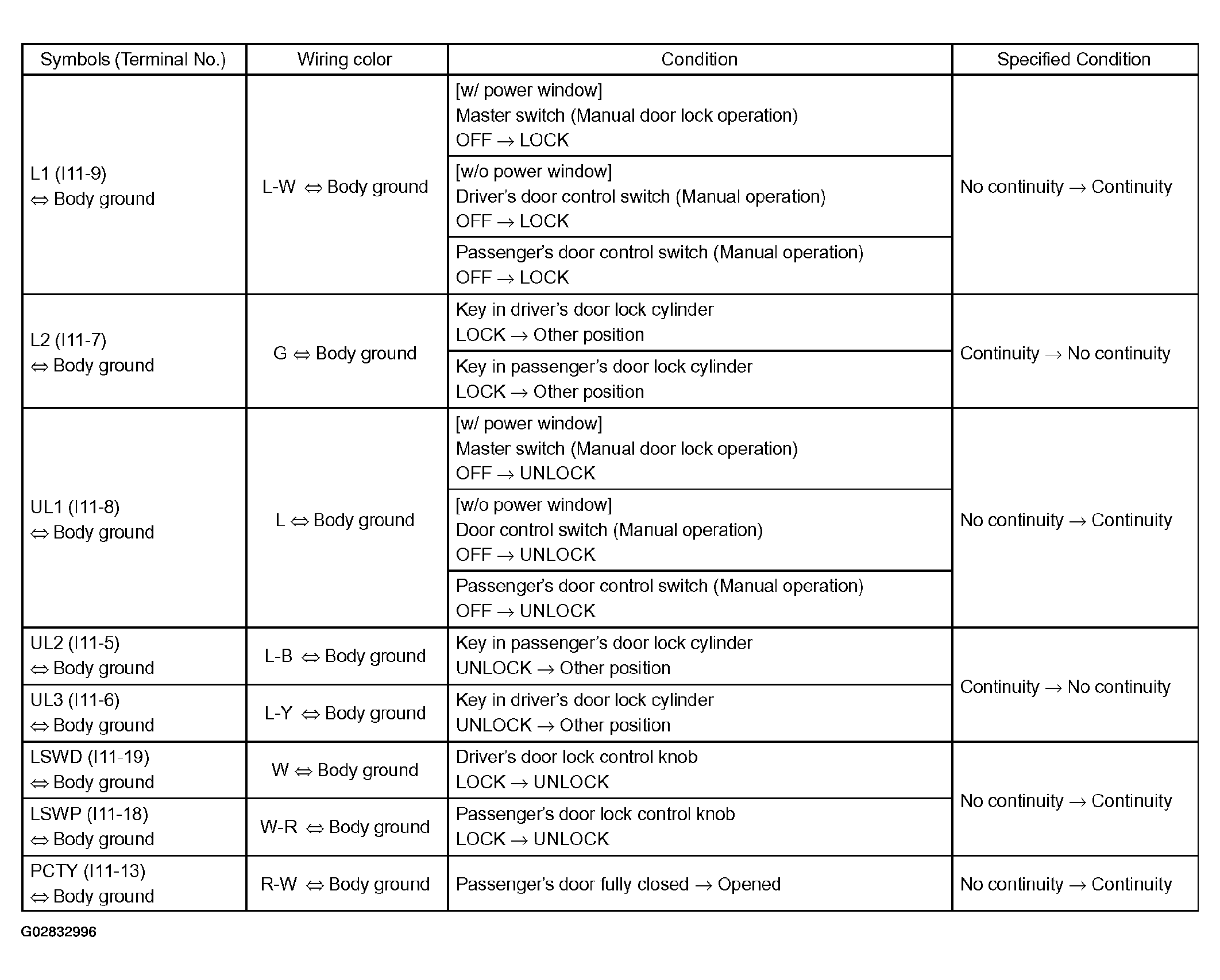

- Reconnect the connector and check each terminal. See TERMINAL WIRING COLOR SPECIFIED CONDITION table.
TERMINAL WIRING COLOR SPECIFIED CONDITIONSymbols (Terminal No.) Wiring color Condition Specified Condition ACTD (111-1) --> Body ground R --> Body ground Key in driver's door lock cylinder OFF --> LOCK OV --> 10 - 14 V --> 1 V or less If the result is not as specified, the integration relay may malfunction.
- INSPECT INSTRUMENT PANEL J/B (INTEGRATION RELAY)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Inspect the DOOR fuse.

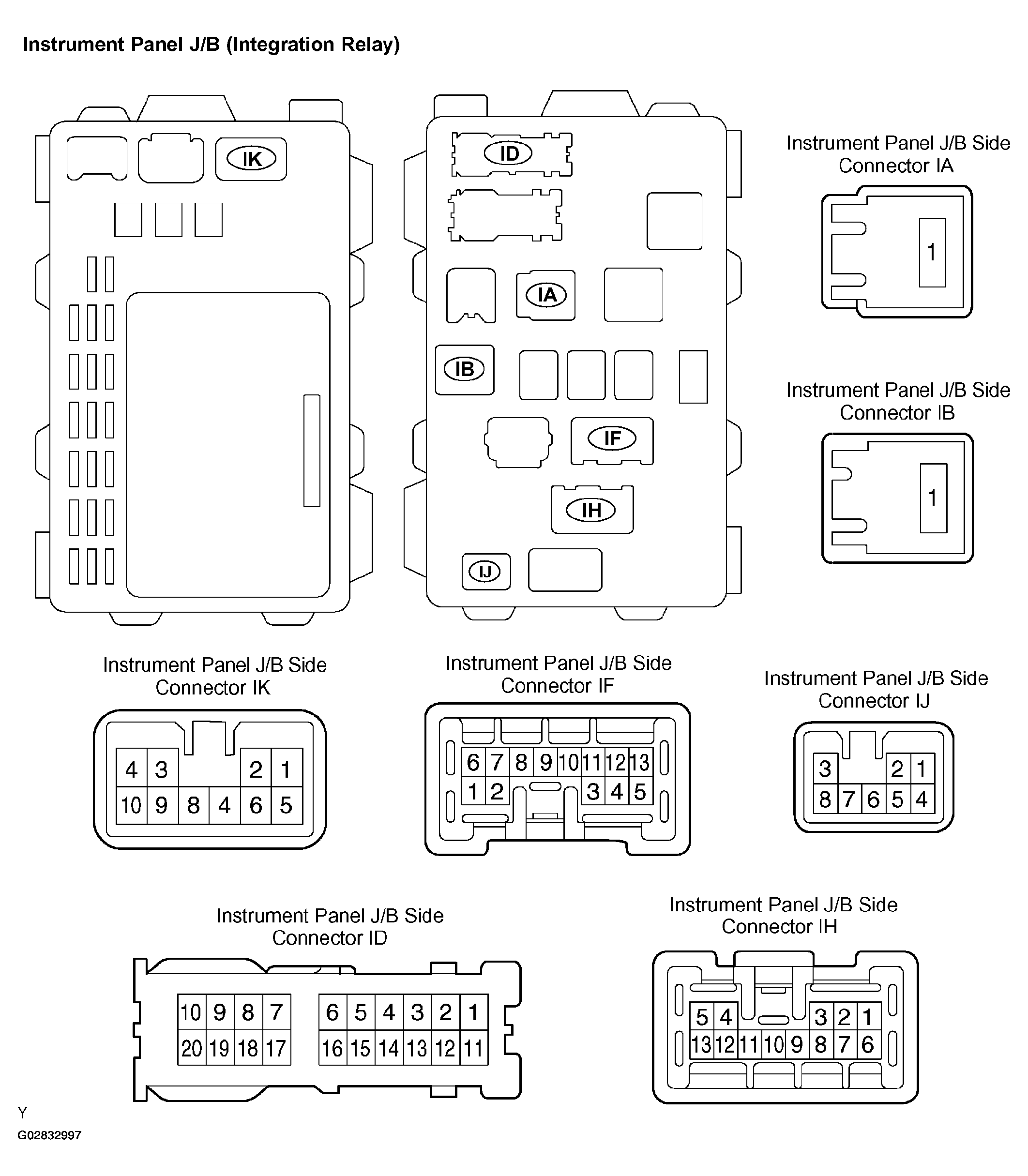

- Disconnect connectors ID, IF, IH and IJ of the instrument panel J/B.

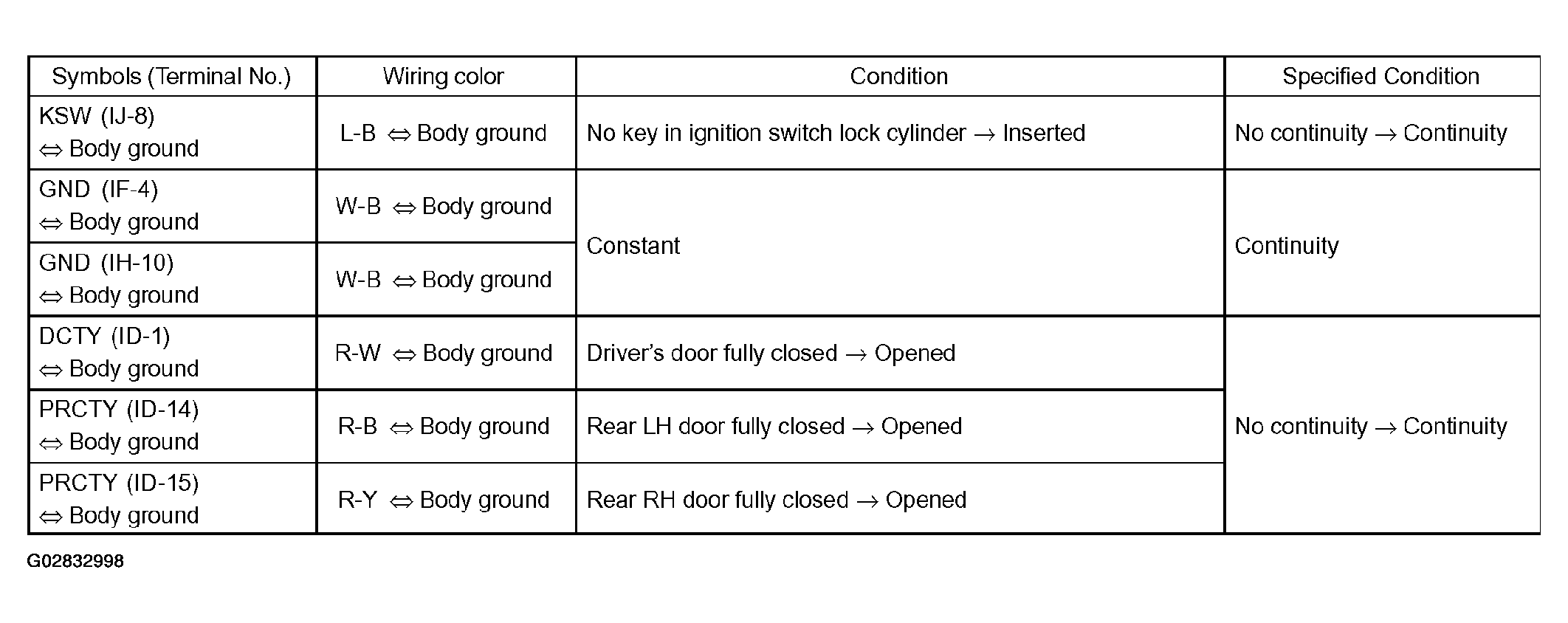

- Check each terminal of the disconnected connectors.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, the vehicle's side may malfunction.

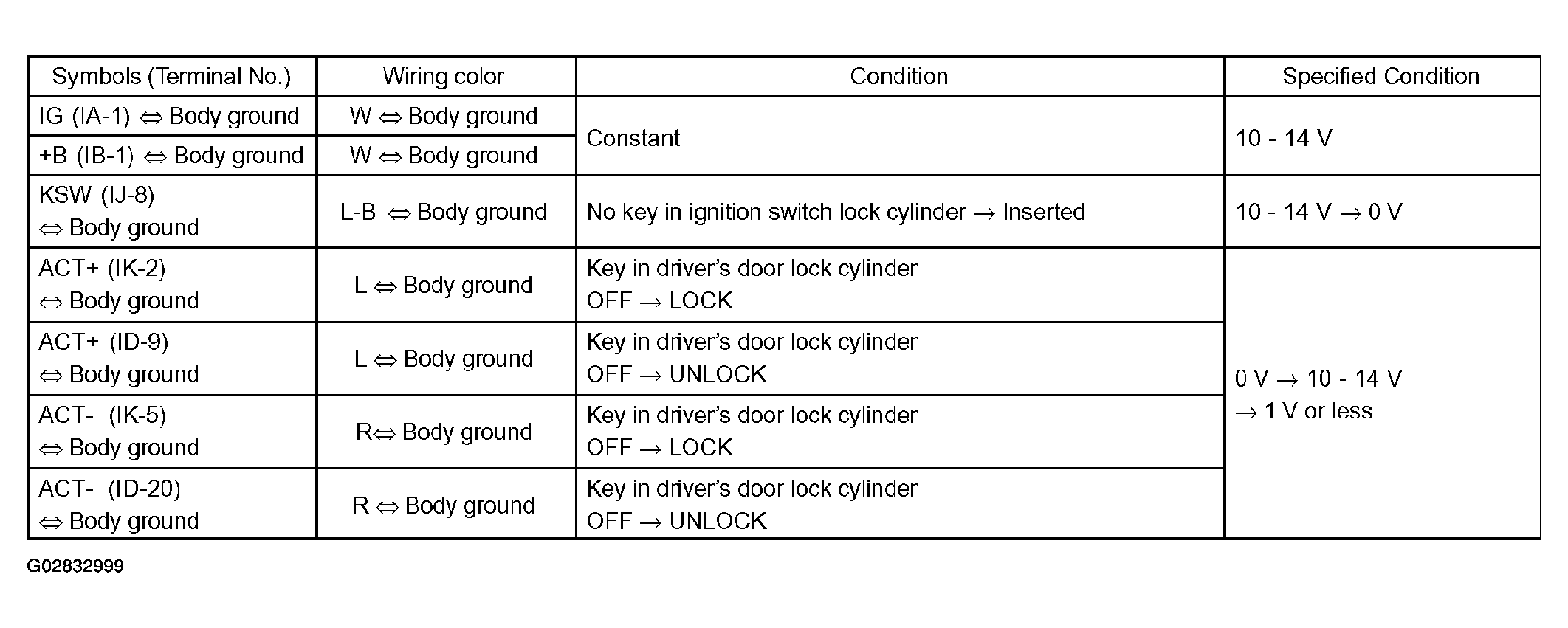

- Reconnect the connectors and check each terminal.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, the instrument panel J/B (integration relay) assembly may malfunction.
