Home >> Toyota >> 2003 >> Corolla LE, Standard >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt >> Rear Seat Belt >> Components

Rear Seat Belt: Components

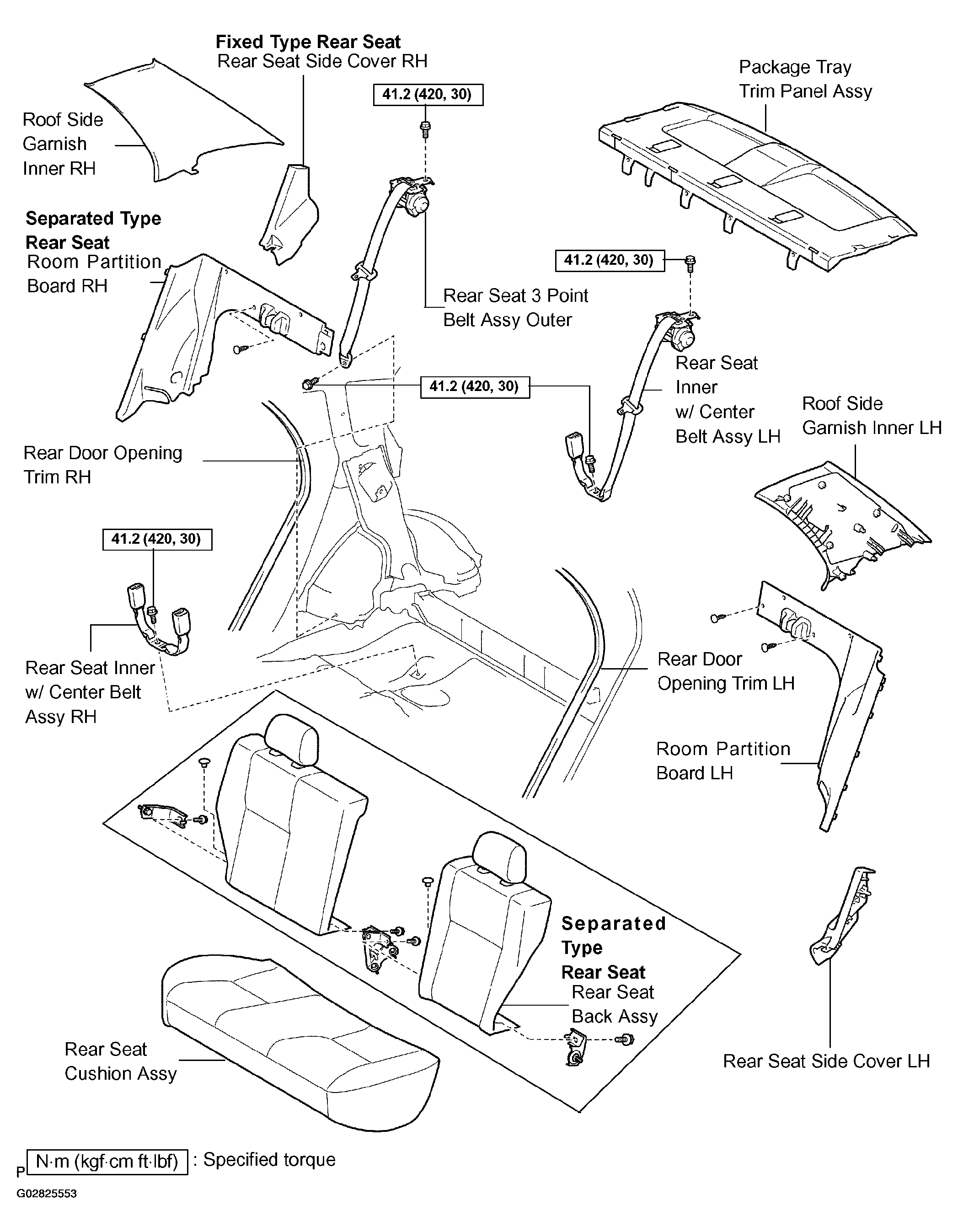

Fig 1: Identifying Rear Seat Components

G02825553

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
