Engine Mechanical Cylinder Block Assembly: Components

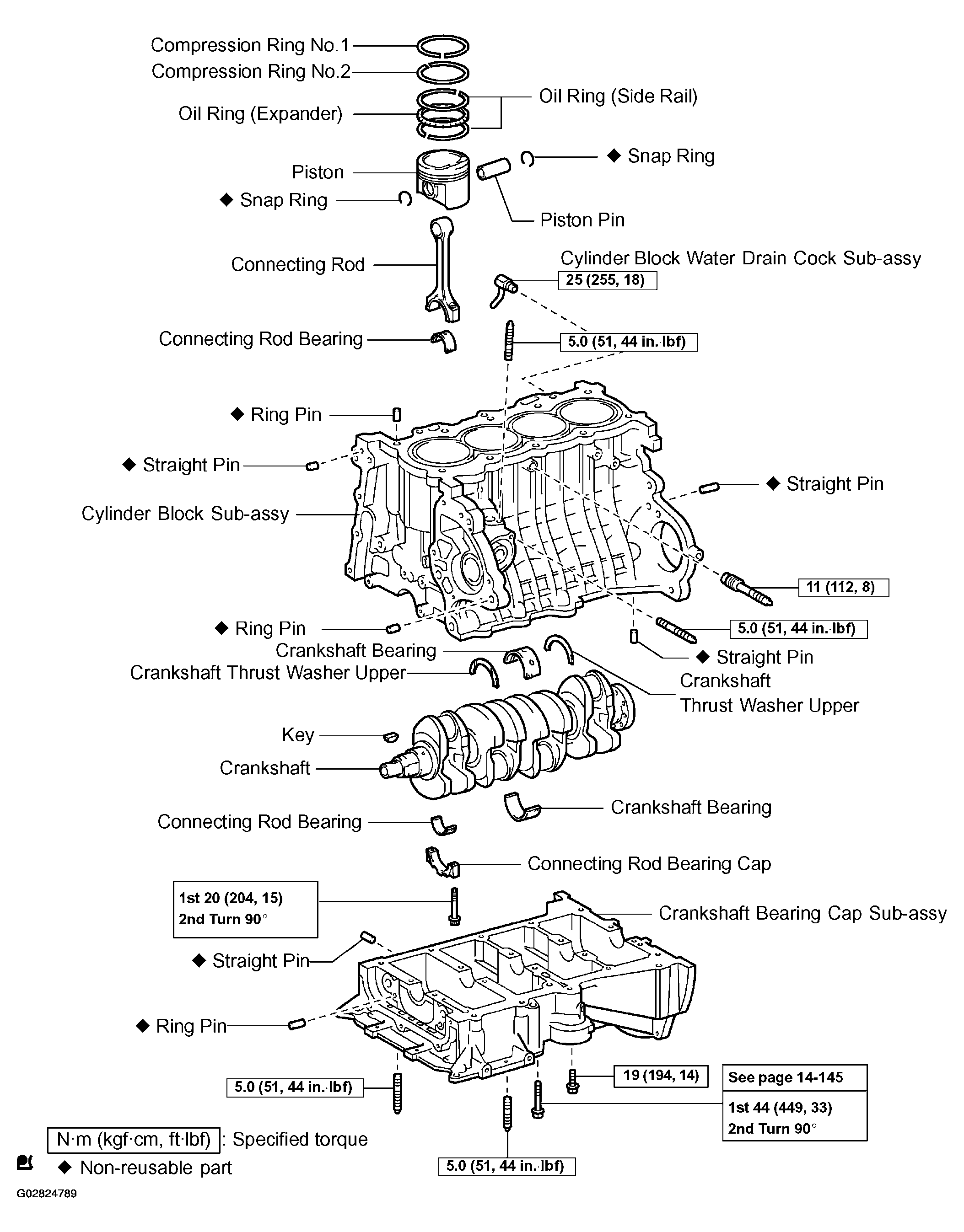

Fig 1: Exploded View Of Cylinder Block Components

G02824789

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
