Rear Door: Adjustment

HINT:

• In the RH side, work in the same procedure as in the LH side.
• Since the centering bolt is used as a door side hinge bolt, the door hinge cannot be adjusted with it on. Substitute the bolt with washer for the centering bolt.

Fig 1: Identifying Centering And Standard Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. INSPECT REAR DOOR PANEL SUB-ASSY LH
   1. Check that the clearance is within the standard value.

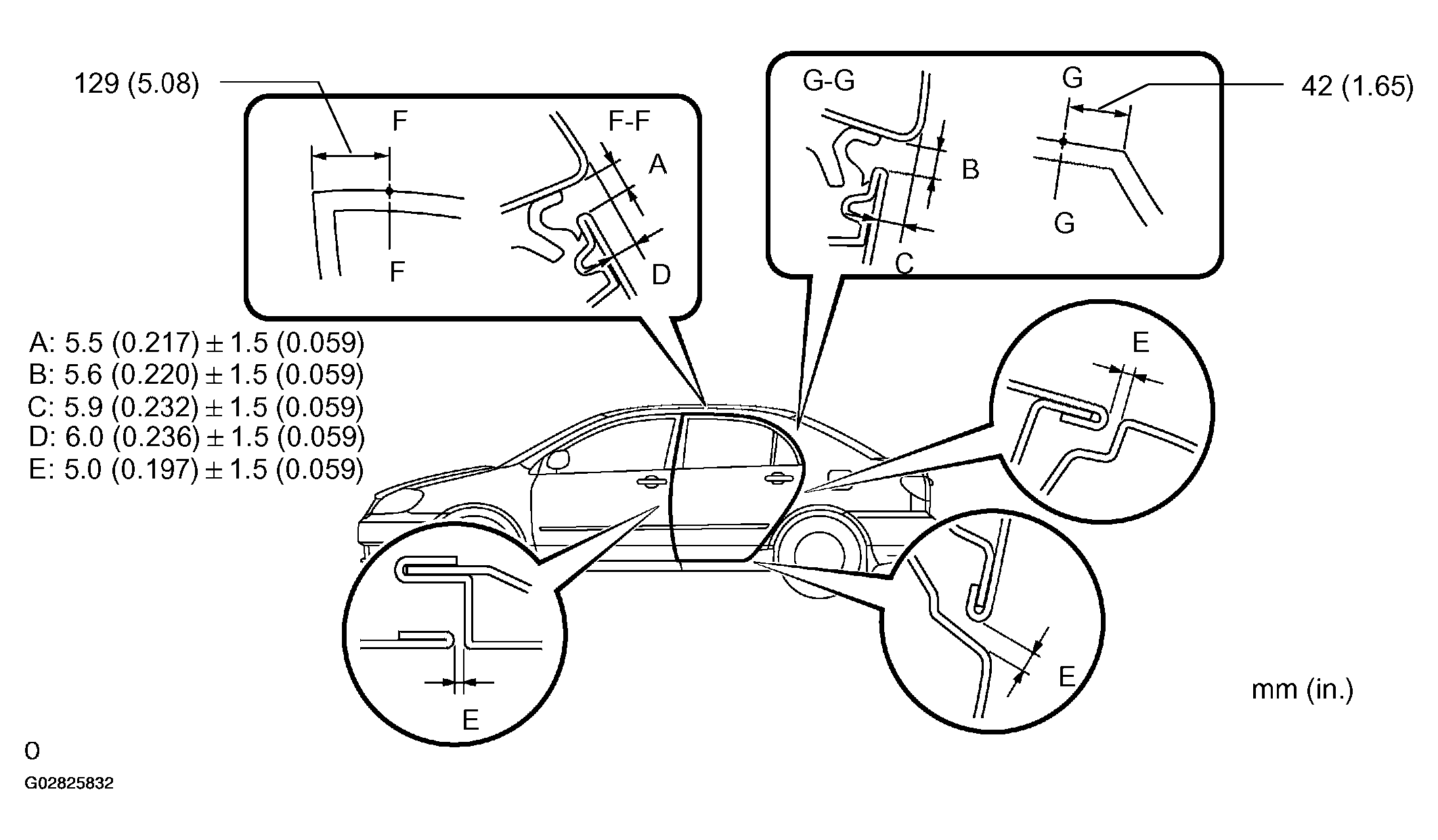

   Fig 2: Checking Rear Door Clearance

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE FRONT DOOR SCUFF PLATE LH (See  ROOF HEADLINING ASSY  )
3. REMOVE REAR DOOR SCUFF PLATE LH (See  ROOF HEADLINING ASSY  )
4. REMOVE FRONT DOOR WEATHERSTRIP LH (See  OVERHAUL  )
5. REMOVE REAR DOOR WEATHERSTRIP LH (See  OVERHAUL   )
6. REMOVE CENTER PILLAR GARNISH LOWER LH (See  ROOF HEADLINING ASSY  )
7. ADJUST REAR DOOR PANEL SUB-ASSY LH
   1. Adjust the door by loosening the body side hinge nuts.

      Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)

      Fig 3: Adjusting Rear Door (1 Of 2)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Adjust the door by loosening the door side hinge bolts.

      Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)

      Fig 4: Adjusting Rear Door (2 Of 2)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Adjust the striker position by slightly loosening the striker mounting screws, and hitting the striker with a plastic hammer.
   4. Tighten the striker mounting screws again.

      Torque: 23 N.m (235 kgf.cm, 17 ft.lbf)

   Fig 5: Adjusting Striker

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
