Audio & Visual System: Components

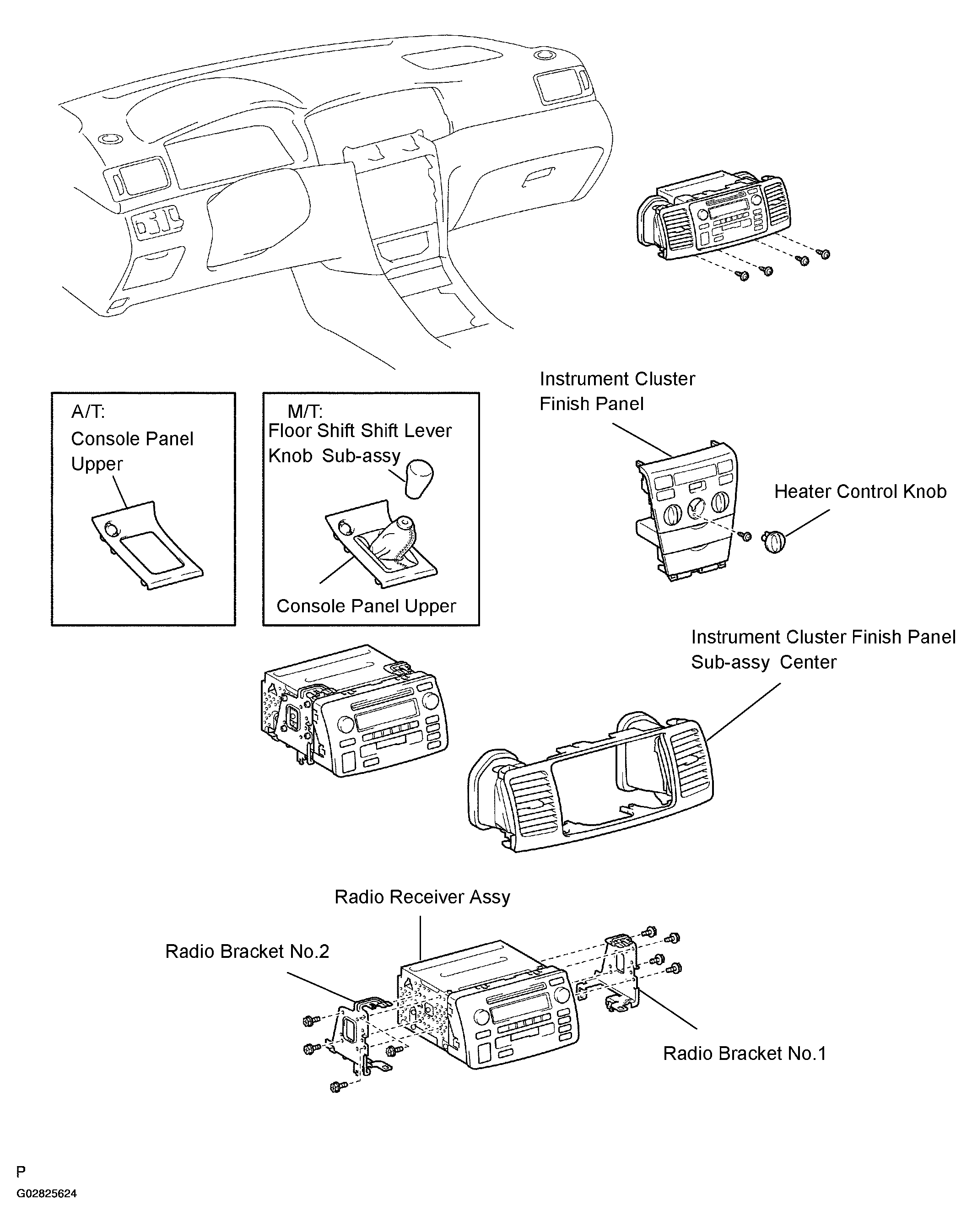

Fig 1: Locating Audio And Visual System Components (1 Of 2)
G02825624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

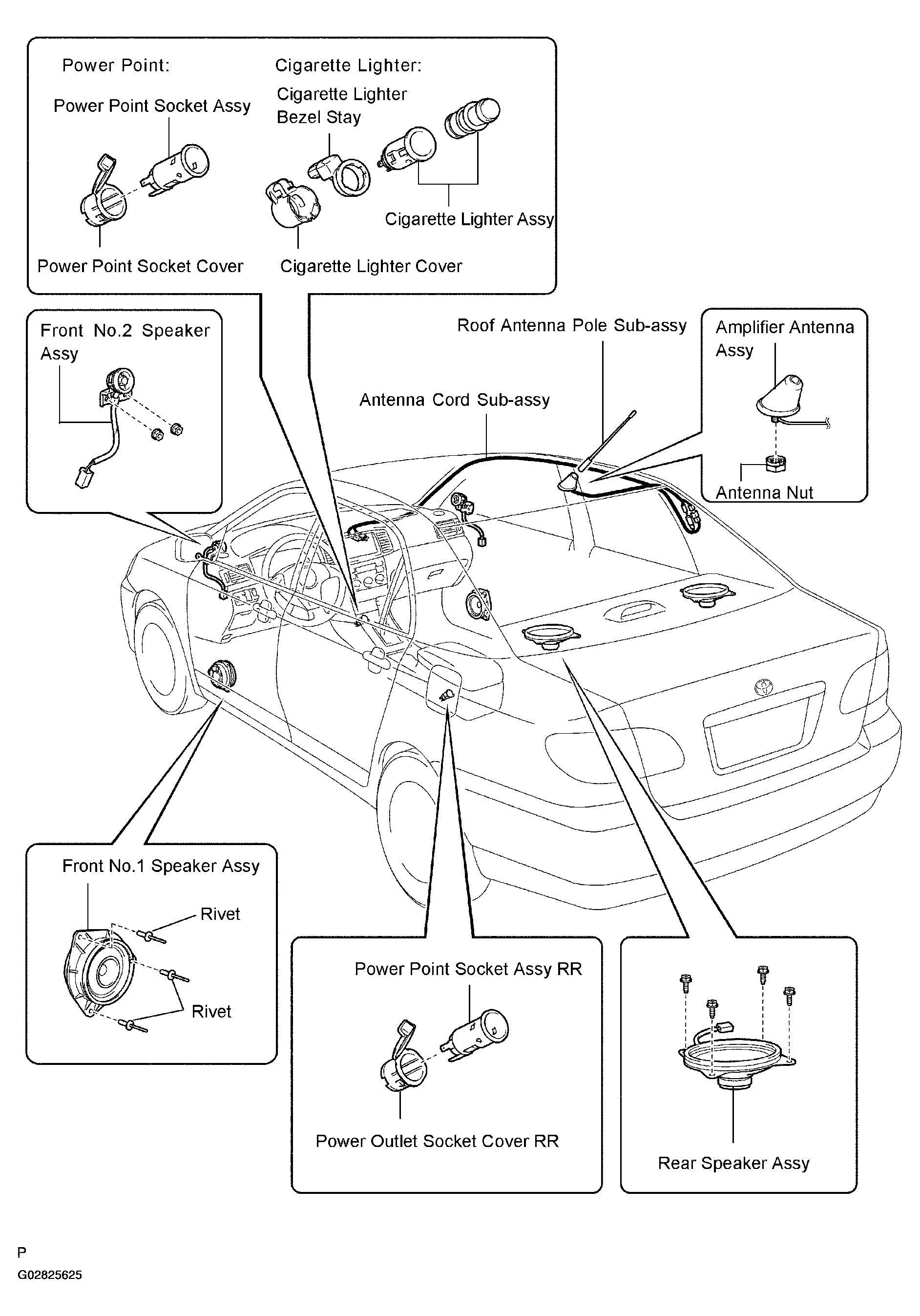

Fig 2: Locating Audio And Visual System Components (2 Of 2)
G02825625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
