Automatic Transmission Floor Shift Parking Lock Cable Assembly: Replacement

PRECAUTION (See )
DISCONNECT BATTERY NEGATIVE TERMINAL
PLACE FRONT WHEELS FACING STRAIGHT AHEAD
REMOVE HORN BUTTON ASSY (See STEERING WHEEL ).
REMOVE STEERING WHEEL ASSY
SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)
REMOVE STEERING COLUMN COVER (See OVERHAUL ).
REMOVE CONSOLE PANEL UPPER (See CONSOLE PANEL UPPER ).
REMOVE PARKING BRAKE HOLE COVER SUB-ASSY (See CONSOLE PANEL UPPER ).
REMOVE CONSOLE BOX CARPET (See PARKING BRAKE HOLE COVER SUB-ASSY ).
REMOVE CONSOLE BOX SUB-ASSY REAR (See CONSOLE BOX SUB-ASSY REAR ).
REMOVE FLOOR SHIFT PARKING LOCK CABLE ASSY
1. Remove the cable end from the lever pin of the floor shift assembly.

  Fig 1: Removing Floor Shift Parking Lock Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, disconnect the parking lock cable from the floor shift assembly.

  Fig 2: Disconnecting Parking Lock Cable From Floor Shift Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the cable clamp.

  Fig 3: Disconnecting The Cable Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Turn the ignition switch ACC or ON.

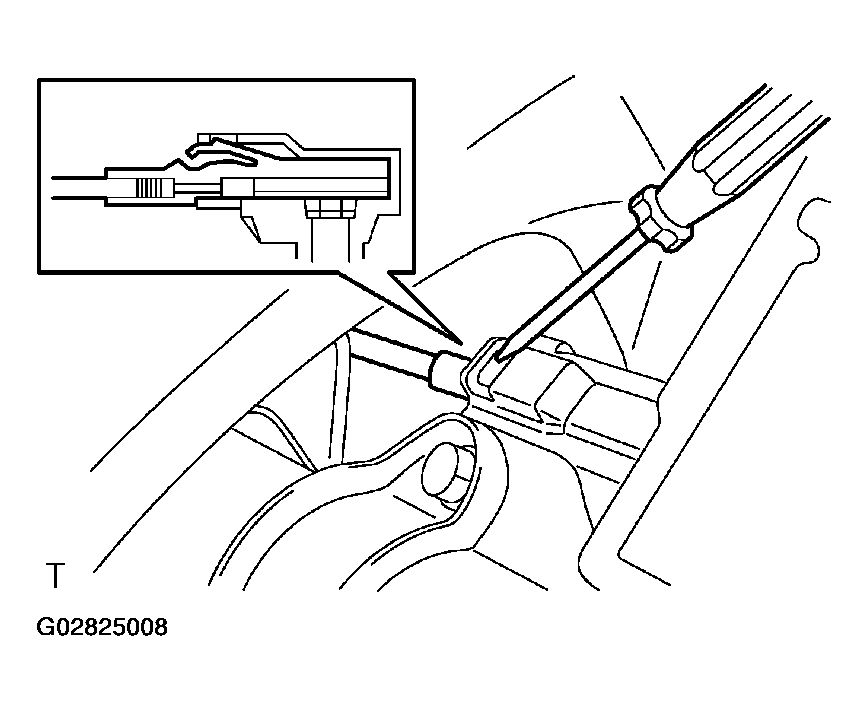

5. Using a screwdriver, remove the cable from the upper bracket.
HINT:

Before disconnecting the cable, keep in mind each of the physical relationship between the connector and wire harness or other cables.

Fig 4: Removing Cable From Upper Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FLOOR SHIFT PARKING LOCK CABLE ASSY
1. Turn the ignition switch ACC or ON.
2. Install the cable to the upper bracket.
  HINT:

  Connect the removed cable so that it will be the same physical relationship you kept in mind before its disconnection.

  Fig 5: Installing Cable To Upper Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the cable clamp.

  Fig 6: Connecting The Cable Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

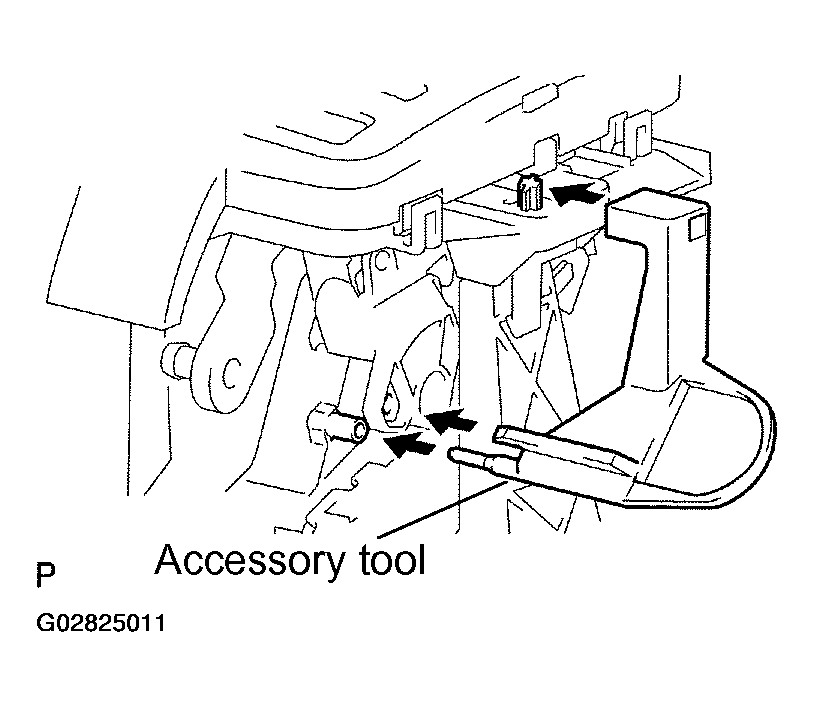

4. Set the accessory tool.
  1. Shift the shift lever to N position and turn the ignition switch to ACC or ON.
  2. Set the accessory tool to the shift lock control unit Assy as shown in the illustration.
  Accessory tool parts No.: 33693-02010

  Fig 7: Setting Accessory Tool To The Shift Lock Control Unit Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Using a screwdriver, unlock the claw of the lock key of automatic adjustment part.

  Fig 8: Locating Claw Of Lock Key
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Insert the slide cap into the through hole and install.

  Fig 9: Installing Slide Cap Into Through Hole
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Insert the lever pin into the hole in the cable end.
  HINT:

  Fit the claws securely.

  Fig 10: Installing Lever Pin Into Hole Of Cable End
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Lock the lock key.
  HINT:

  At this time, the shift lever should be in N position and the ignition key should be set to ACC or ON.
9. Remove the accessory tool.
  Accessory tool parts No.: 33693-02010

  Fig 11: Locking Lock Key
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING WHEEL ASSY
INSPECT STEERING WHEEL CENTER POINT
INSTALL HORN BUTTON ASSY (See STEERING WHEEL ).
INSPECT SRS WARNING LIGHT (See AIR BAG RESTRAINT SYSTEMS ).
CHECK KEY INTERLOCK OPERATION (See ON-VEHICLE INSPECTION ).
