Camry Solara

For Idle Air Control (IAC) system testing procedures, see Fig 1-Fig 2 .

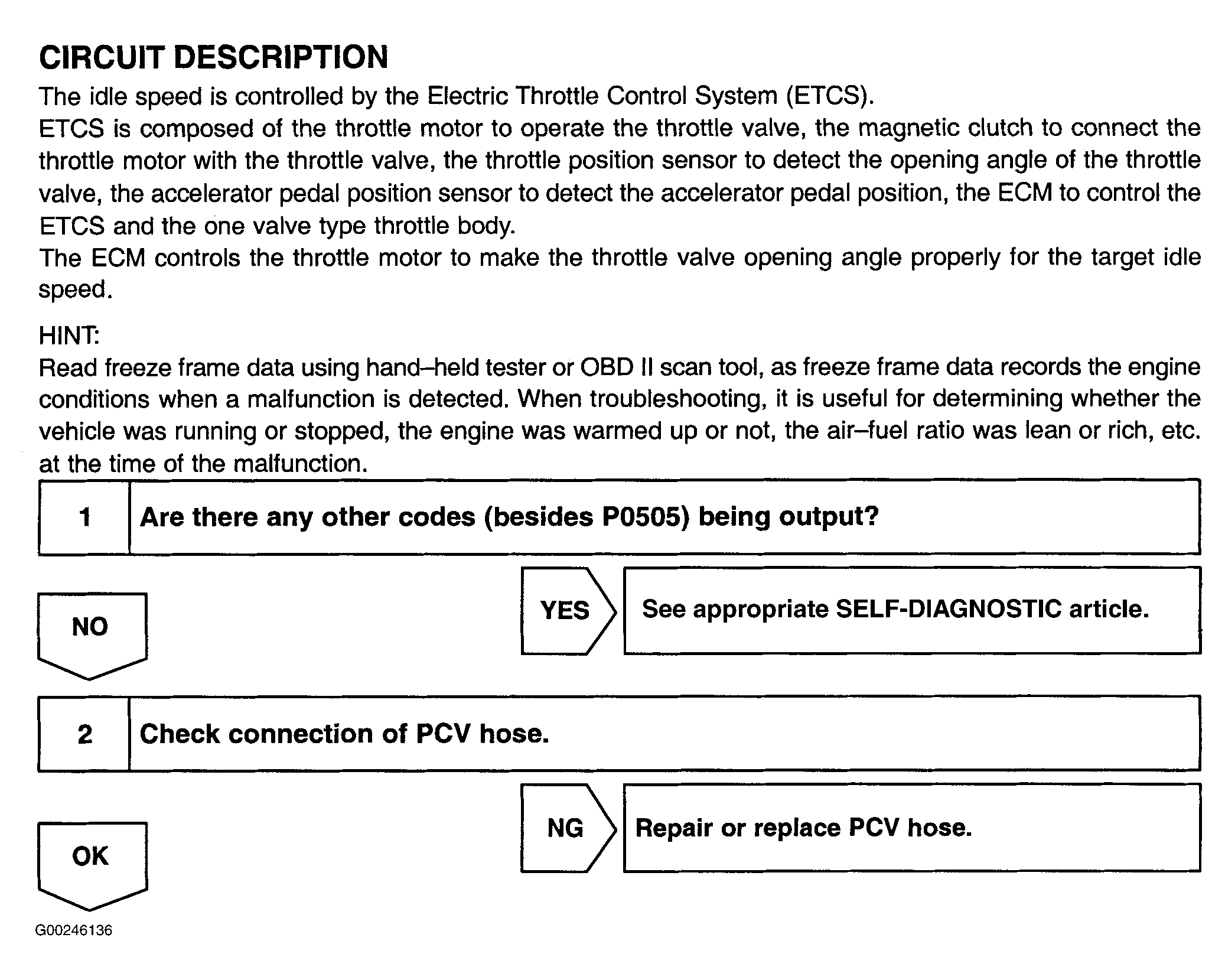

Fig 1: Testing Idle Air Control System - Circuit Description & Steps 1-2 (Camry Solara)
G00246136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

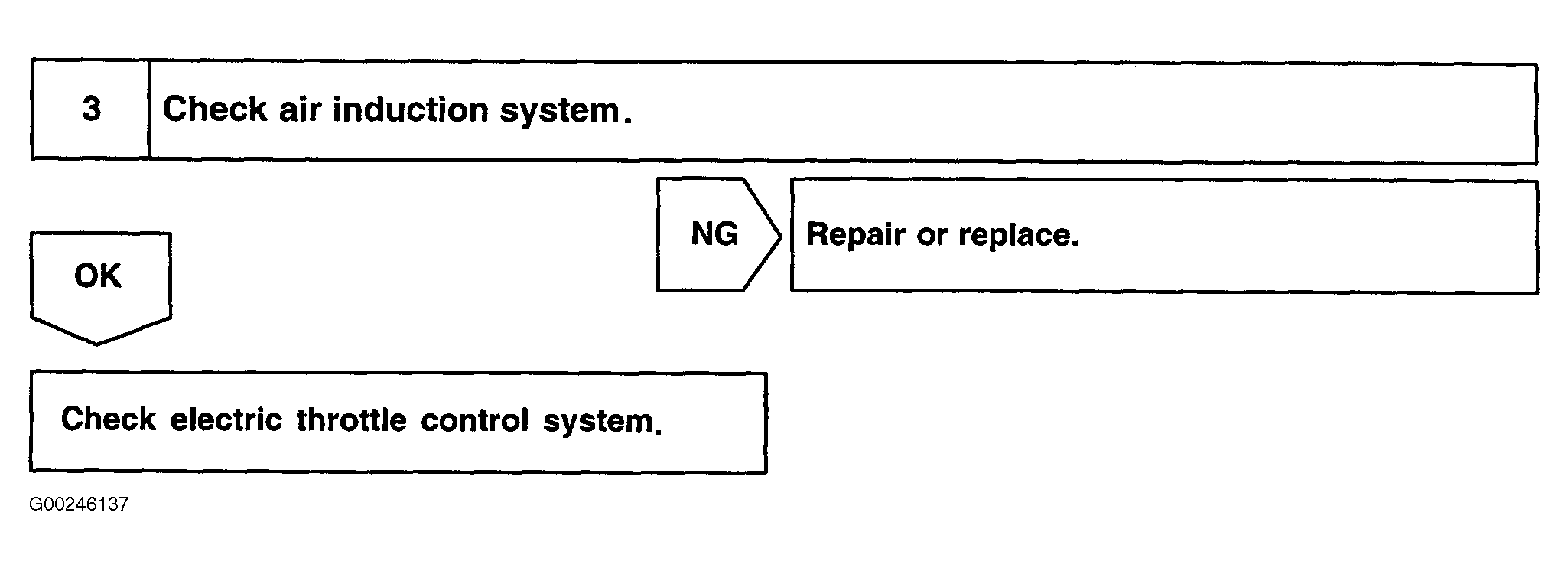

Fig 2: Testing Idle Air Control System - Step 3 (Camry Solara)
G00246137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
