Combination Meter - Diagnostics
>>
Problem Symptoms Chart
Problem Symptoms Chart

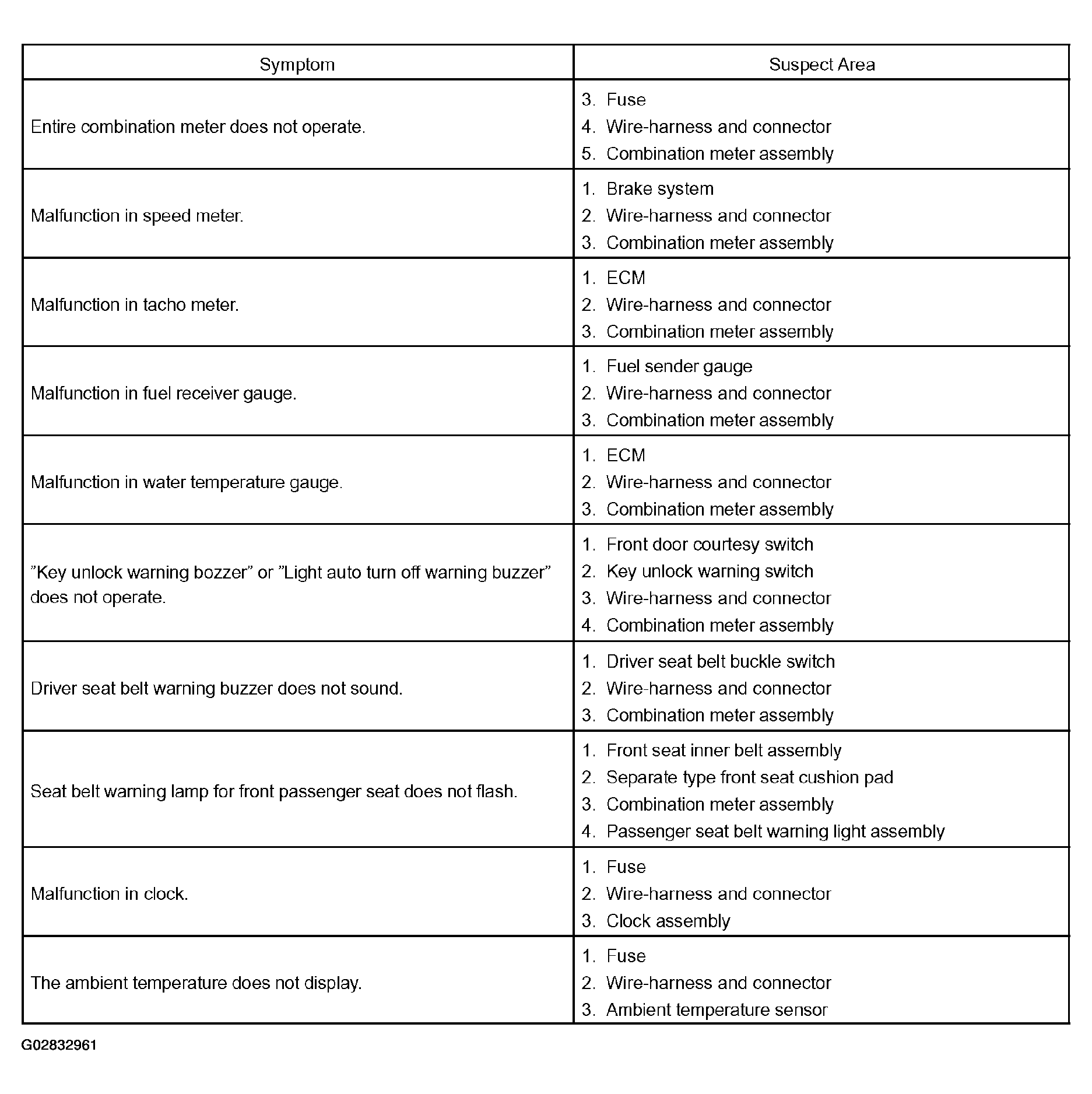

Fig 1: Problem Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
