Problem Symptoms

Troubleshooting of the TVIP system is based on the premise that the door lock control system and wireless door lock control system is operating normally. Accordingly, before troubleshooting the TVIP system, first make certain that the door lock control system and wireless door lock control system is operating normally.

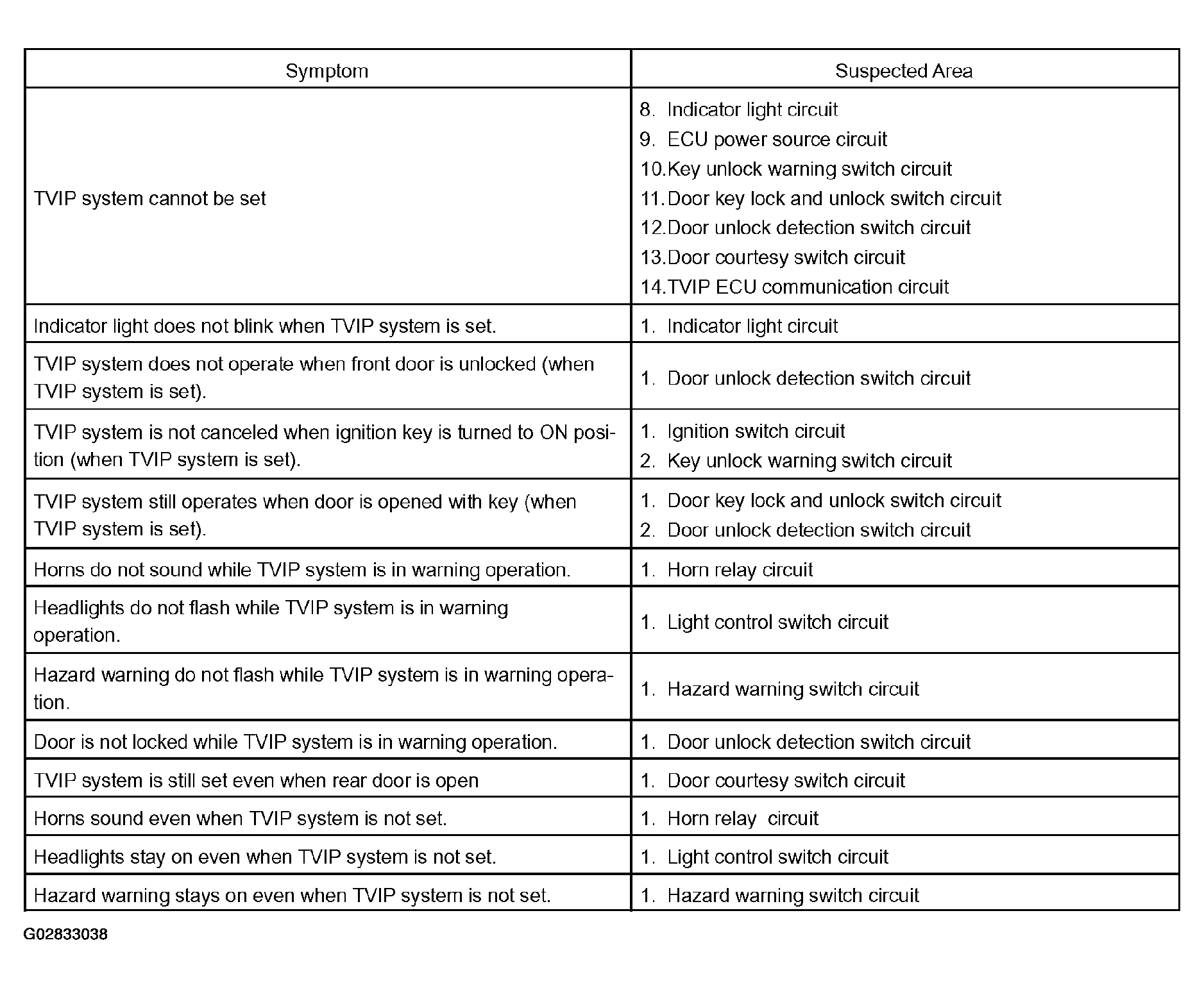

Fig 1: Problem Symptoms
G02833038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
