Abs With EBD System - Diagnostics: Location

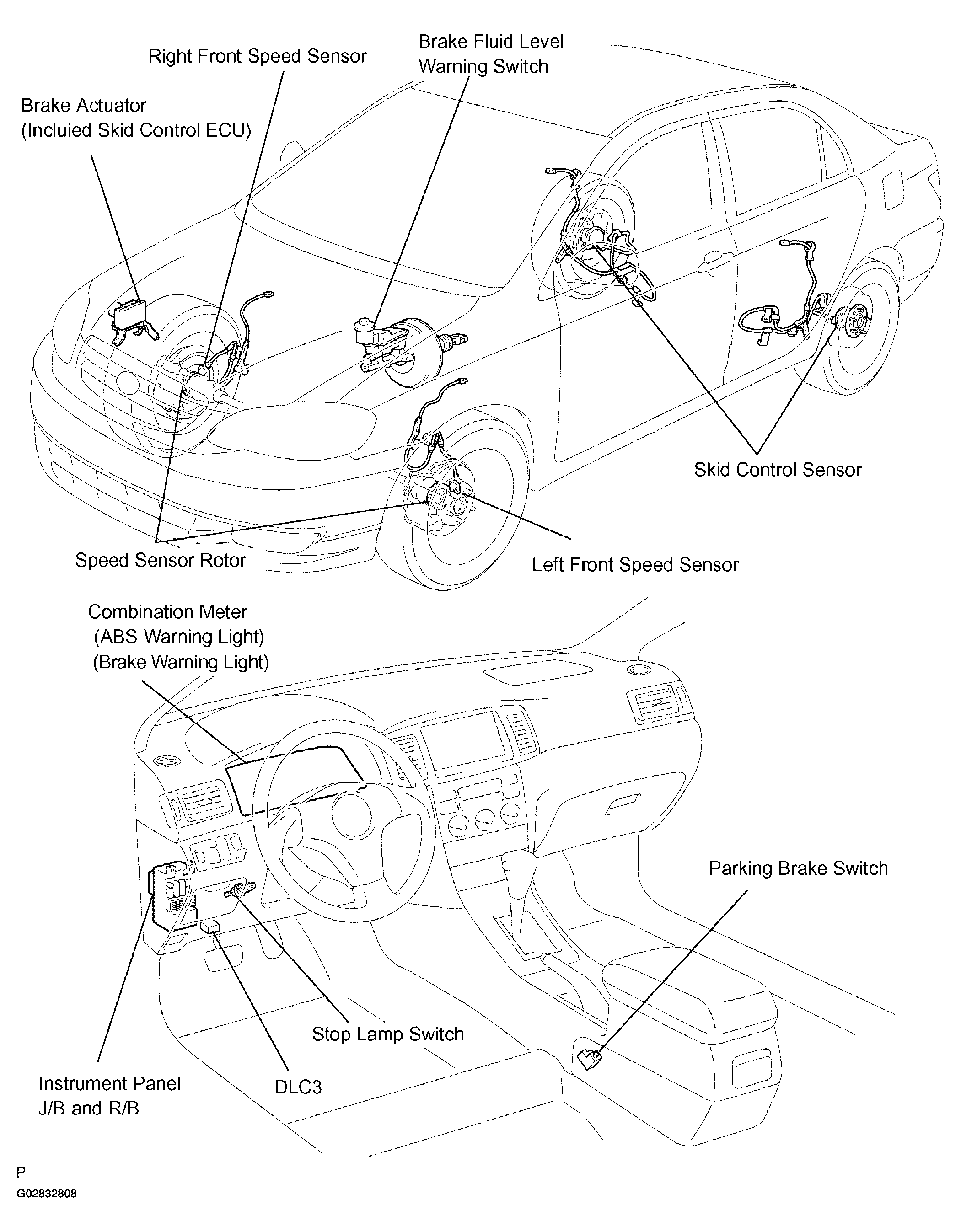

Fig 1: Identifying Components Of ABS With EBD System

G02832808

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
