Transmission Control System Electronic Controlled (ECT) - Diagnostics: Location

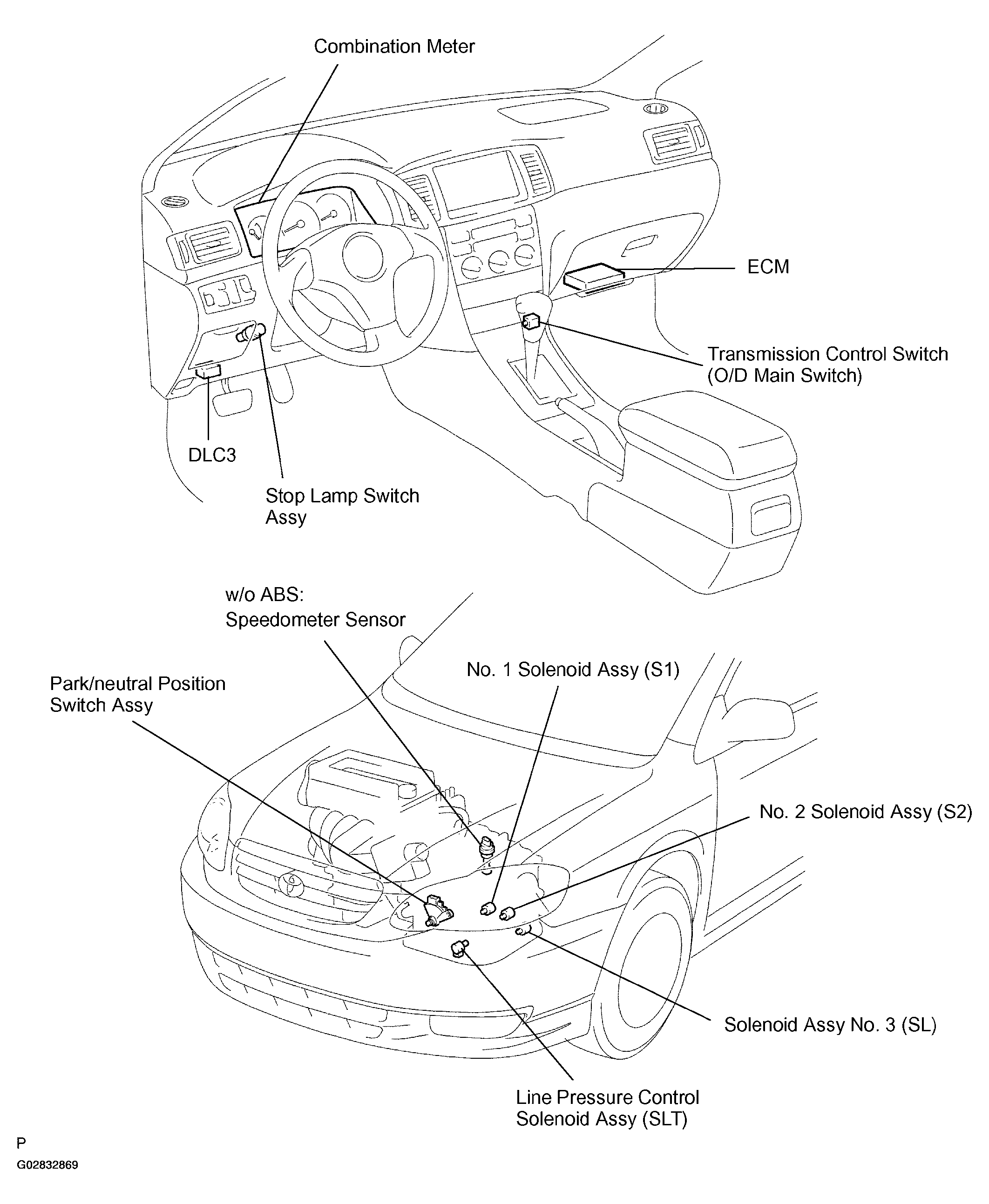

Fig 1: Identifying ECT Components

G02832869

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
