Engine Exhaust Assembly: Components

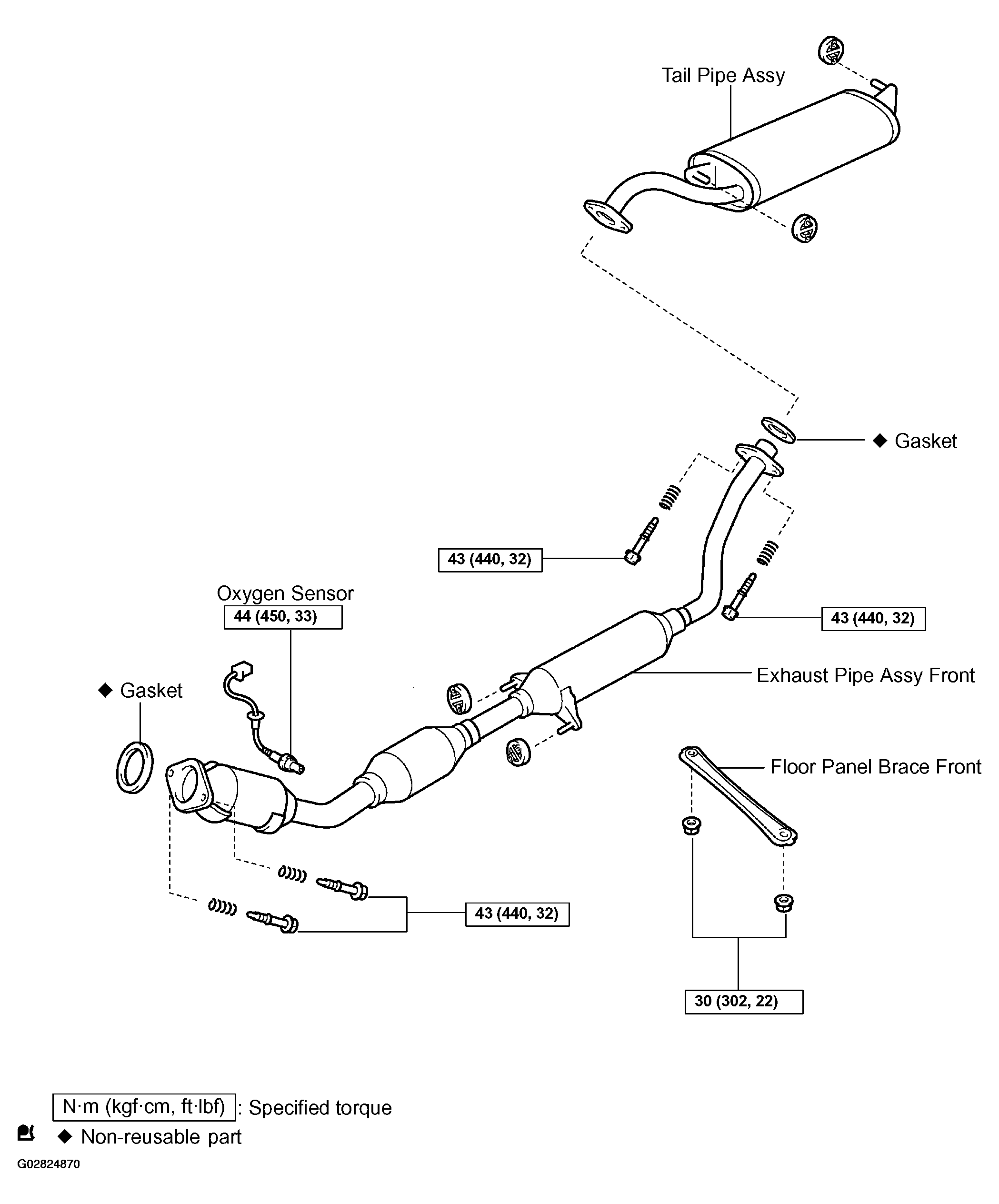

Fig 1: Identifying Exhaust Pipe Components

G02824870

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
