Abs With EBD System - Diagnostics
>>
Terminals Of Ecu
Terminals Of Ecu

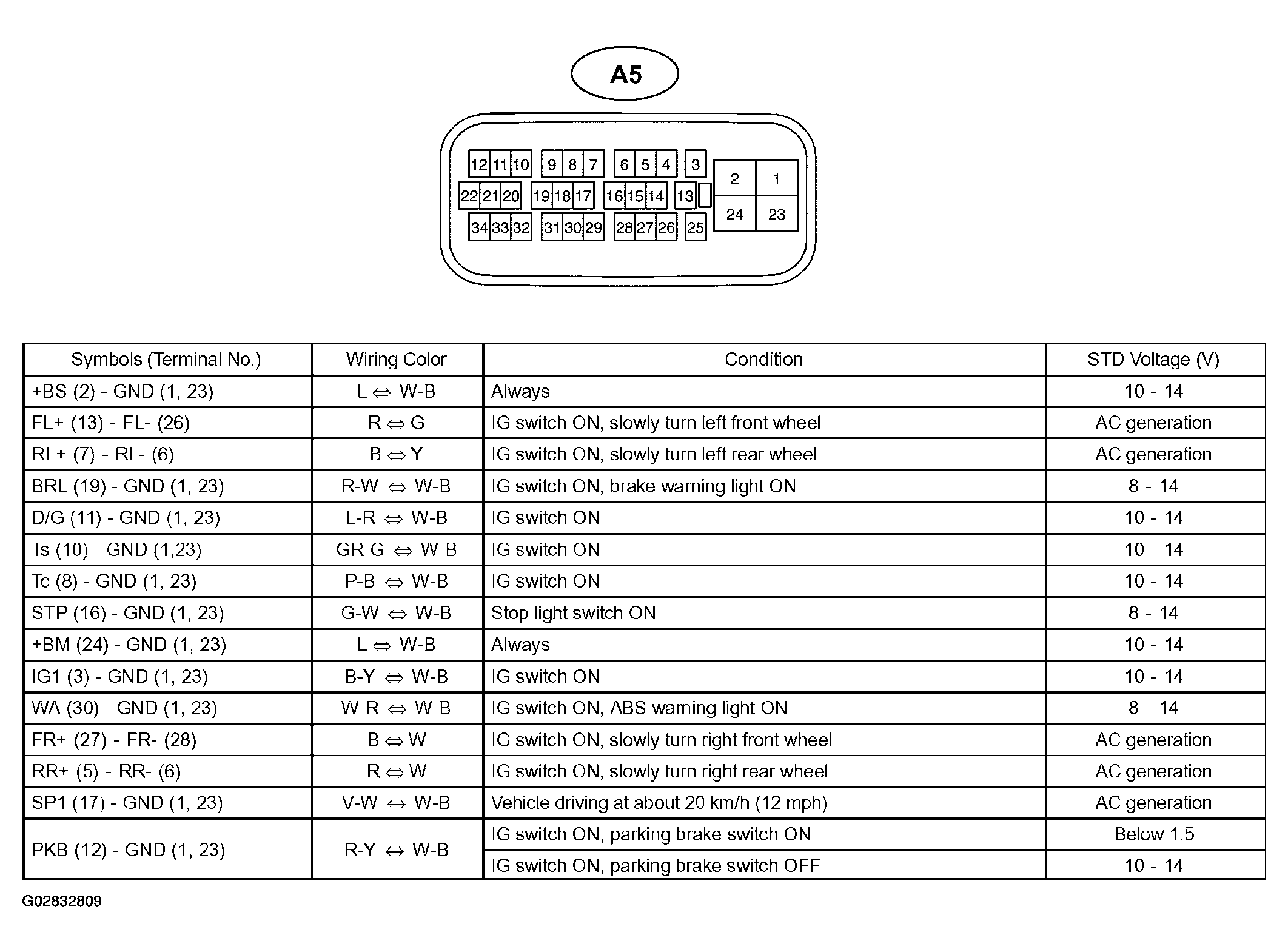

Fig 1: Locating ECU Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
