Rear Wheel Alignment: Inspection

Measure Vehicle Height (See INSPECTION )
Install Camber-Caster-Kingpin Gauge Or Position Vehicle On Wheel Alignment Tester
Follow the specific instructions of the equipment manufacturer.

Inspect Camber

CAMBER INSPECTION REFERENCE

Procedure	Specifications
Camber	-1 °11' +/- 45' (-1.18° +/- 0.75°)
Right-Left Error	45' (0.75°) or less

If the camber is not within the specified value, after the toe-in is inspected, see step 5 to adjust.

Inspect Toe-In

Fig 1: Inspecting Toe-In

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TOE-IN INSPECTION REFERENCE

Procedure	Specification
Toe-In	A + B: 0°18' +/- 12' (0.3° +/- 0.2°)
(Total)	C - D: 3 +/- 2 mm (0.12 +/- 0.08 in.)

If the toe-in is not within the specified value, see step 5 to adjust.

Adjust Camber And Toe-In
1. Measure the distance from the LH lower suspension arm bracket set bolt to the RH axle carrier rear side set bolt as shown in the illustration.

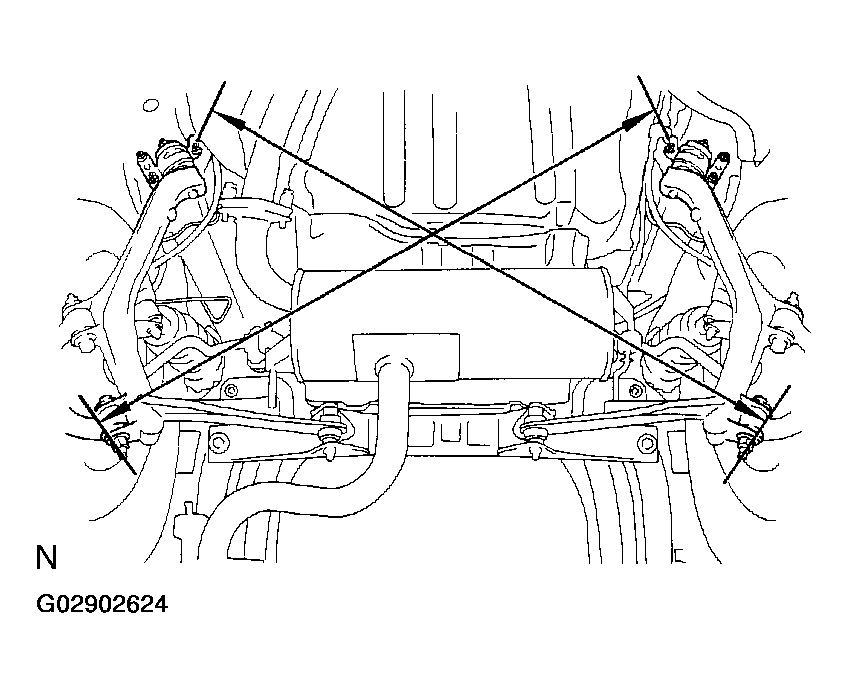

  Fig 2: Measuring For Differences In Suspension Length
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Employ the same manner to the RH-LH.
  Length difference: 6 mm or less

  If it exceeds the specified value, adjust it by turning the adjusting cams.
3. Loosen the upper and lower arm adjusting cam set nuts.
4. Adjust the camber and toe-in by turning the adjusting cams.

  Fig 3: Using Adjusting Cams To Make Adjustments
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Try to adjust the camber and toe-in to the center of the specified values.
5. Torque the upper and lower arm adjusting cam set nuts.
  Torque: 74 N m (755 kgf cm, 55 ft lbf)
How To Read Adjustment Chart (Example)
1. Measure the present alignment.
  Example:

  Camber (RH): -0°26' (-0.43°)

  Camber (LH): -1°56' (-1.93°)

  Toe-in (total): IN 7 mm (0.28 in.)
2. Mark the difference between the standard value (A) and the measured value (B) on the adjustment chart.

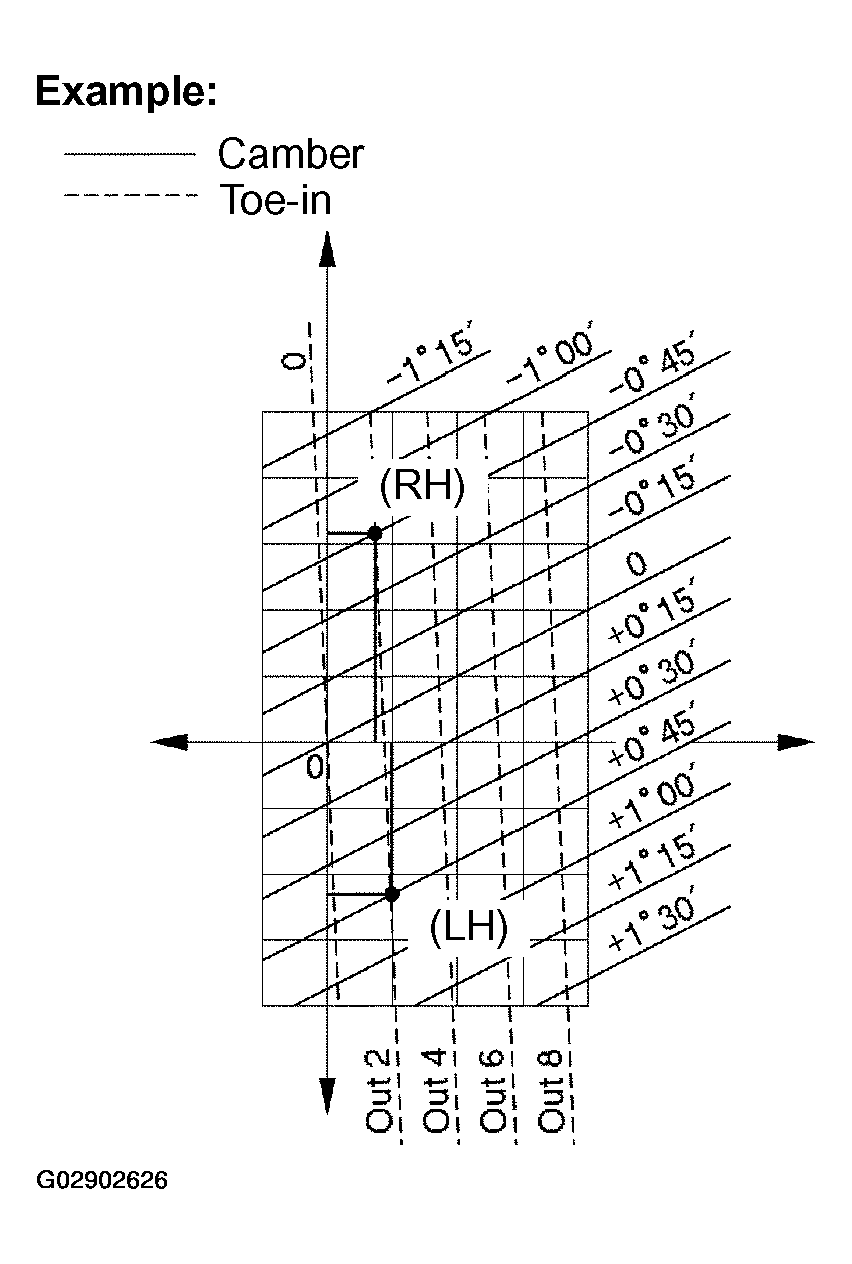

  Fig 4: Camber & Toe-In Adjustment Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard value:

  Camber: -1°11' (-1.18°)

  Toe-in (total): IN 3 mm (0.12 in.)

  Formula: A - B = C

  Camber (RH): -1°11' - (-0°26') = -0°45'

  Camber (LH): -1°11' - (-1°56') = 0°45'

  Toe-in (total): IN3 - IN7 = OUT 4

  Toe-in (each side): OUT 2
3. As shown in the example chart, read the distance from the marked point to the origin of the chart, and adjust the upper and/or lower arm adjusting cams accordingly

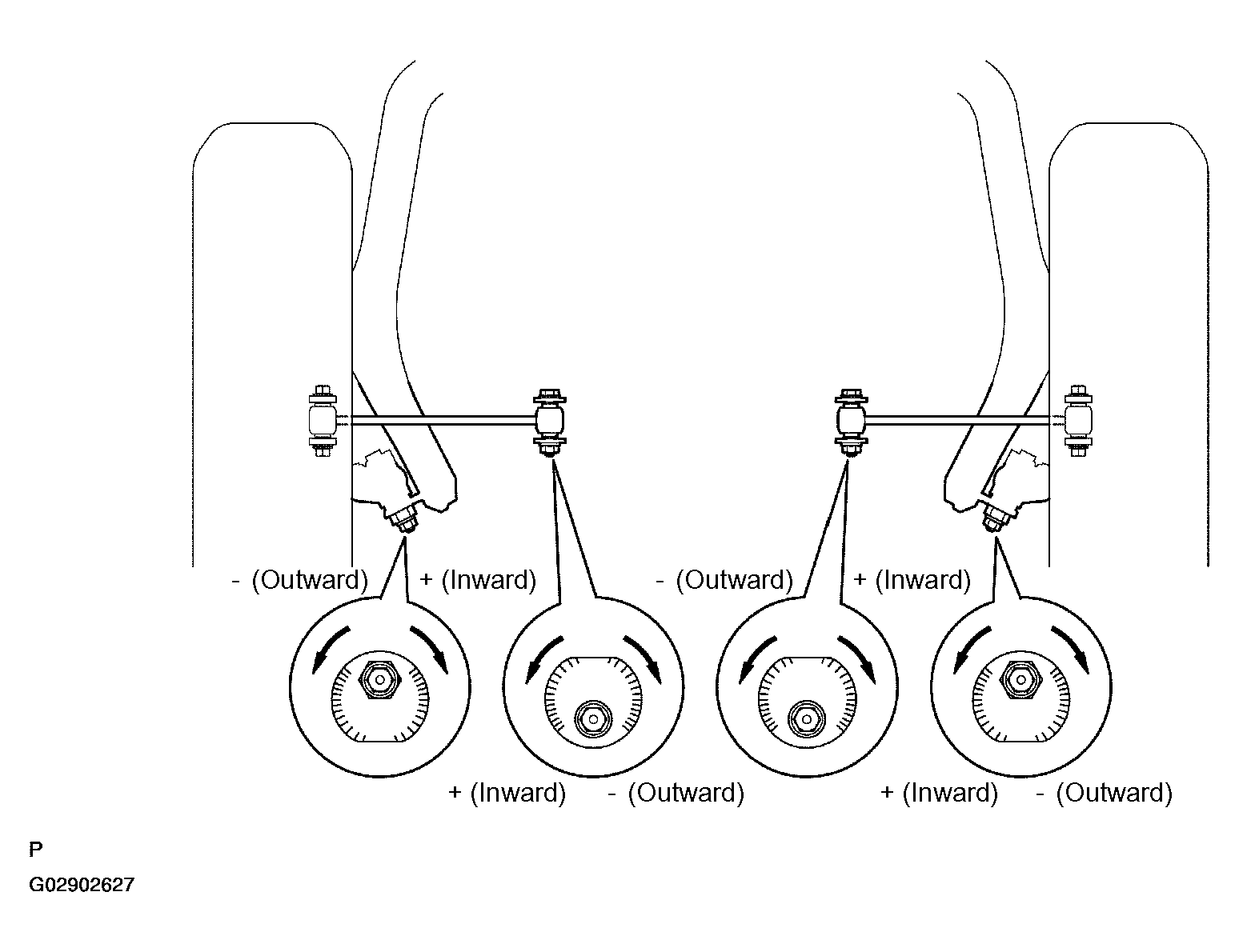

  Fig 5: Adjusting Upper & Lower Arm Adjusting Cams
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Amount to turn adjusting cams (by graduation):

  Upper arm cam (RH): + (Inward) 3.2

  Lower arm cam (RH): + (Inward) 0.8

  Upper arm cam (LH): - (Outward) 2.3

  Lower arm cam (LH): + (Inward) 1.0

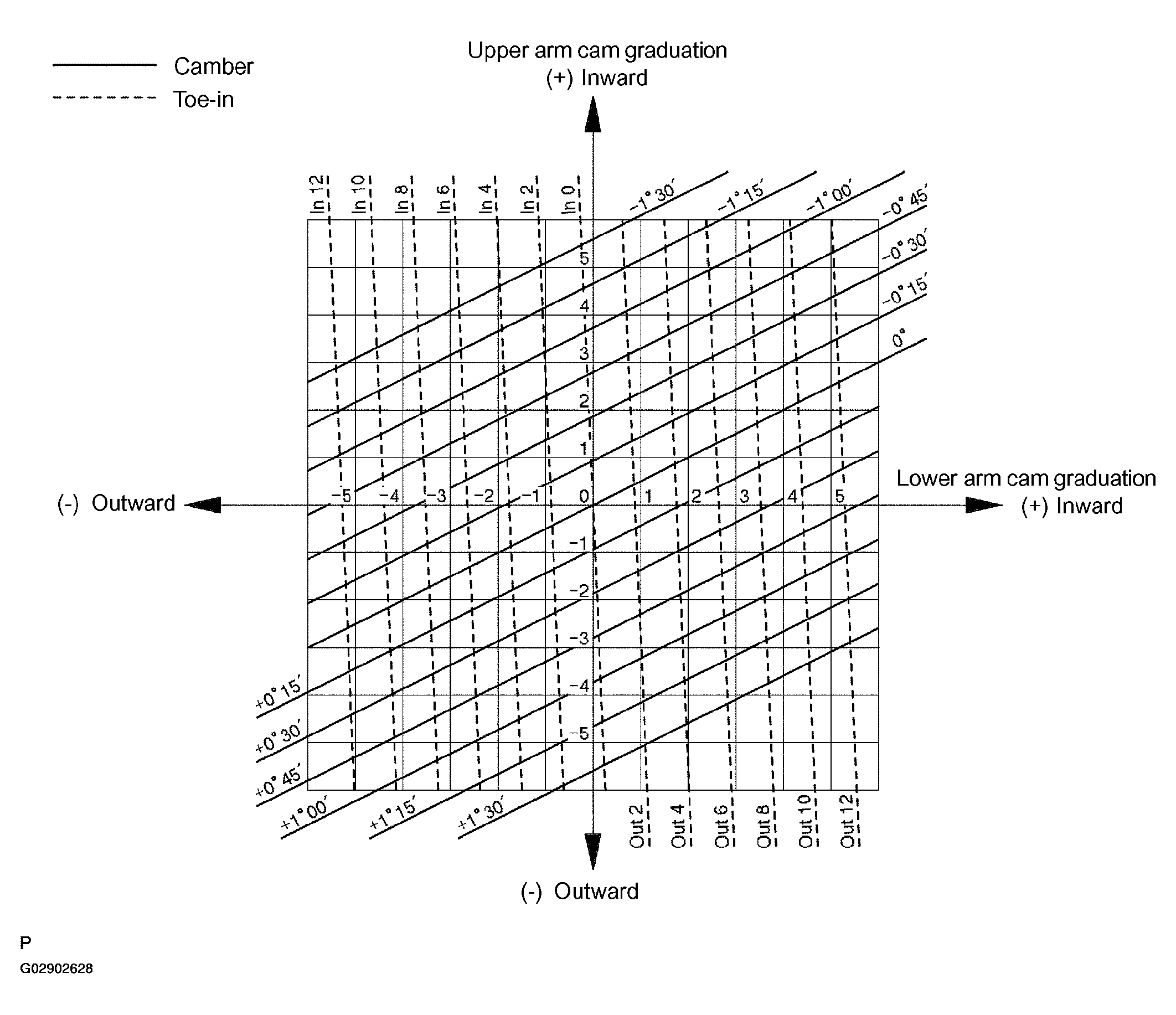

Fig 6: Adjustment Reference Chart
