Engine Lubrication System: Reassembly

1. Install Drive And Driven Rotors
   1. Place the drive and driven rotors into pump body with the marks facing the pump body cover side.

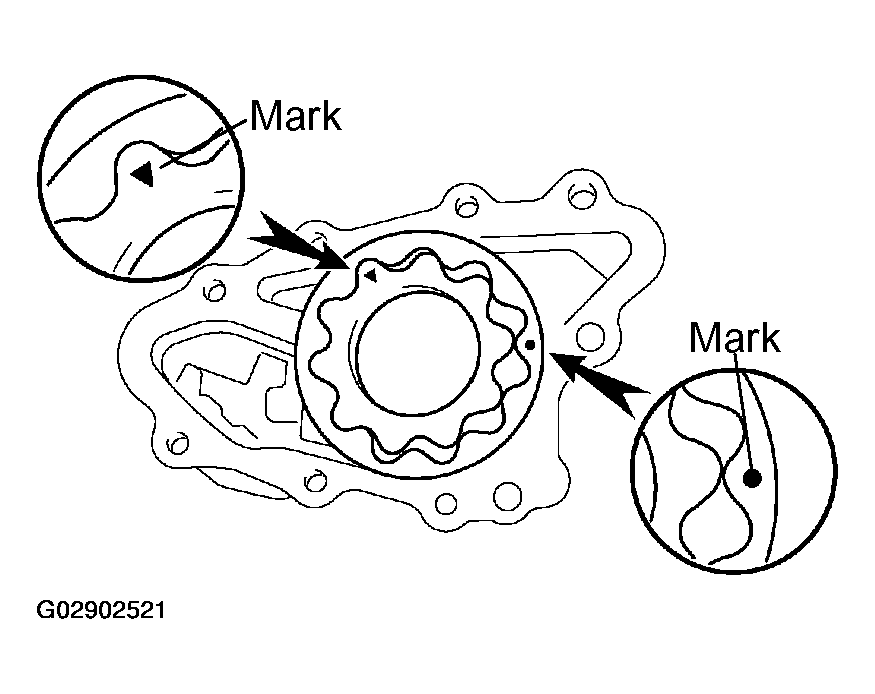

      Fig 1: Identifying Marks On Drive & Driven Rotors

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. 1ZZ-FE:

      Install the pump body cover with the 3 screws.

      Torque: 10.5 N.m (107 kgf.cm, 8 ft.lbf)

   3. 2ZZ-GE:

      Install the pump body cover with the 5 screws.

      Torque: 10.5 N.m (107 kgf.cm, 8 ft.lbf)

2. Install Relief Valve

Insert the relief valve and spring into the pump body hole, and install the plug.

Torque:

1ZZ-FE: 37 N.m (375 kgf.cm, 27 ft.lbf)

2ZZ-GE: 49 N.m (500 kgf.cm, 36 ft.lbf)
