Engine Lubrication System: Installation

Install Oil Pump
1. Place a new gasket on the cylinder block.

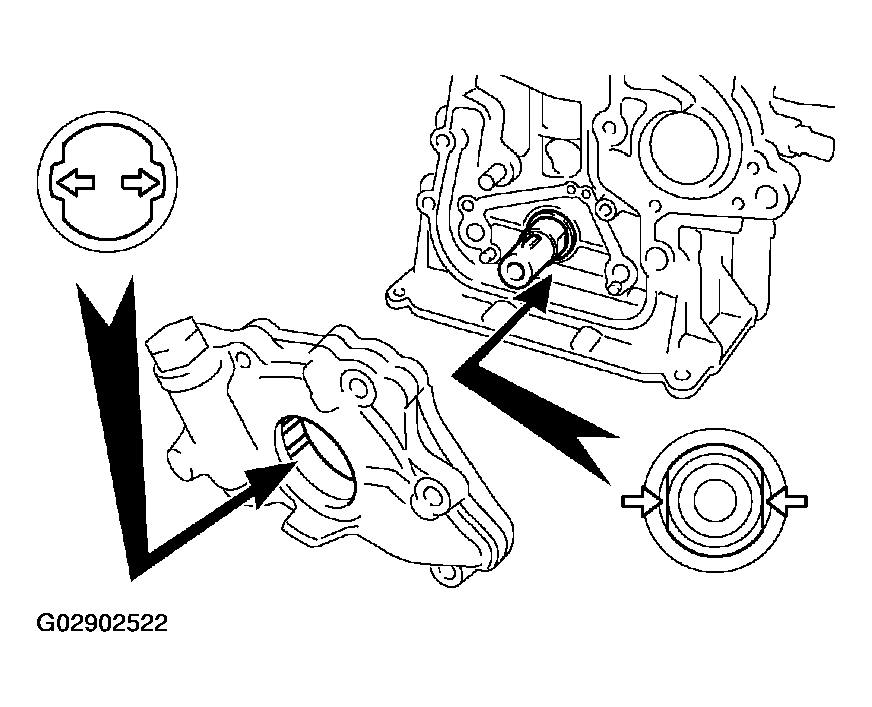

2. Engage the spline teeth of the oil pump drive rotor with the large teeth of the crankshaft, and slide the oil pump.
3. Install the oil pump with the 5 bolts.

  Fig 1: Installing Oil Pump & Components
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 9.0 N.m (92 kgf.cm, 80 in..lbf)
Install Crankshaft Timing Sprocket And Timing Chain (See TIMING CHAIN )
Fill Engine With Oil
Start Engine And Check For Leaks
Recheck Engine Oil Level

Install Oil Nozzle (With Relief Valve)
Using a 5 mm hexagon wrench, install the oil nozzle with the bolt.

Fig 1: Using 5 mm Hexagon Wrench To Install Oil Nozzle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 9.0 N.m (92 kgf.cm, 80 in..lbf)
Install Crankshaft (See CRANKSHAFT )
