Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

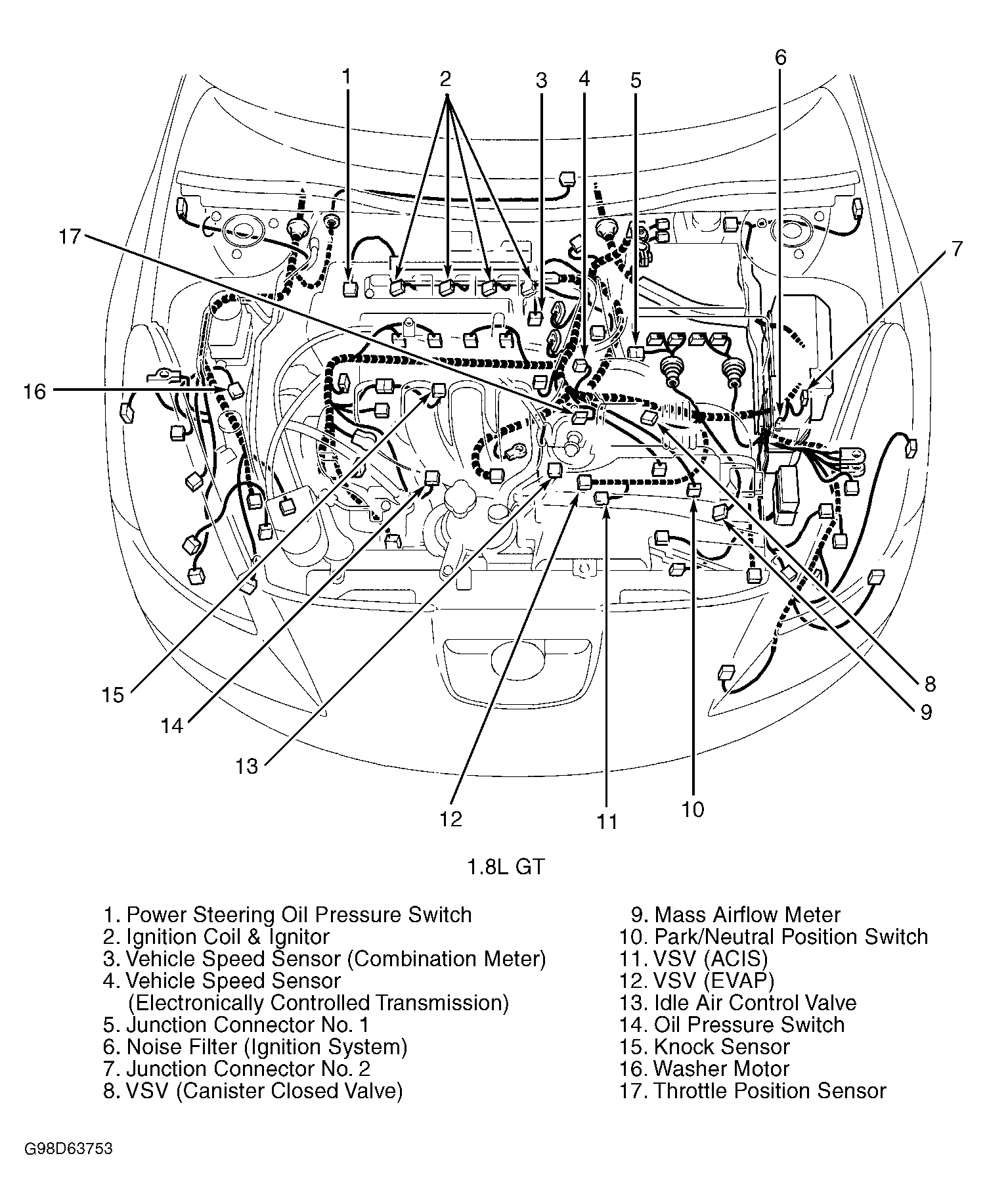

Fig 1: Engine Compartment (1.8L GT)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

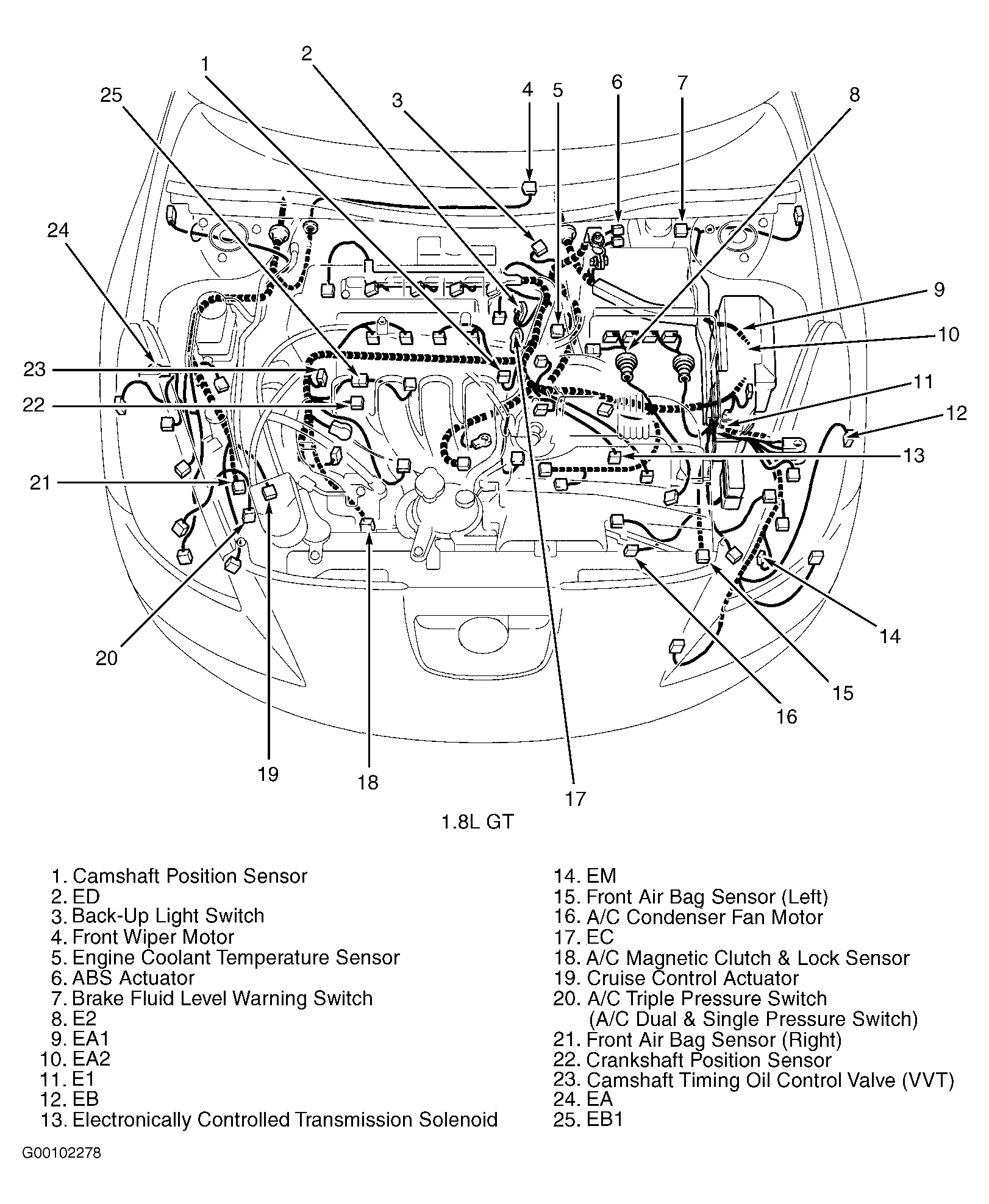

Fig 2: Engine Compartment (1.8L GT)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

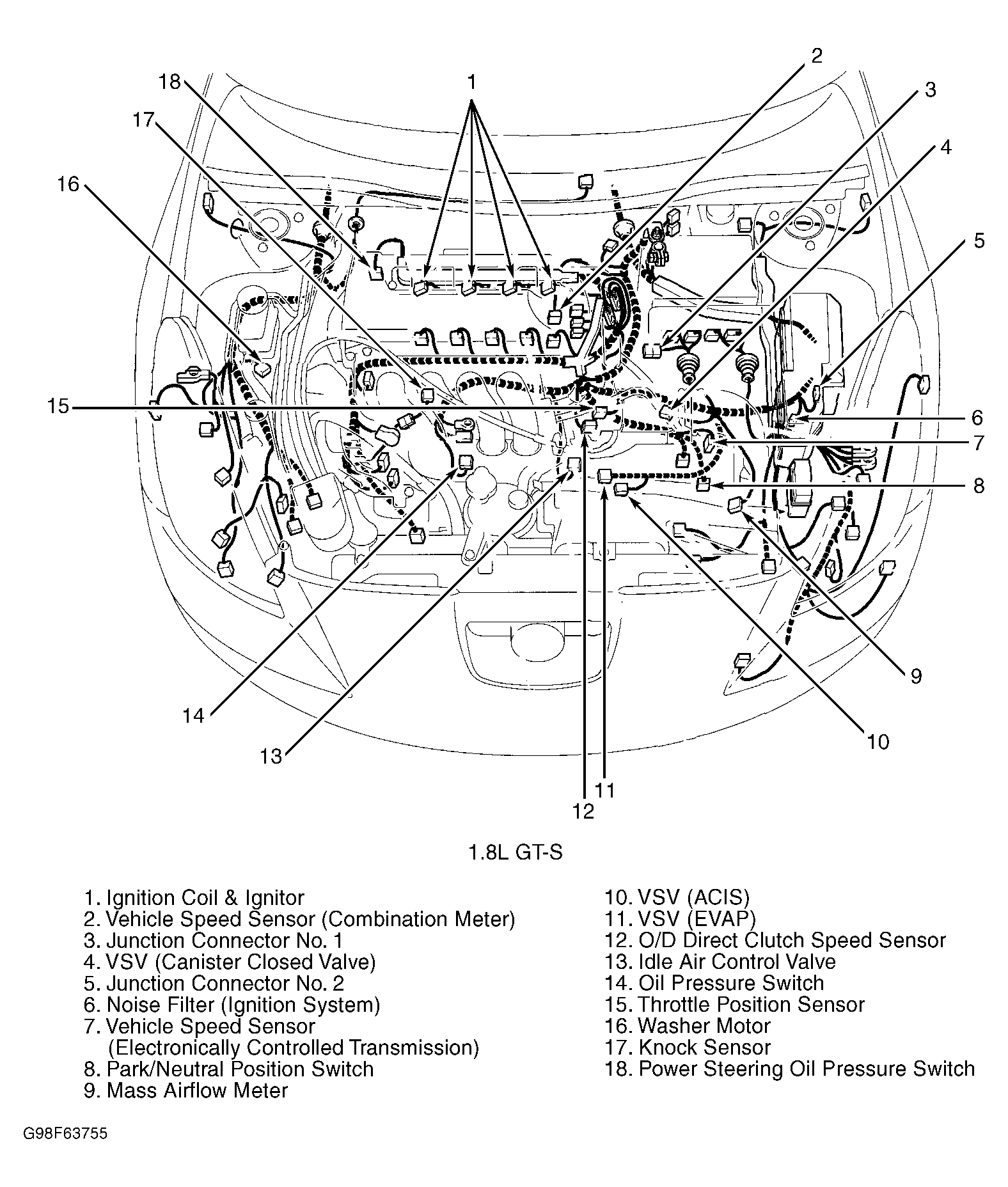

Fig 3: Engine Compartment (1.8L GT-S)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

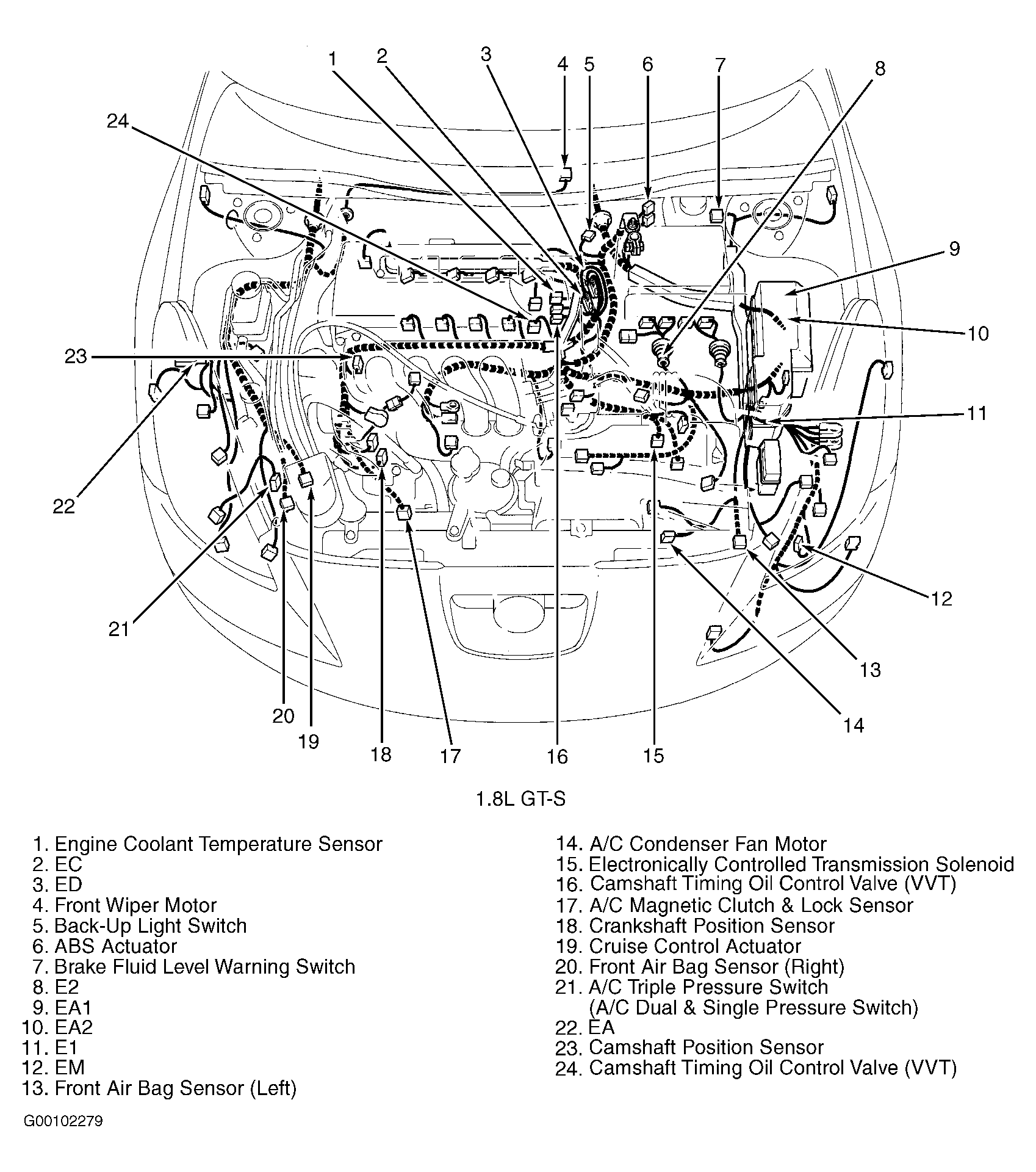

Fig 4: Engine Compartment (1.8L GT-S)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

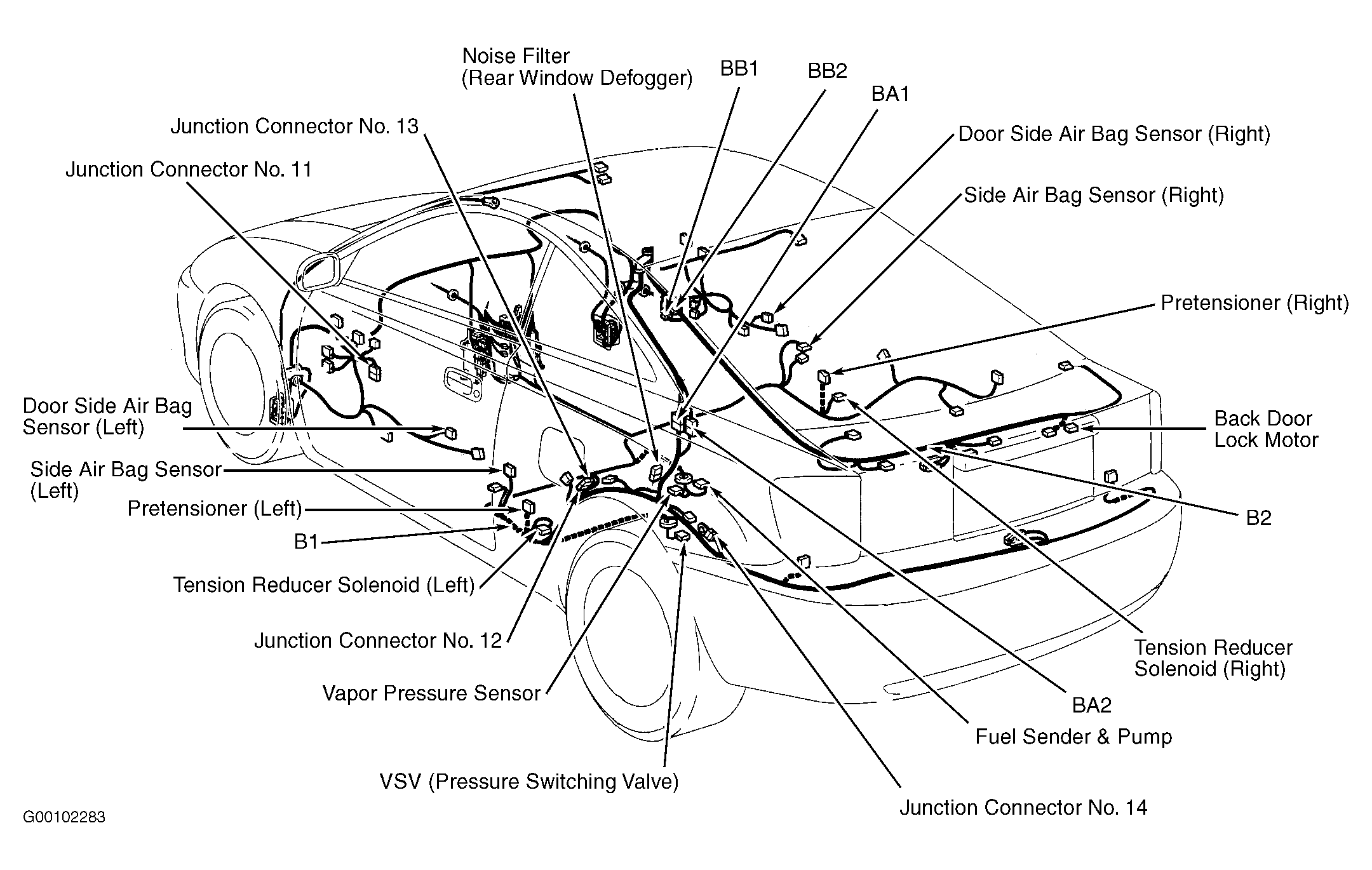

Fig 7: Vehicle Overview

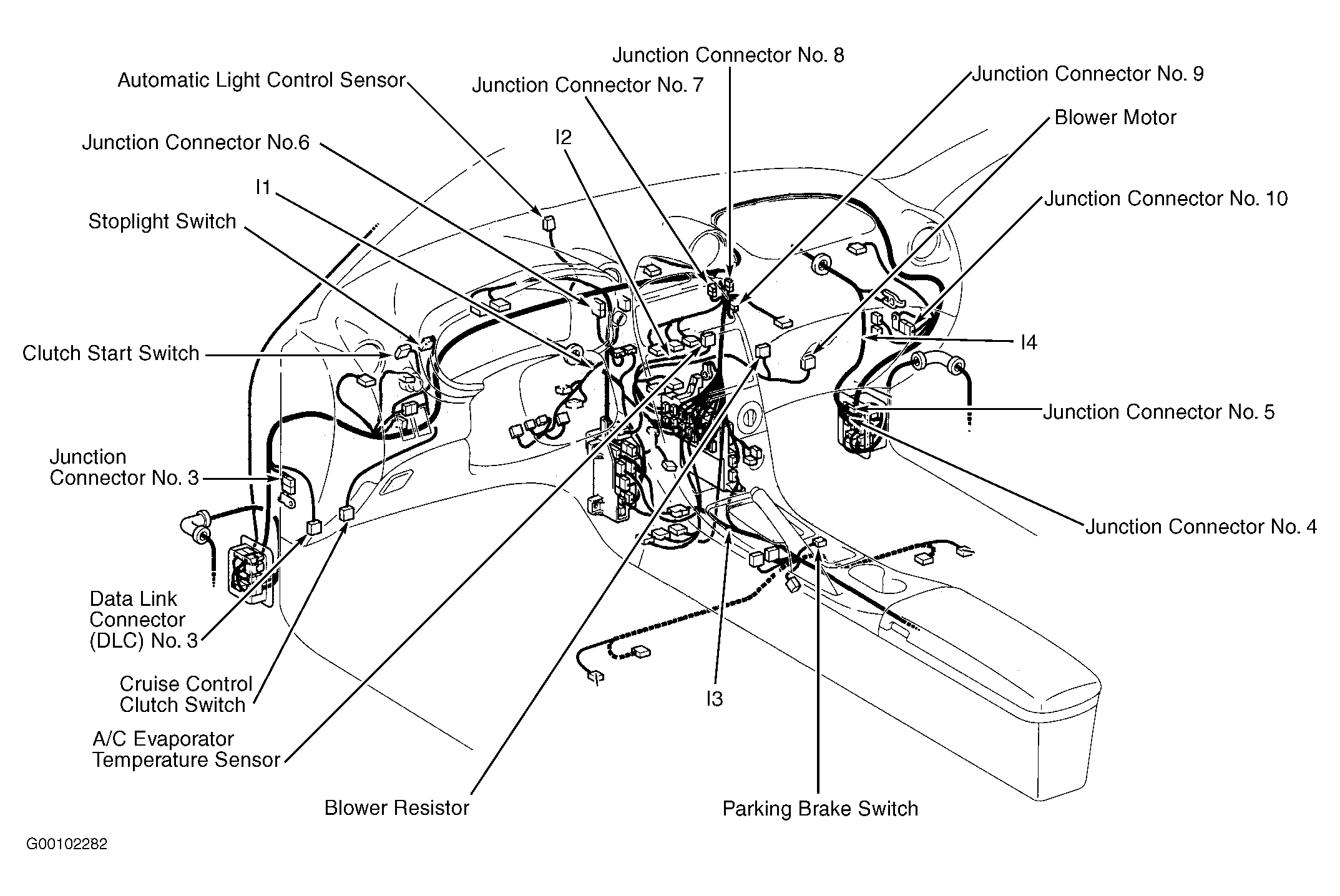

Fig 8: Dash

Fig 9: Vehicle Overview

Fig 10: Dash
