Home >> Toyota >> 2003 >> Celica GT, Standard >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Service Data

Service Data

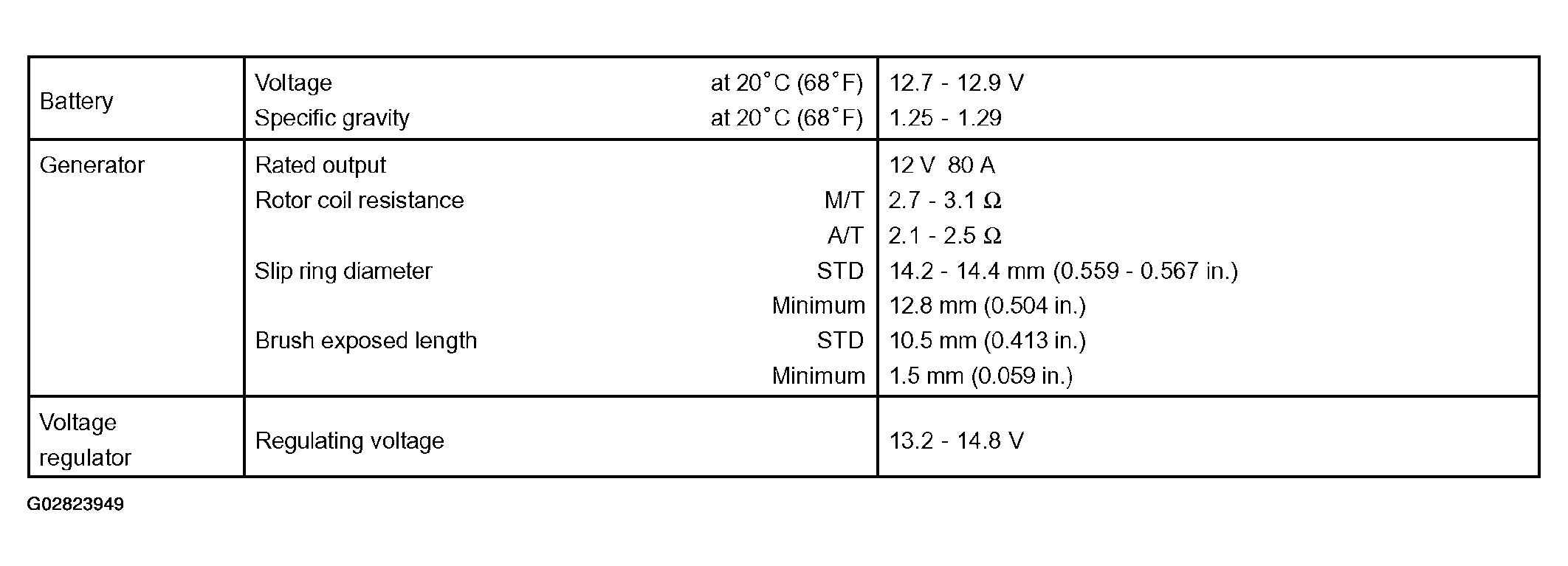

Fig 1: Charging System Specifications

G02823949

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
