Rear Brake Speed Sensor: Removal

Disconnect the connector from the speed sensor.

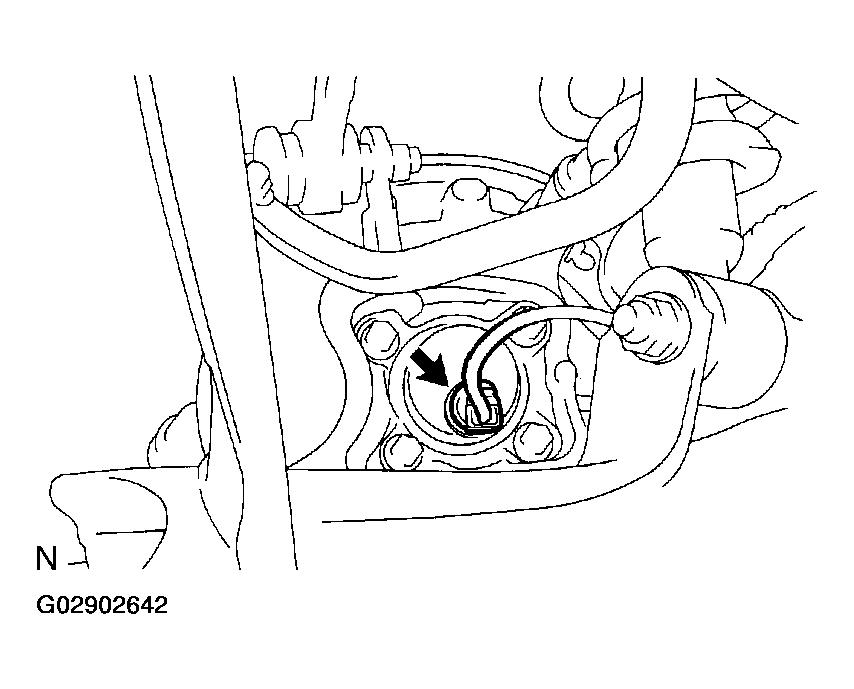

Fig 1: Identifying Speed Sensor Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

(See  REMOVAL  )

1. Using a pin punch and hammer, drive out the 2 pins and remove the 2 attachments from SST.

   SST 09520-00031

2. Mount the rear axle hub in a soft jaw vise.
   NOTE: Replace the axle hub assembly if it is dropped or a strong shock is given to it.
3. Using SST and 2 bolts (Diameter: 12 mm, Pitch: 1.5 mm), remove the speed sensor.

   SST 09520-00031 (09520-00040, 09521-00020), 09950-00020)

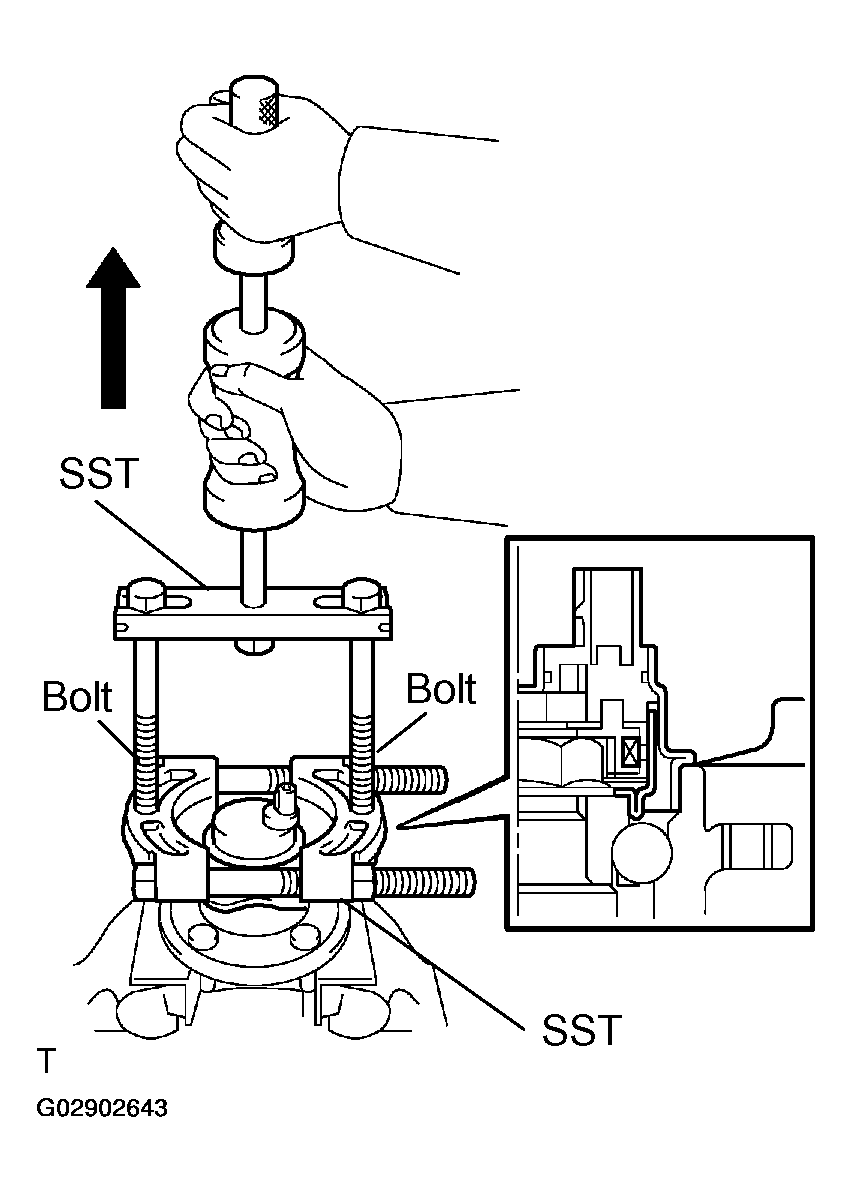

   Fig 2: Using SST To Remove Speed Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • If damage is inflicted to the sensor rotor, replace the axle hub assembly.
   • Do not scratch the contacting surface of axle hub and speed sensor.

1. Remove the seat cushion, seatback and quarter trim (See REMOVAL ).
2. Disconnect the speed sensor wire harness connector.

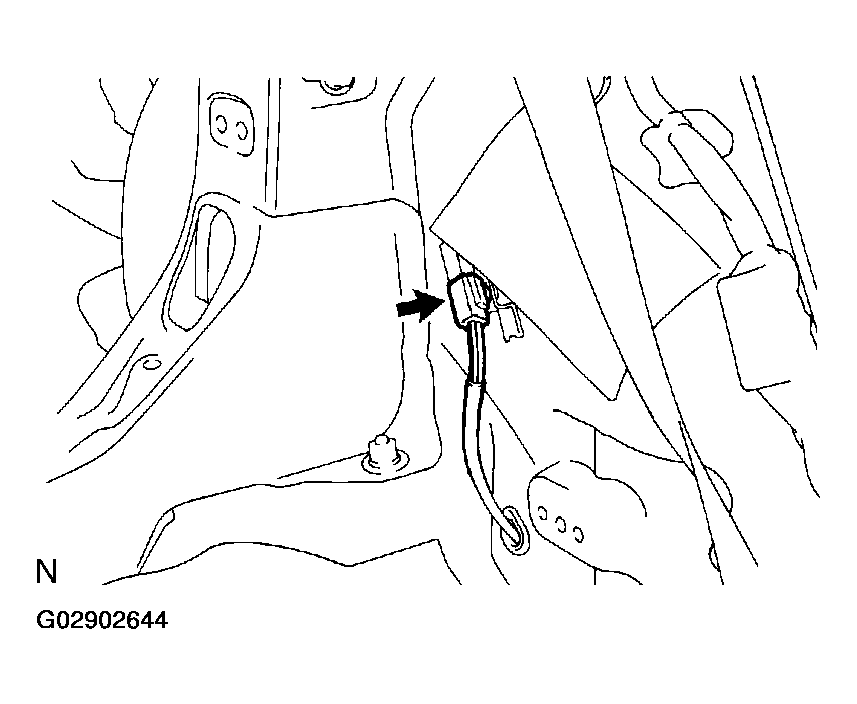

   Fig 3: Locating Speed Sensor Wire Harness Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 clamp bolts holding the sensor harness from the lower arm and body.

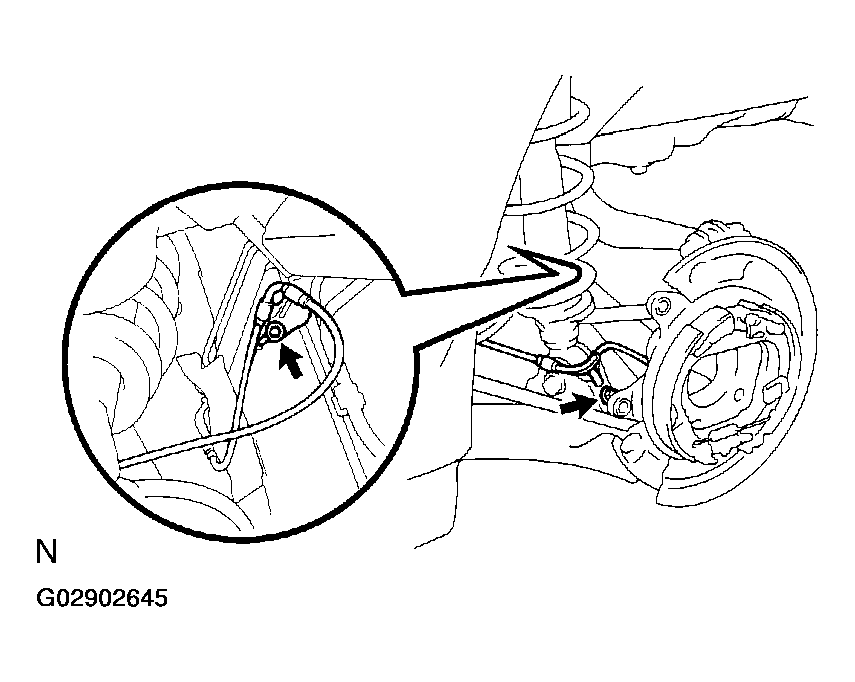

   Fig 4: Locating 2 Clamp Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque:

   Lower arm side: 19 N.m (195 kgf.cm, 14 ft.lbf)

   Body side: 8.0 N.m (82 kgf.cm, 71 in..lbf)

4. Replace the sensor wire harness with the grommet.
