Front Brake Speed Sensor: Removal

Disconnect Speed Sensor Connector
1. Remove the front wheel.
  Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
2. Remove the fender liner.
3. Disconnect the speed sensor connector and resin clip.

  Fig 1: Disconnecting Speed Sensor Connector & Resin Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove Speed Sensor
1. Remove the 2 clamp bolts holding the sensor harness from the body and shock absorber.

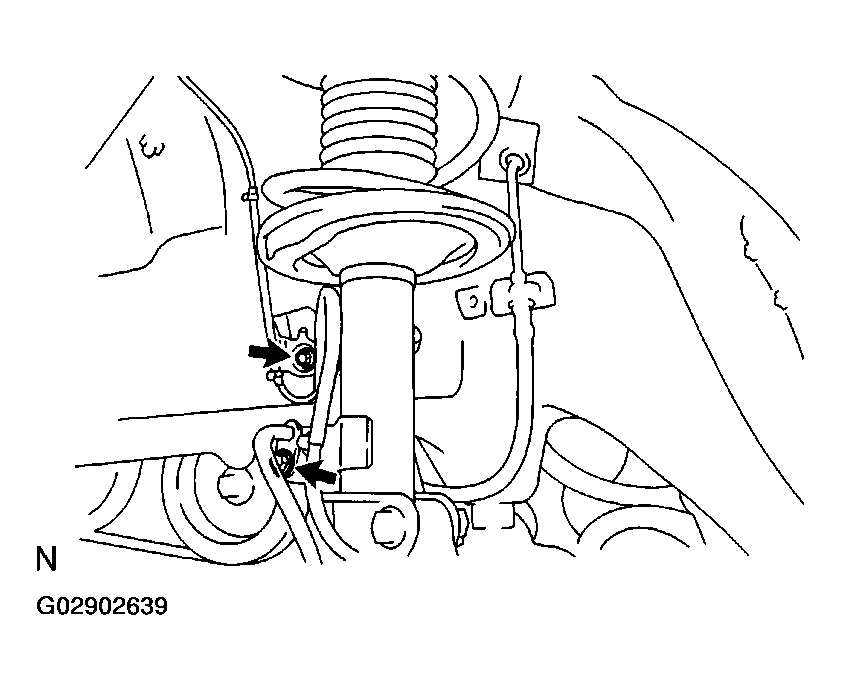

  Fig 2: Locating 2 Clamp Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
2. Remove the speed sensor installation bolt from the steering knuckle.

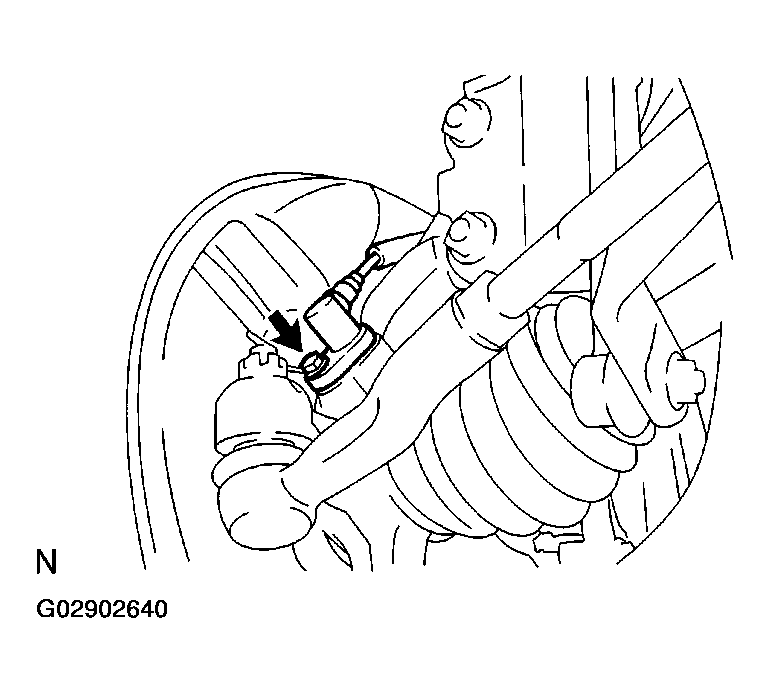

  Fig 3: Locating Speed Sensor Installation Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
NOTE: At the time of installation, please refer to the following item.
- There are no foreign objects on the sensor or the part of the knuckle to which the sensor is to be installed.
- The sensor is installed flat against the knuckle when you tighten the bolt.
