Home >> Toyota >> 2003 >> Celica GT, Standard >> Repair and Diagnosis >> Brakes >> Traction Control >> Front Brake Speed Sensor >> Components

Front Brake Speed Sensor: Components

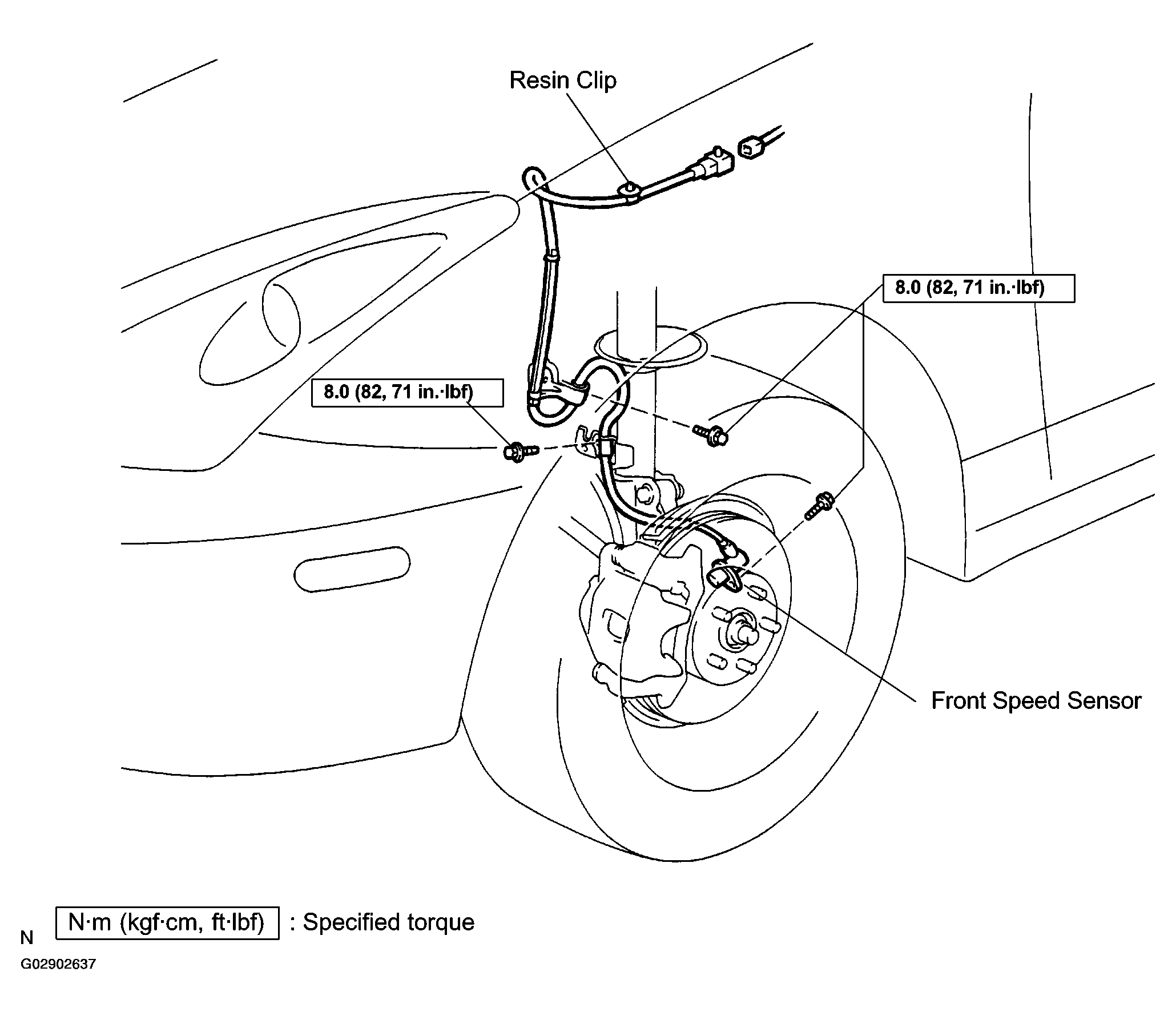

Fig 1: Locating Front Speed Sensor Components

G02902637

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
