Automatic Transmission Assembly: Components

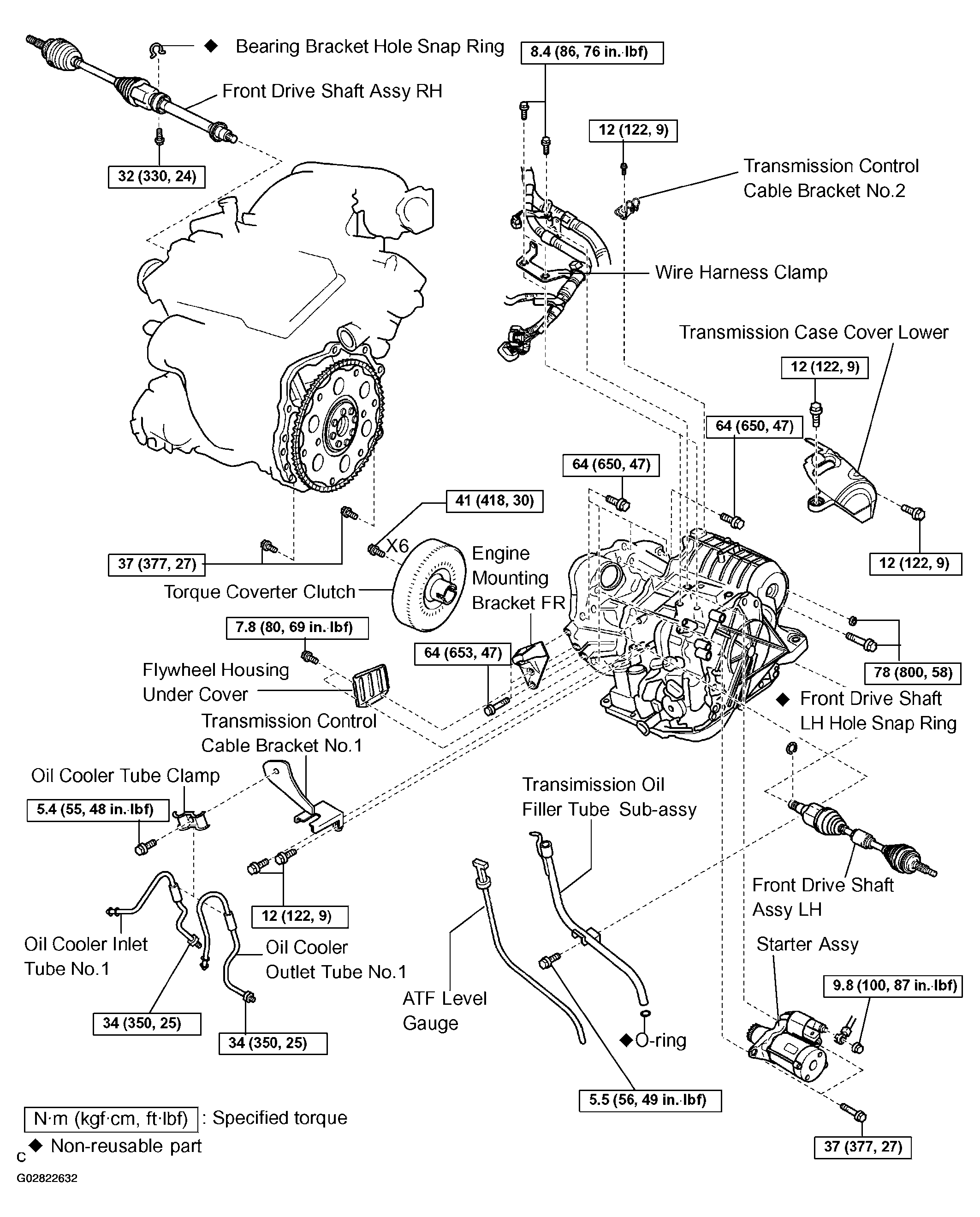

Fig 1: Locating Automatic Transaxle Assy Components

G02822632

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
