Vehicle Identification And Serial Numbers

Vehicle Identification Number
1. The vehicle identification number is stamped on the vehicle identification number plate and the certification label, as shown.

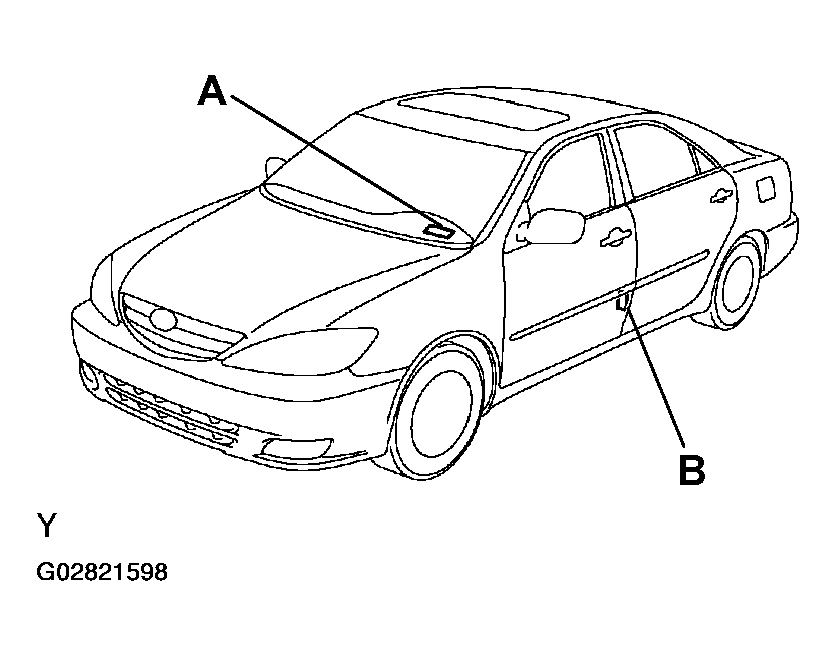

  Fig 1: Locating Vehicle Identification Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Vehicle Identification Number Plate
  2. Certification Label

Factory Of Production

World manufacture identifier is used to distinguish between TMC and TMMK made vehicles. The first 3 digits and letters of the vehicle identification number shows the world manufacturer identifier.

WORLD MANUFACTURE IDENTIFIER

Manufacturing Location

WMI ⁽¹⁾

TMC made

JTD

TMMK made

4T1

⁽¹⁾	World Manufacturer Identifier

Engine Serial Number And Transaxle Serial Number
1. The engine serial number is stamped on the cylinder block of the engine, and the transaxle serial number is stamped on the housing, as shown.

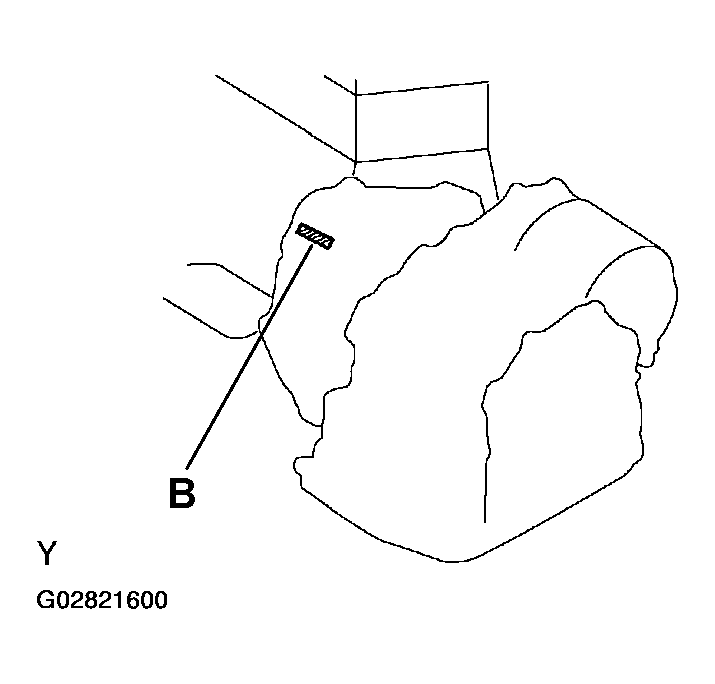

  Fig 2: Locating Engine Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Engine Serial Number
  2. Transaxle Serial Number
