Home >> Toyota >> 2003 >> Camry XLE, 2.4 E >> Repair and Diagnosis >> Body & Frame >> Windows >> Rear Door >> Components

Rear Door: Components

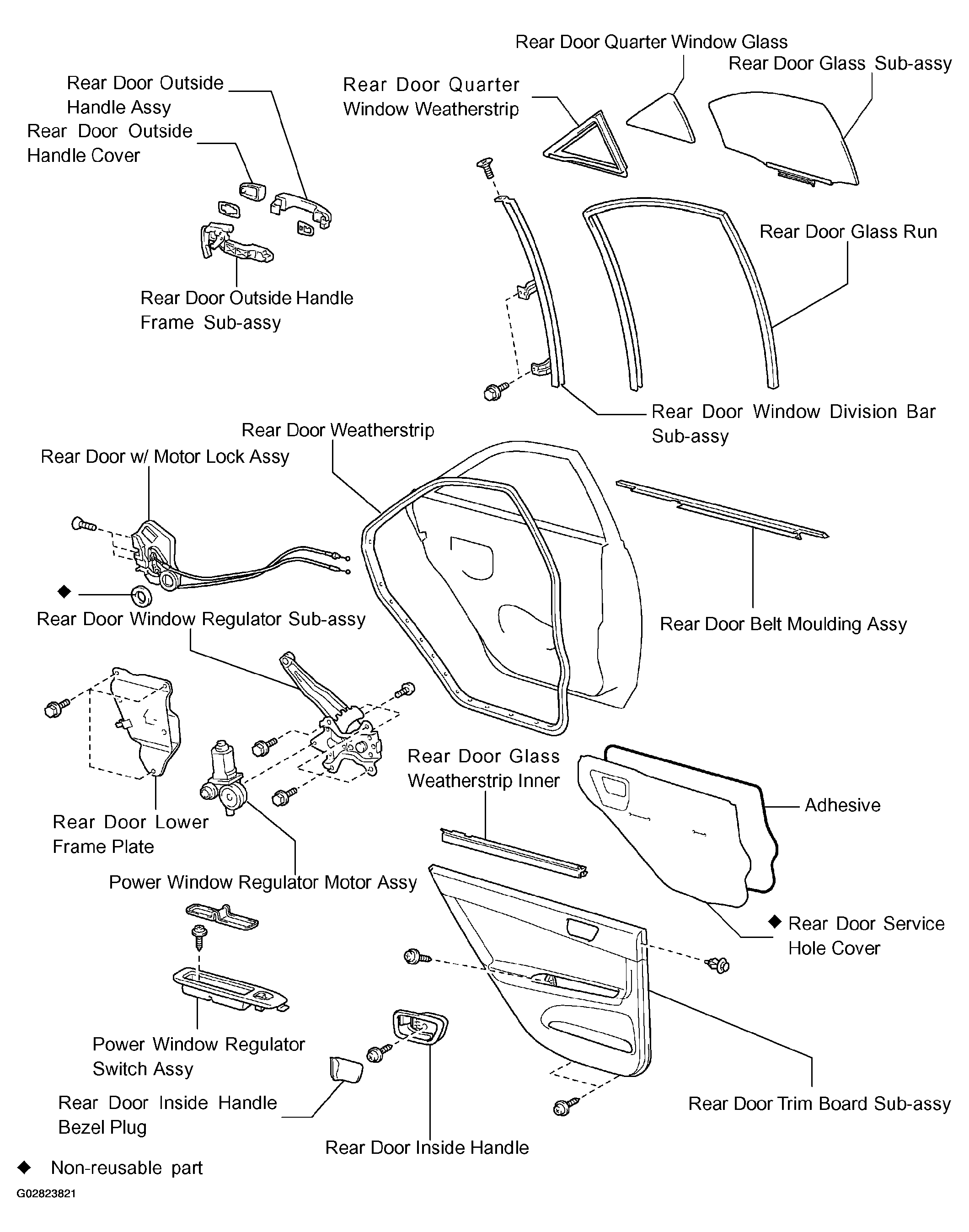

Fig 1: Locating Rear Door Components

G02823821

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
