Back Window Glass: Components

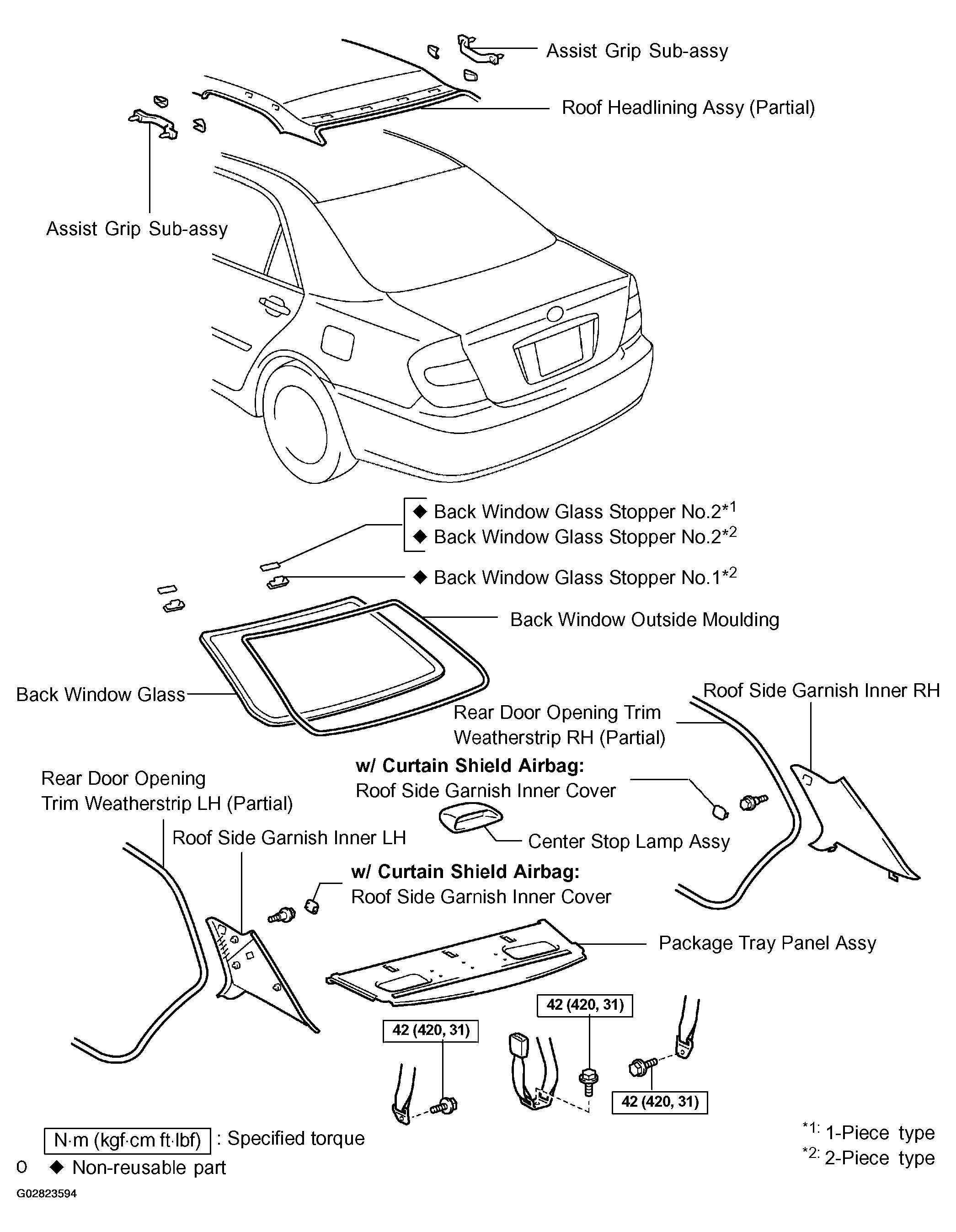

Fig 1: Identifying Back Window Glass Components

G02823594

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
