Power Mirror Control System: Location

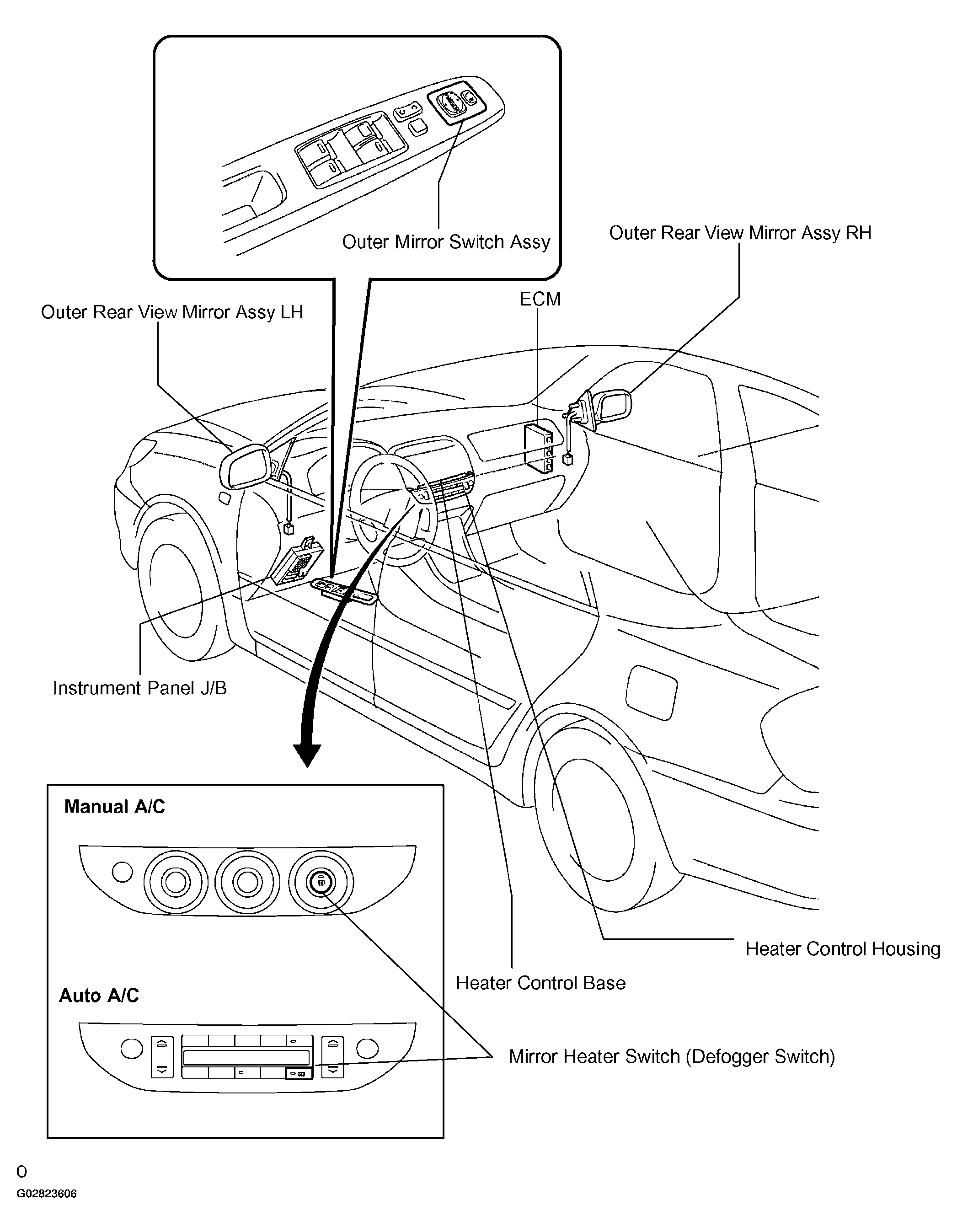

Fig 1: Identifying Power Mirror Control System

G02823606

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
