Power Mirror Control System: Inspection

  1. INSPECT OUTER MIRROR SWITCH ASSY
    1. Inspect the mirror switch continuity.
      1. Left side for left/right adjustment switch:

        Inspect the left side mirror switch continuity.

        Standard:

        OUTER MIRROR SWITCH SPECIFIED CONDITION

        Terminal No. Switch Position Specified Condition
        ..... OFF No Continuity
        4 - 8 & 6 - 7 UP Continuity
        4 - 7 & 6 - 8 DOWN Continuity
        5 - 8 & 6 - 7 LEFT Continuity
        5 - 7 & 6 - 8 RIGHT Continuity

        If the continuity is not as specified, replace the switch.

        Fig 1: Outer Mirror Switch Connector Terminal
        G02823607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Right side for left/right adjustment switch:

        Inspect the right side mirror switch continuity.

        Standard:

        OUTER MIRROR SWITCH SPECIFICATIONS

        Terminal No. Switch position Specified condition
        ..... OFF No continuity
        3 - 8 & 6 - 7 UP Continuity
        3 - 7 & 6 - 8 DOWN Continuity
        2 - 8 & 6 - 7 LEFT Continuity
        2 - 7 & 6 - 8 RIGHT Continuity

        If the continuity is not as specified, replace the switch.

  2. INSPECT OUTER REAR VIEW MIRROR ASSY LH (W/O OUTER MIRROR HEATER)
    1. Inspect the mirror motor operation.

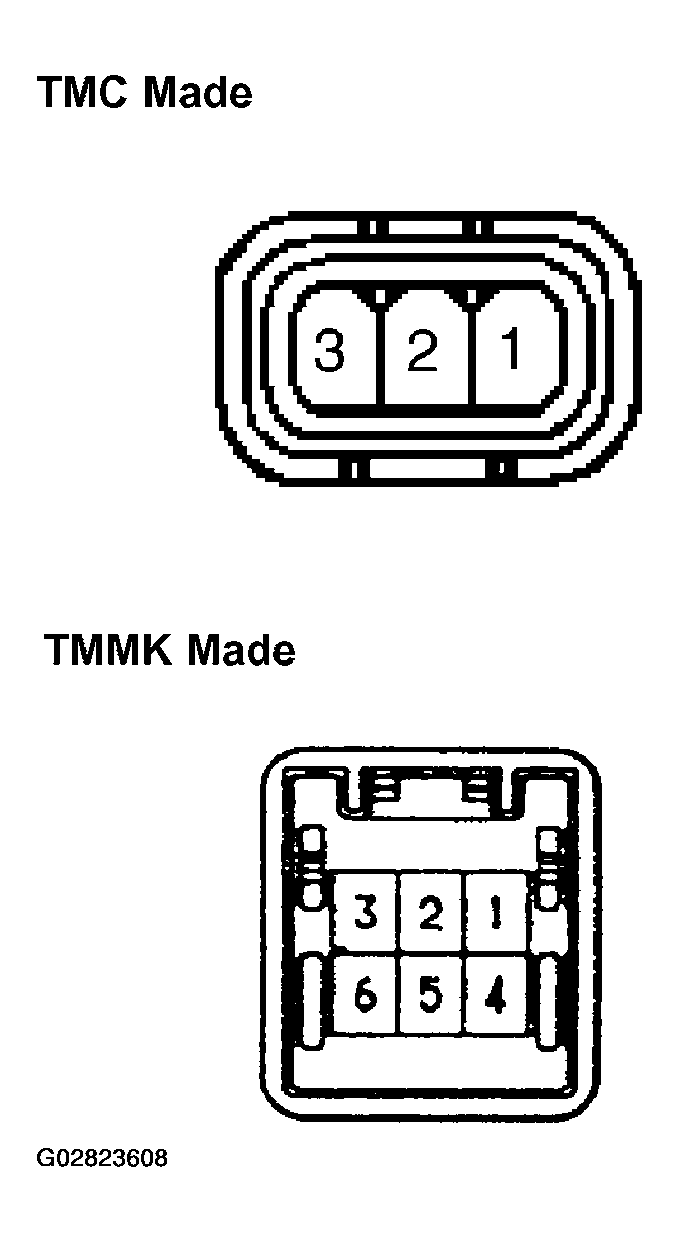

      Fig 2: Identifying Outer Rear View Mirror Connector Terminal
      G02823608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard (TMC Made):

      LH MIRROR MOTOR (TMC MADE) CONNECTOR TERMINALS SPECIFICATIONS

      Battery Connection Mirror Position
      Positive (+) - 1 & Negative (-) - 2 Turn Upward
      Positive (+) - 2 & Negative (-) - 1 Turn Downward
      Positive (+) - 3 & Negative (-) - 2 Turn Left
      Positive (+) - 2 & Negative (-) - 3 Turn Right

      Standard (TMMK Made):

      LH MIRROR MOTOR (TMMK MADE) CONNECTOR TERMINALS SPECIFICATIONS

      Battery Connection Mirror Position
      Positive (+) - 6 & Negative (-) - 2 Turn Upward
      Positive (+) - 2 & Negative (-) - 6 Turn Downward
      Positive (+) - 3 & Negative (-) - 2 Turn Left
      Positive (+) - 2 & Negative (-) - 3 Turn Right

      If the continuity is not as specified, replace the outer rear view mirror assy LH.

  3. INSPECT OUTER REAR VIEW MIRROR ASSY RH (W/O OUTER MIRROR HEATER)
    1. Inspect the mirror motor operation.
      Fig 3: Identifying Outer Rear View Mirror Connector Terminal
      G02823609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard (TMC Made):

      RH MIRROR MOTOR (TMC MADE) CONNECTOR TERMINALS SPECIFICATIONS

      Battery Connection Mirror Position
      Positive (+) - 1
      Negative (-) - 2      		 Turn Upward
      Positive (+) - 2
      Negative (-) - 1      		 Turn Downward
      Positive (+) - 3
      Negative (-) - 2      		 Turn Left
      Positive (+) - 2
      Negative (-) - 3      		 Turn Right

      Standard (TMMK Made):

      RH MIRROR MOTOR (TMMK MADE) CONNECTOR TERMINALS SPECIFICATIONS

      Battery Connection Mirror Position
      Positive (+) - 6 & Negative (-) - 2 Turn Upward
      Positive (+) - 2 & Negative (-) - 6 Turn Downward
      Positive (+) - 3 & Negative (-) - 2 Turn Left
      Positive (+) - 2 & Negative (-) - 3 Turn Right

      If the continuity is not as specified, replace the outer rear view mirror assy RH.

  4. INSPECT OUTER REAR VIEW MIRROR ASSY LH (W/ OUTER MIRROR HEATER, TMC MADE)
    1. Inspect the mirror heater operation.
      Fig 4: Identifying Outer Rear View Mirror Connector Terminal
      G02823610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      LH MIRROR MOTOR (TMC MADE) TERMINAL SPECIFICATIONS

      Battery Connection Mirror Position
      Positive (+) - 2 & Negative (-) - 3 Turn Upward
      Positive (+) - 3 & Negative (-) - 2 Turn Downward
      Positive (+) - 4 & Negative (-) - 3 Turn Left
      Positive (+) - 3 & Negative (-) - 4 Turn Right

      If the continuity is not as specified, replace the outer rear view mirror assy LH.

      1. Check the resistance between terminals 1 and 5 of the connector.

        Resistance: 4.0 - 5.4 Ω

      2. Check that the mirror is heated up when connecting the battery positive (+) to terminal 4 and the battery negative (-) to terminal 5 of the connector.

  5. INSPECT OUTER REAR VIEW MIRROR ASSY LH (W/ OUTER MIRROR HEATER, TMMK MADE)
    1. Inspect the mirror motor operation.

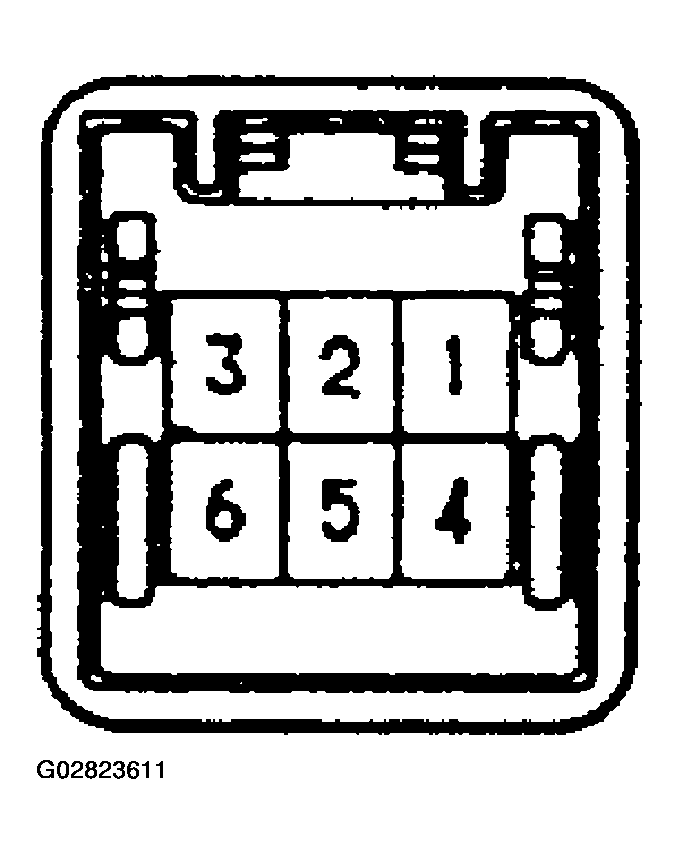

      Fig 5: Identifying Outer Rear View Mirror Connector Terminal
      G02823611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      LH MIRROR MOTOR (TMMK MADE) CONNECTOR TERMINALS SPECIFICATIONS

      Battery Connection Mirror Position
      Positive (+) - 6 & Negative (-) - 2 Turn Upward
      Positive (+) - 2 & Negative (-) - 6 Turn Downward
      Positive (+) - 3 & Negative (-) - 2 Turn Left
      Positive (+) - 2 & Negative (-) - 3 Turn Right

      If the continuity is not as specified, replace the outer rear view mirror assy LH.

    2. Inspect the mirror heater operation.
      1. Check the resistance between terminals 1 and 4 of the connector.

        Resistance: 4.0 - 5.4 Ω

      2. Check that the mirror is heated up when connecting the battery positive (+) to terminal 4 and the battery negative (-) to terminal 5 of the connector.
  6. INSPECT OUTER REAR VIEW MIRROR ASSY RH (W/ OUTER MIRROR HEATER, TMC MADE)
    1. Inspect the mirror motor operation.
      Fig 6: Identifying Outer Rear View Mirror Connector Terminal
      G02823612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      RH MIRROR MOTOR (TMC MADE) CONNECTOR TERMINALS SPECIFICATIONS

      Battery Connection Mirror Position
      Positive (+) - 2 & Negative (-) - 3 Turn Upward
      Positive (+) - 3 & Negative (-) - 2 Turn Downward
      Positive (+) - 4 & Negative (-) - 3 Turn Left
      Positive (+) - 3 & Negative (-) - 4 Turn Right

      If the continuity is not as specified, replace the outer rear view mirror assy RH.

    2. Check the mirror heater operation.
      1. Check the resistance between terminals 1 and 5 of the connector.

        Resistance: 4.0 - 5.4 Ω

      2. Check that the mirror is heated up when connecting the battery positive (+) to terminal 4 and the battery negative (-) to terminal 5 of the connector.
  7. INSPECT OUTER REAR VIEW MIRROR ASSY RH (W/ OUTER MIRROR HEATER, TMMK MADE)
    1. Inspect the mirror motor operation.
      Fig 7: Identifying Outer Rear View Mirror Connector Terminal
      G02823613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      RH MIRROR MOTOR (TMMK MADE) CONNECTOR TERMINALS SPECIFICATIONS

      Battery Connection Mirror Position
      Positive (+) - 6 & Negative (-) - 2 Turn Upward
      Positive (+) - 2 & Negative (-) - 6 Turn Downward
      Positive (+) - 3 & Negative (-) - 2 Turn Left
      Positive (+) - 2 & Negative (-) - 3 Turn Right

      If the continuity is not as specified, replace the outer rear view mirror assy RH.

    2. Check the mirror heater operation.
      1. Check the resistance between terminals 1 and 4 of the connector.

        Resistance: 4.0 - 5.4 Ω

      2. Check that the mirror is heated up when connecting the battery positive (+) to terminal 4 and the battery negative (-) to terminal 5 of the connector.
