Terminals Of ECM

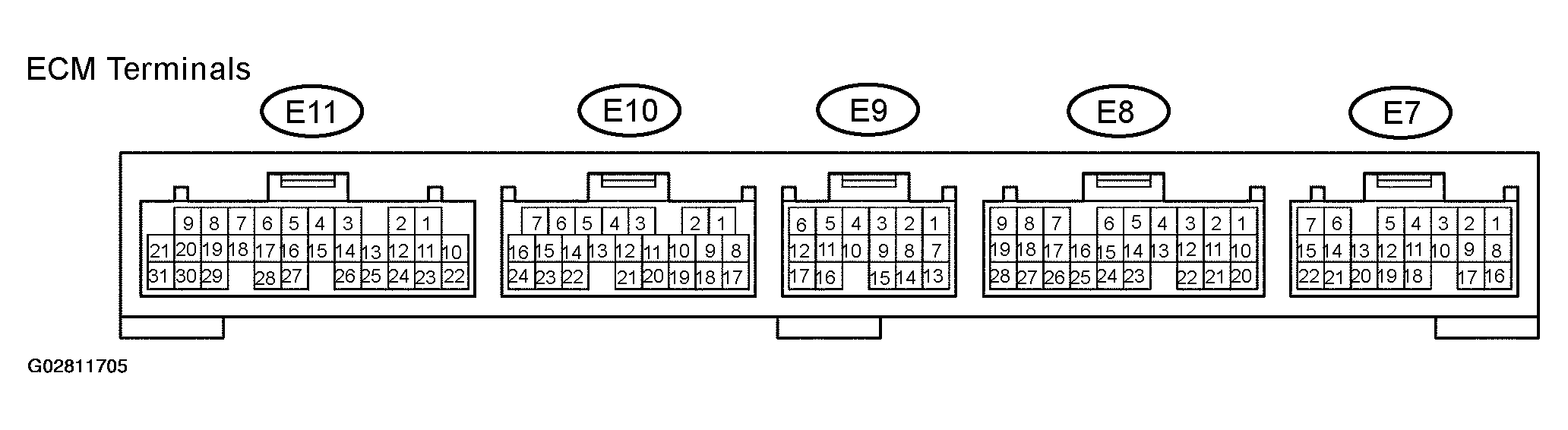

Fig 1: Identifying ECM Terminals
G02811705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

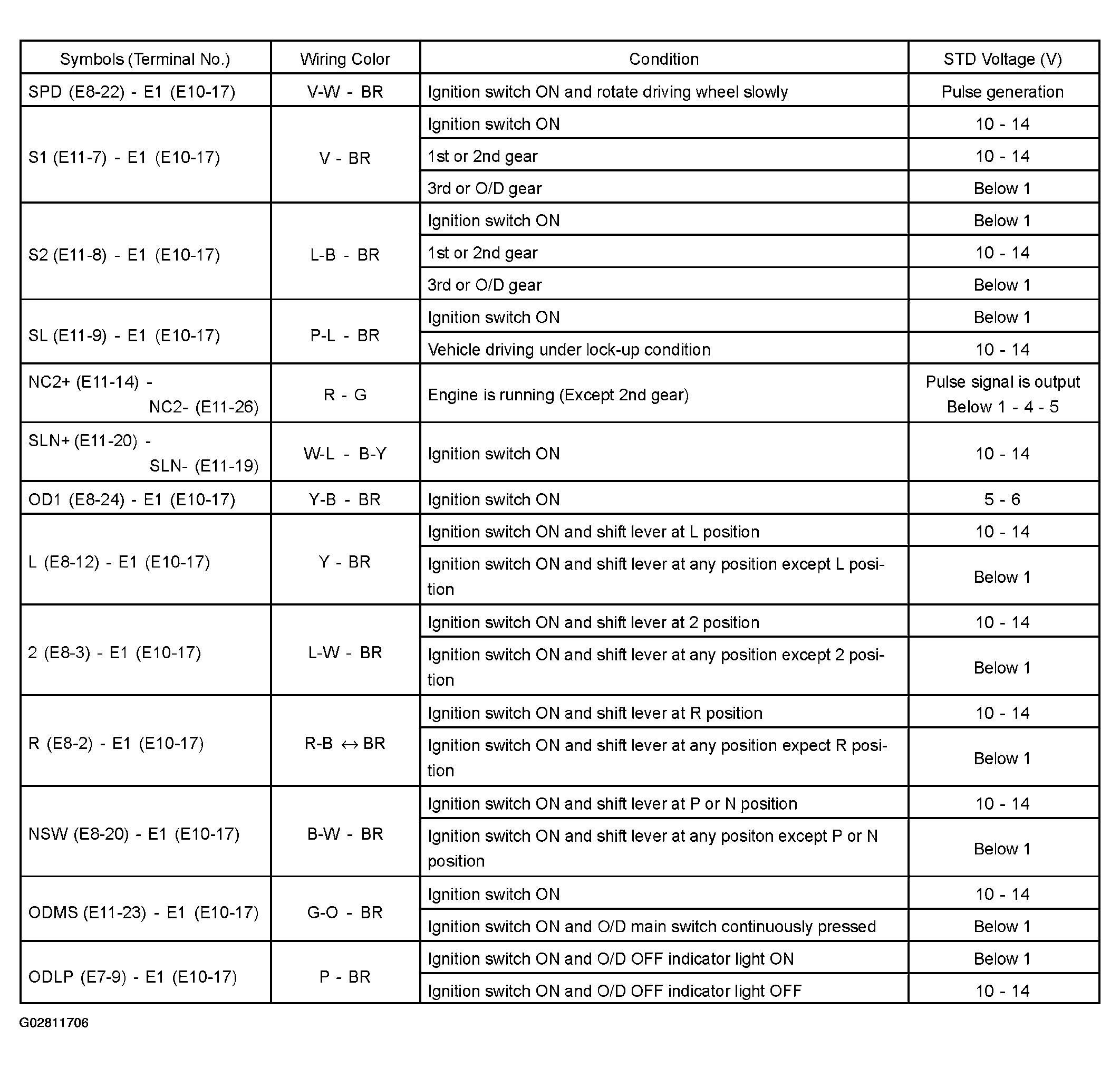

Fig 2: ECM Terminal Description Chart
G02811706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
