Automatic Transmission Shift Lock System - A541E: Location

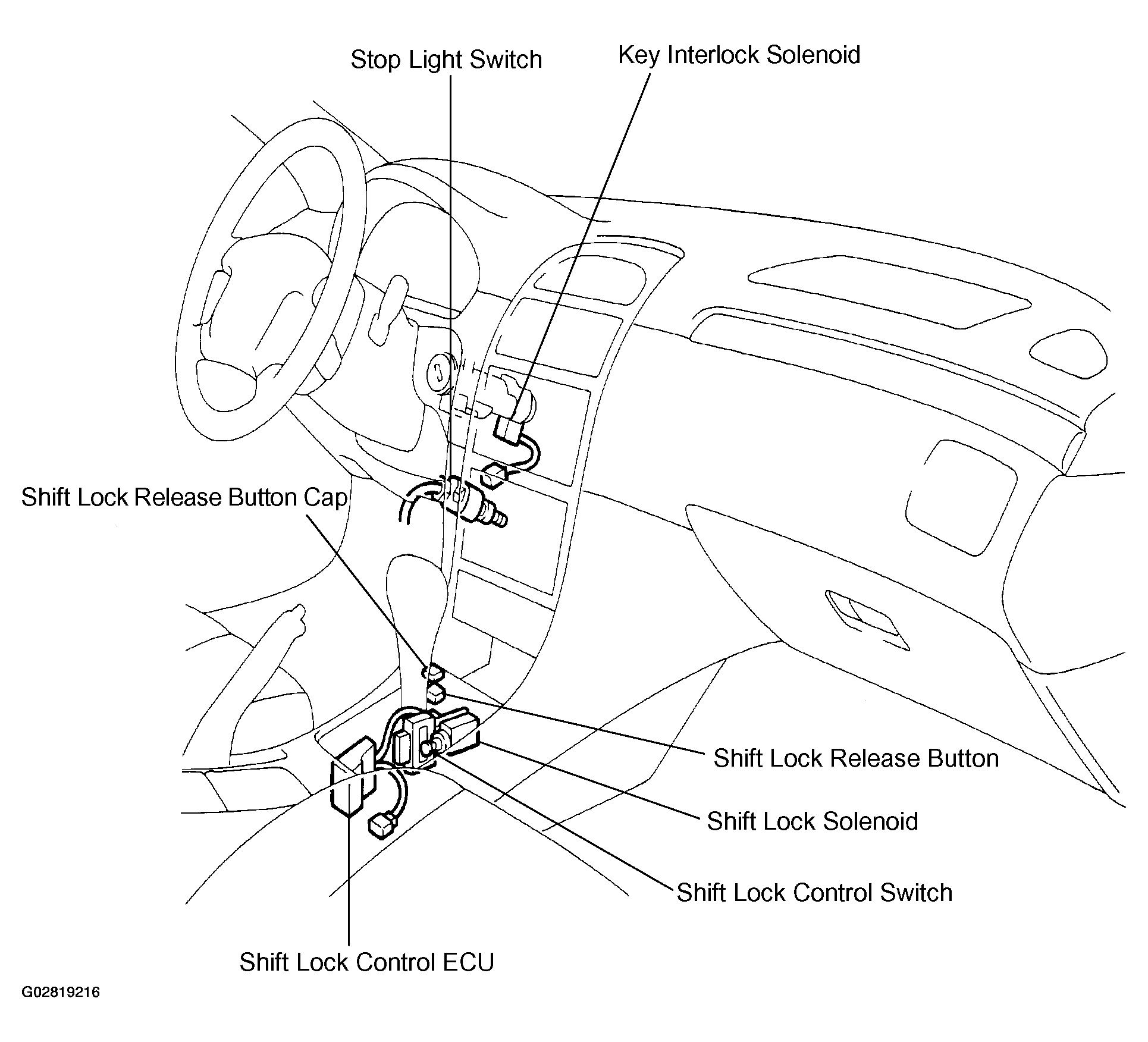

Fig 1: Locating Shift Lock System Components
G02819216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
