Automatic Transmission Floor Shift Assembly: Removal

1. REMOVE FRONT CONSOLE BOX  See REMOVAL .
   1. Remove the front door scuff plate LH.
   2. Remove the cowl side trim LH.
   3. Remove the front door scuff plate RH.
   4. Remove the cowl side trim RH.
   5. Remove the No. 1 lower panel.
   6. Remove the No. 2 under cover.
   7. Remove the No. 2 lower panel.
   8. Remove the upper console panel.
   9. Remove the center cluster finish panel.
   10. Remove the heater control assembly.
   11. Remove the rear console box.
   12. Remove the front console box.
2. DISCONNECT 2 CONNECTORS
3. REMOVE 4 CLAMPS

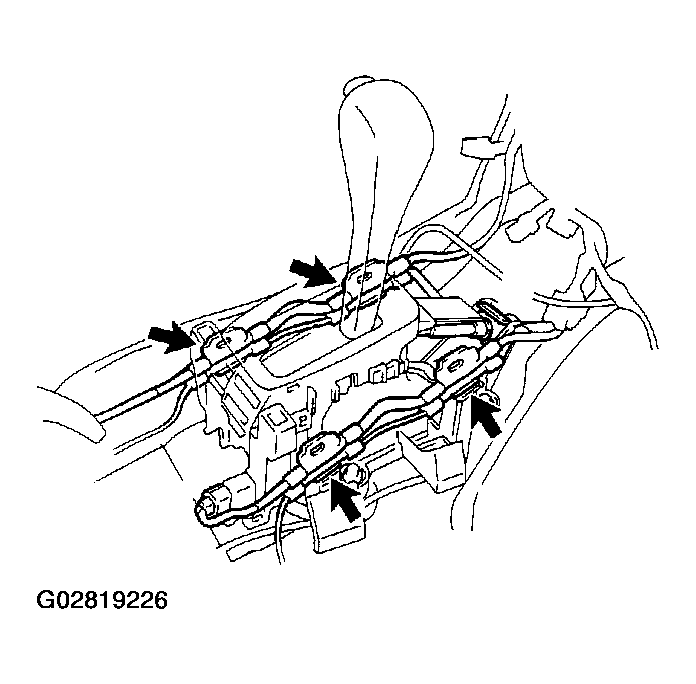

   Fig 1: Removing 4 Clamps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. DISCONNECT SHIFT CONTROL CABLE
   1. Using pliers, remove the clamp.

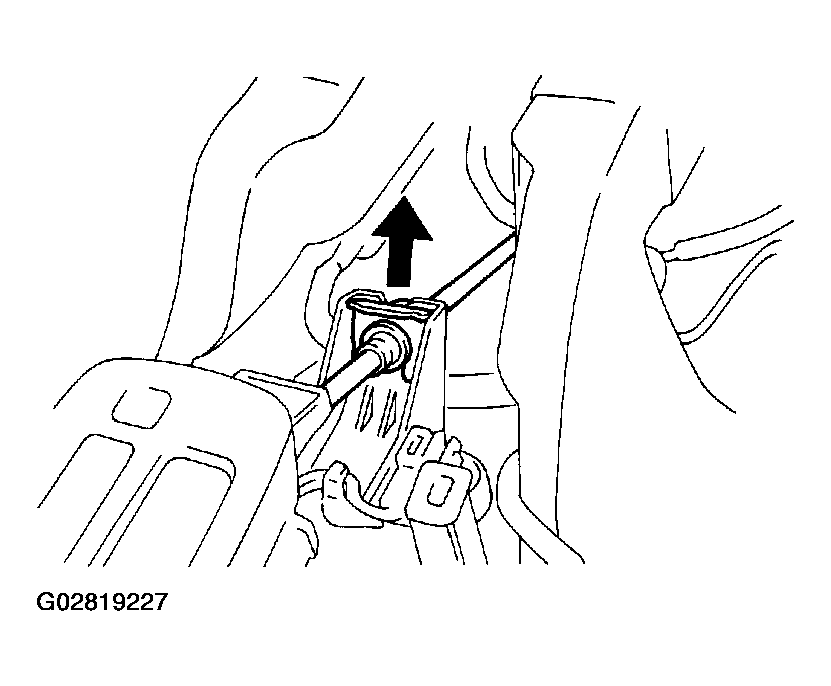

      Fig 2: Removing Shift Control Cable Clamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Disconnect the shift control cable from the shift lever assembly.
5. REMOVE SHIFT LEVER ASSEMBLY

Remove the 4 bolts and the shift lever assembly.

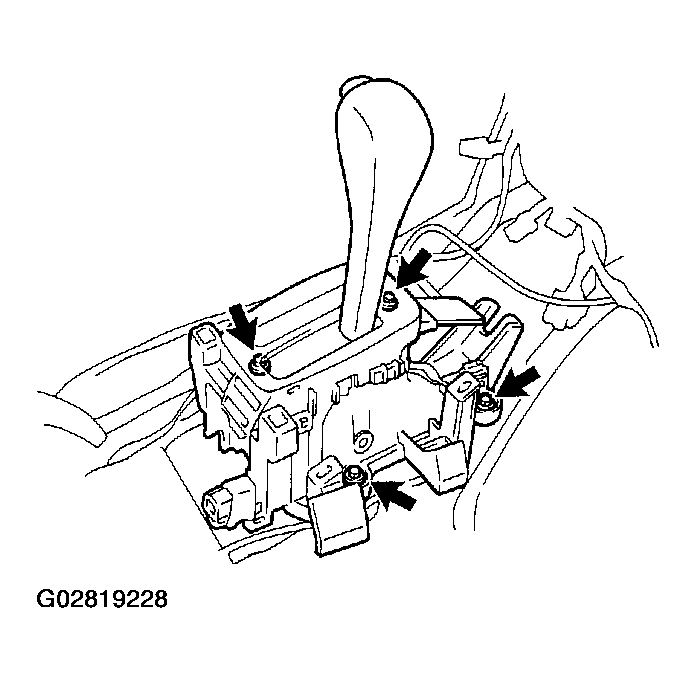

Fig 3: Removing Shift Lever Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
