Automatic Transmission Floor Shift Assembly: Reassembly

INSTALL COLLARS
ASSEMBLE SHIFT LEVER SUB-ASSEMBLY

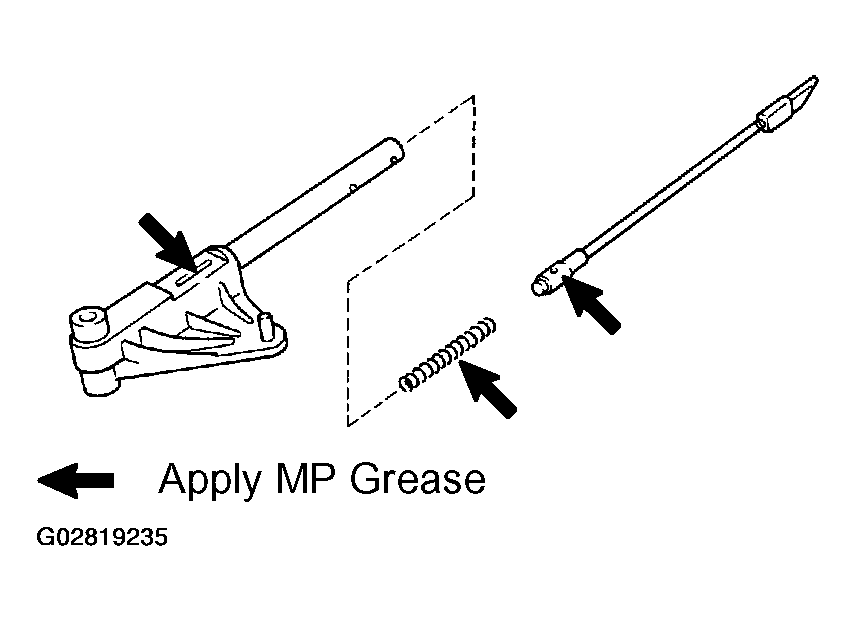

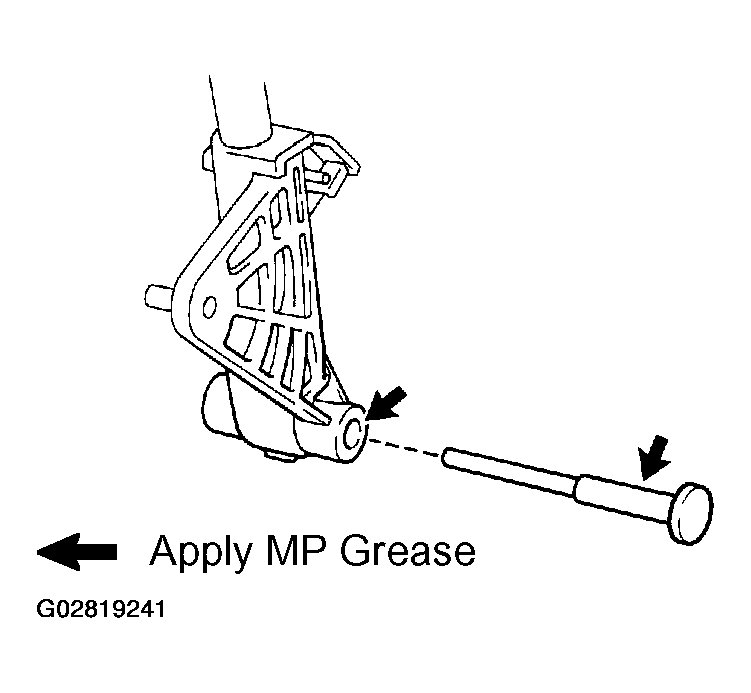

1. Apply MP grease on the detent rod and shift lever sub-assembly.
2. Install the detent rod and compression rod spring to shift lever sub-assembly.

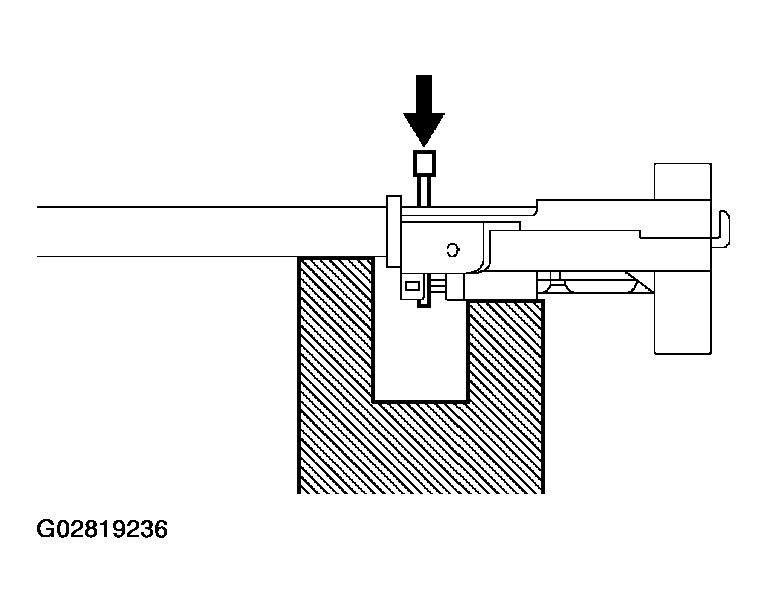

3. Place the shift lever sub-assembly on as shown in Fig 2.

  Fig 2: Placing Shift Lever Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Insert the grooved pin to the detent rod pin hole.
  CAUTION:

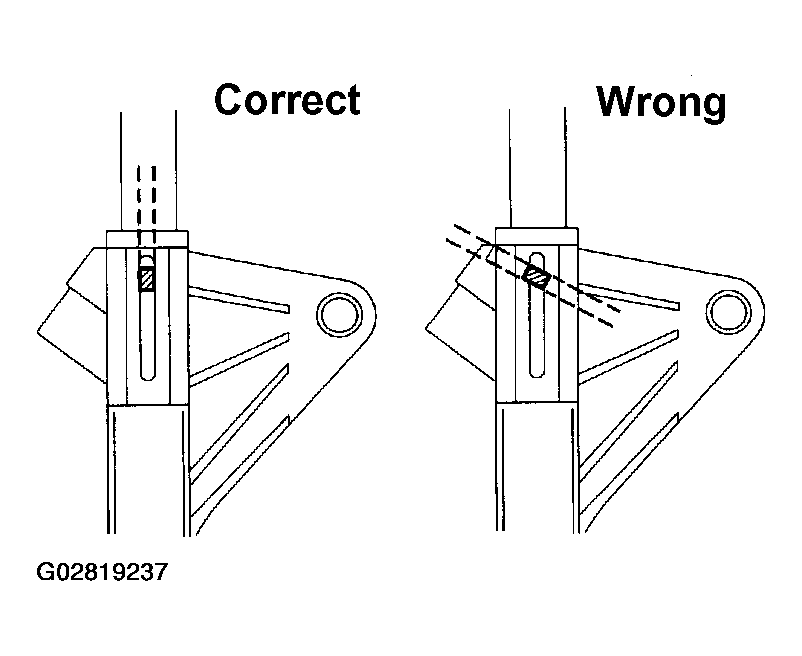

  - Assemble the grooved pin to ensure that it fits into the guide hole of the shift lever sub-assembly in parallel.

    Fig 3: Identifying Proper Fit Of Grooved Pin
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - Take care not to insert the pin in the wrong direction of the detent rod.

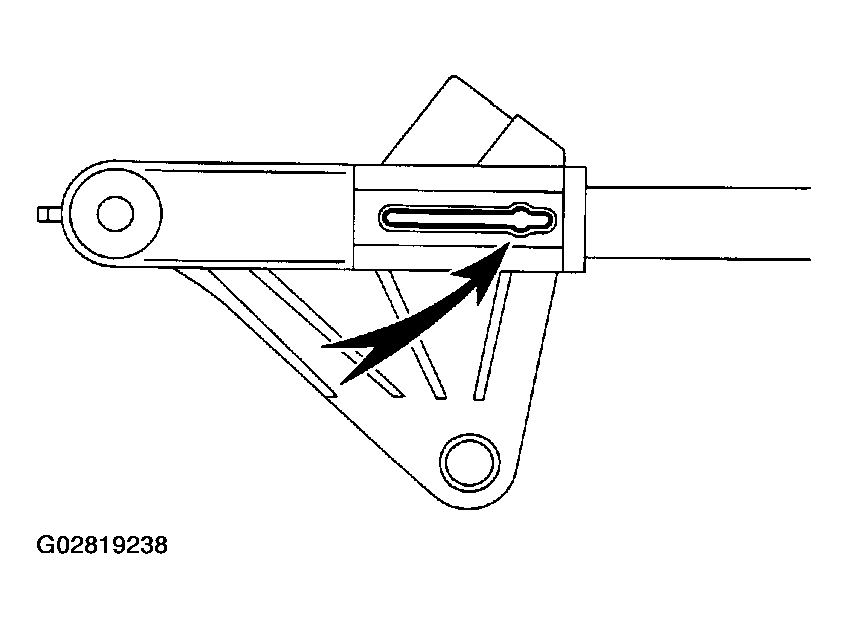

5. Meet the grooved pin with the notch of the guide hole.

  Fig 4: Meeting Grooved Pin With Notch Of Guide Hole
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

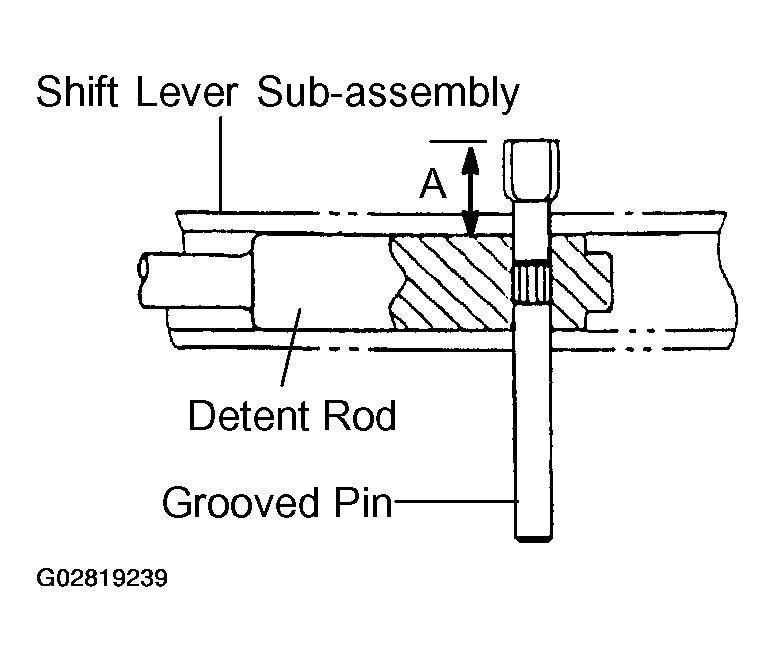

6. Press the pin with a hammer.

  Fig 5: Pressing In Grooved Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A: 10.0 - 10.4 mm (0.39 - 0.41 in.)
CAUTION: When pressing in the grooved pin, if doing it at the place other than the notch, the shift lever sub-assembly might be damaged.
CHECK DETENT ROD OPERATION
INSTALL SHIFT LEVER KNOB SLEEVE TO DETENT ROD

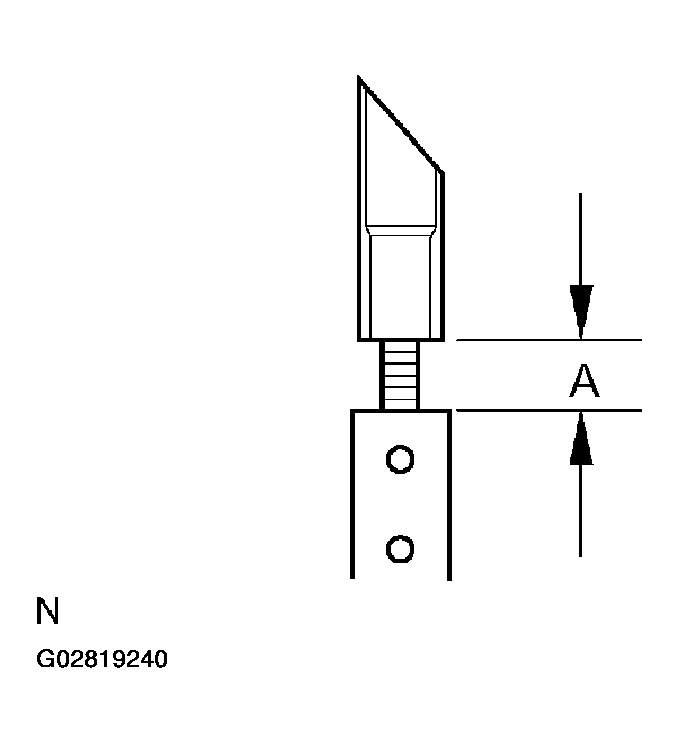

Drive the shift lever knob sleeve to the distance A measured before removal.

Fig 6: Driving Shift Lever Knob Sleeve To Distance "A"
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LEVER SUB-ASSEMBLY
1. Apply the MP grease.

  Fig 7: Installing Control Shaft & Shift Lever Sub-Assembly To Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the control shaft and the shift lever sub-assembly to the shift lever plate.
CAUTION: Take care not to install them in the wrong direction of the shift lever sub-assembly.
INSTALL SPRING PLATE
INSTALL SHIFT LOCK UNIT
1. Install the shift lock solenoid bracket and 2 screws.
2. Install the shift lock control ECU.

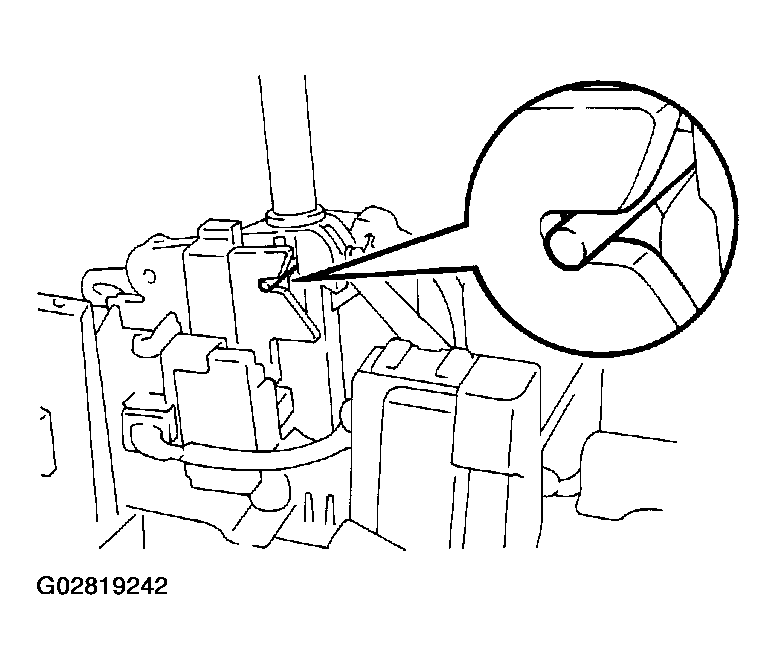

NOTE: Install the grooved pin into the groove of the shift lock unit as shown in Fig 8.

Fig 8: Installing Grooved Pin
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

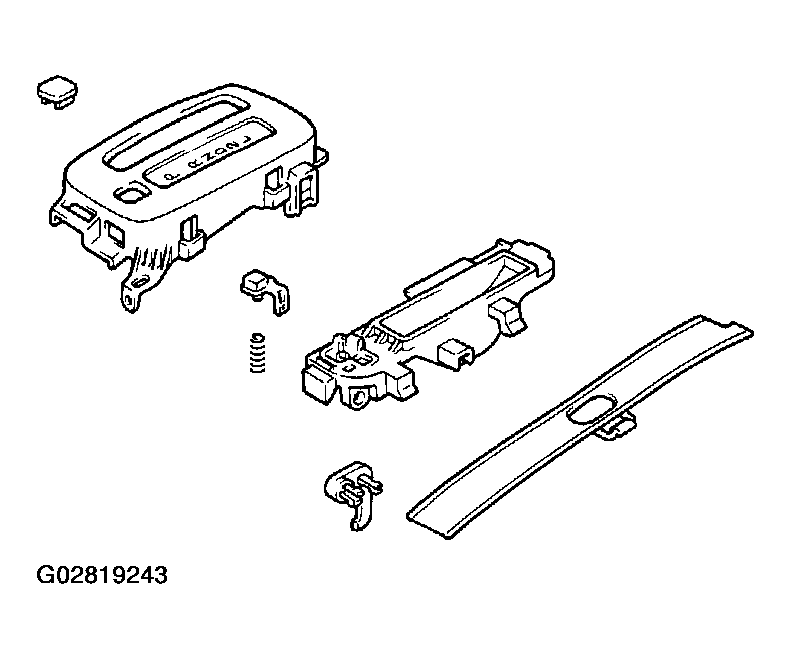

ASSEMBLE INDICATOR HOUSING
1. Install the shift lock release button, link and spring to the position indicator lower housing.
2. Install the position indicator slide cover to the position indicator upper housing.
3. Install the position indicator lower housing to the position indicator upper housing.
4. Install the shift lock release button cap to the indicator housing.
INSTALL INDICATOR HOUSING
Install the indicator housing with a screw.
INSTALL INDICATOR LIGHT
1. Install the bulb to the indicator light wire.
2. Install the indicator light to the indicator housing.

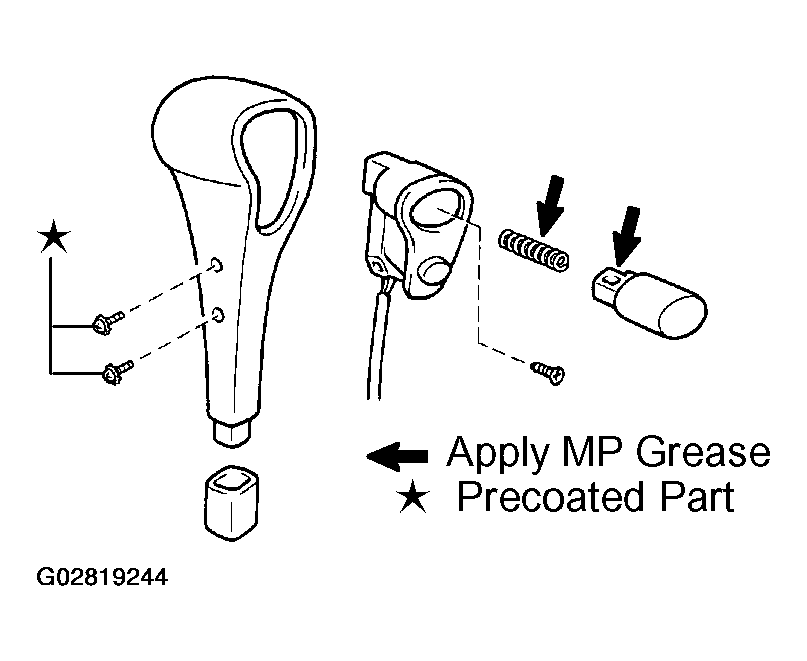

INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
1. Install a screw and O/D main switch to shift lever knob.

  Fig 10: Exploded View Of Shift Lever Knob Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the shift lever knob cover to shift lever knob.
3. Apply MP grease to shift lever knob button.
4. Install the spring and shift lever knob button to shift lever knob.
5. Coat the threads of the 2 screws with sealant.
  Sealant: Part No. 08833-00080, THREE BOND 1344, LOCATE 242 or equivalent
6. Install the shift lever knob and 2 screws to shift lever sub-assembly.
CAUTION: Make sure not to catch O/D main switch wire harness.
INSTALL O/D MAIN SWITCH TERMINAL
1. Connect the 2 O/D main switch terminals to the connector.
2. Connect the connector to the shift lever plate.
