Automatic Transmission Floor Shift Assembly: Disassembly

1. REMOVE O/D MAIN SWITCH TERMINAL
   1. Remove the connector from the shift lever plate.
   2. Disengage the secondary locking device.

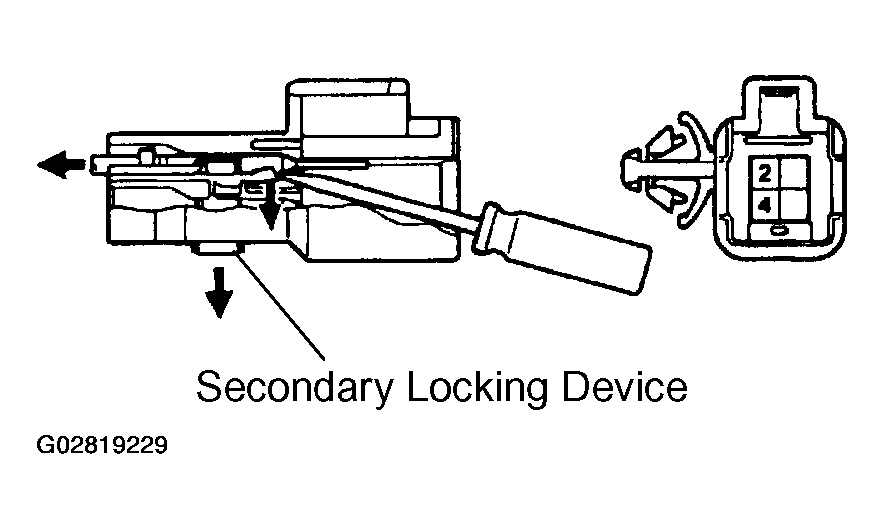

      Fig 1: Disengage Secondary Locking Device

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Release the locking lug of the terminals 2 and 4, and pull the terminals out from the rear.
2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

   Remove the 2 screws and shift lever knob sub-assembly.

   CAUTION: Pay attention not to apply unnatural load onto O/D main switch wire harness.
3. DISASSEMBLE SHIFT LEVER KNOB SUB-ASSEMBLY
   1. Remove the shift lever knob cover.

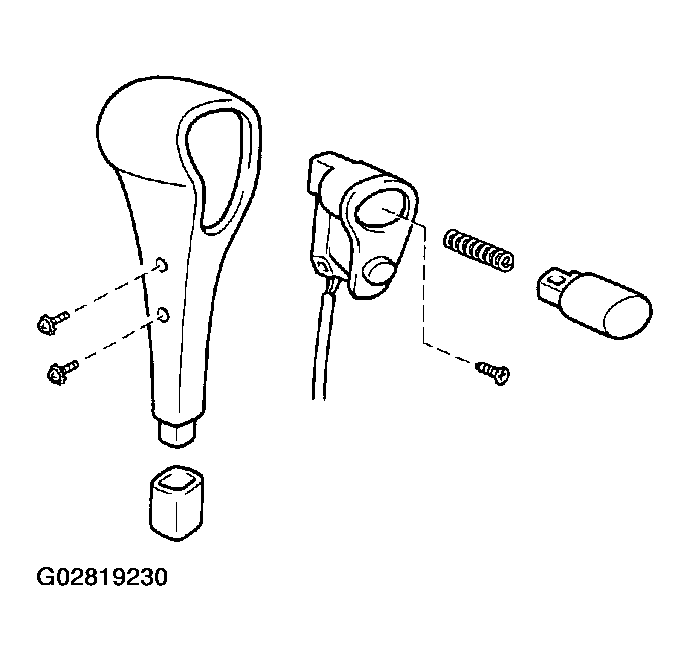

      Fig 2: Removing Shift Lever Knob Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the shift lever knob button and spring.
   3. Remove the screw and O/D main switch.
4. REMOVE INDICATOR HOUSING

   Remove a screw and position indicator housing.

5. DISCONNECT INDICATOR LIGHT
   1. Remove the indicator light from indicator housing.
   2. Remove the bulb from indicator light wire.
6. DISASSEMBLE INDICATOR HOUSING
   1. Remove the position indicator lower housing, position indicator slide cover and shift lock release button cap from the position indicator upper housing.

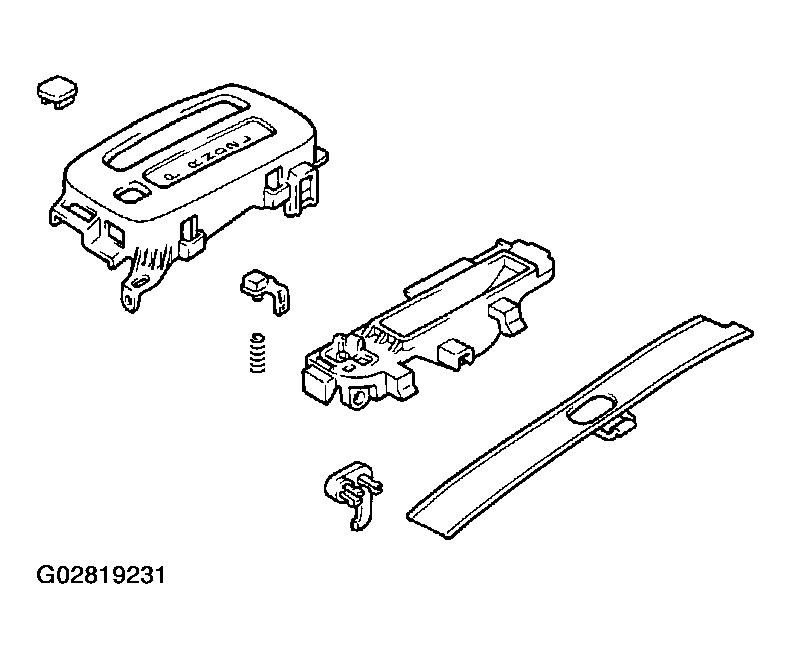

      Fig 3: Exploded View Of Indicator Housing

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the shift lock release link.
   3. Remove the shift lock release button, and spring from the position indicator lower housing.
7. REMOVE SHIFT LOCK UNIT
   1. Disconnect the shift lock solenoid bracket connector.
   2. Remove the 2 screws and shift lock solenoid bracket.
   3. Remove the shift lock control ECU.
8. REMOVE SPRING PLATE

   Remove a screw and spring plate from the shift lever sub-assembly.

9. REMOVE SHIFT LEVER SUB-ASSEMBLY
   1. Using 2 screws, press down the claw and remove the control shaft from the shift lever plate.
   2. Remove the shift lever sub-assembly.

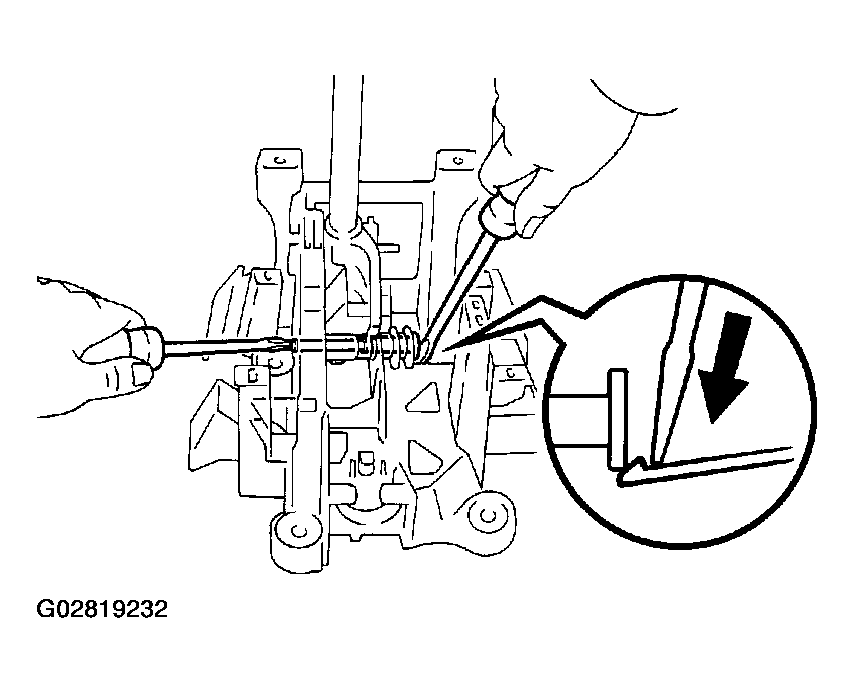

   Fig 4: Removing Control Shaft From Shift Lever Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. DISASSEMBLE SHIFT LEVER SUB-ASSEMBLY
    1. Measure the distance "A" between the lower edge of the shift lever knob sleeve and the upper edge of the floor shift lever.
    2. Remove the shift lever knob sleeve from the detent rod.

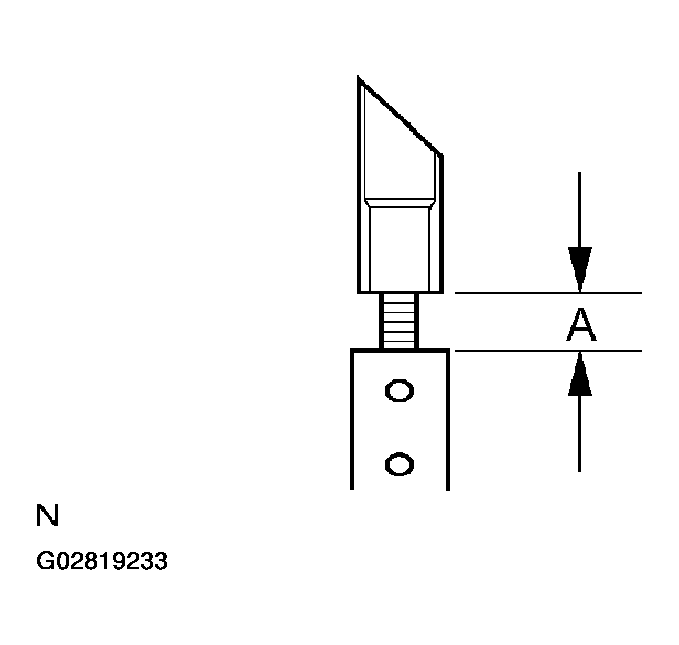

       Fig 5: Measuring Distance "A"

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a hammer, remove the grooved pin.

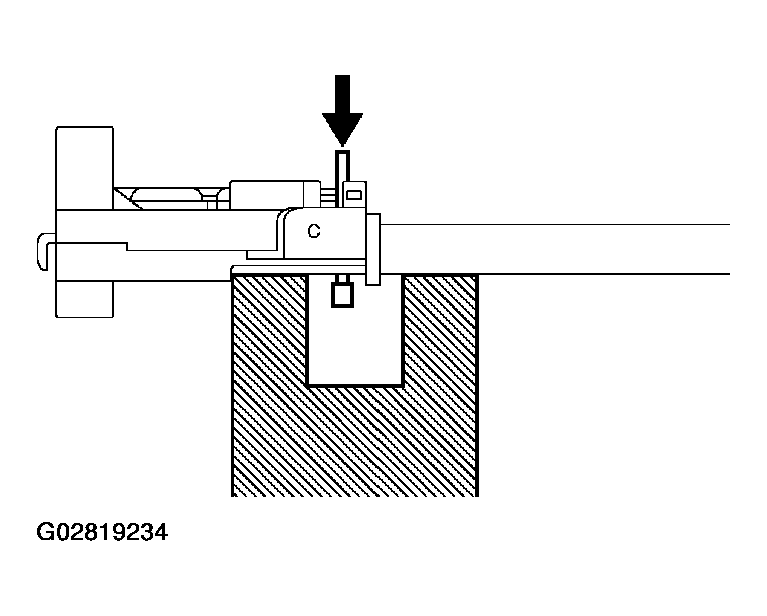

       Fig 6: Removing Grooved Pin

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       CAUTION: When pressing down the grooved pin, if doing it at the place other than the notch, there may be fear of damaging the shift lever sub-assembly.
    4. Remove the detent rod and compression rod spring.
11. REMOVE COLLARS

Using a screwdriver and a hammer, remove the 4 collars.
