Home >> Toyota >> 2003 >> Camry Solara SLE, 2D Convertible >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission Floor Shift Assembly >> Components

Automatic Transmission Floor Shift Assembly: Components

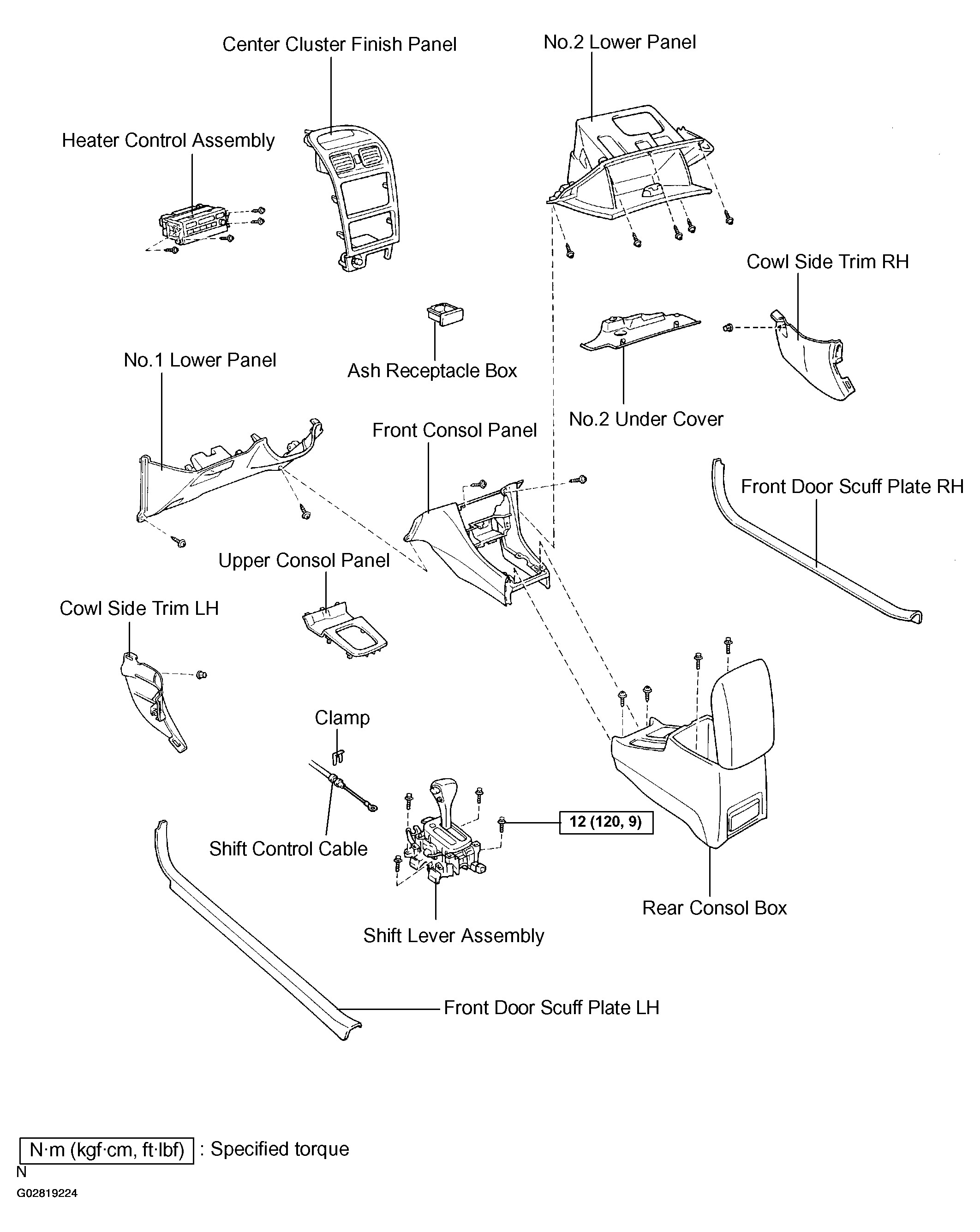

Fig 1: Locating Components Of Floor Shift Assembly (1 Of 2)
G02819224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

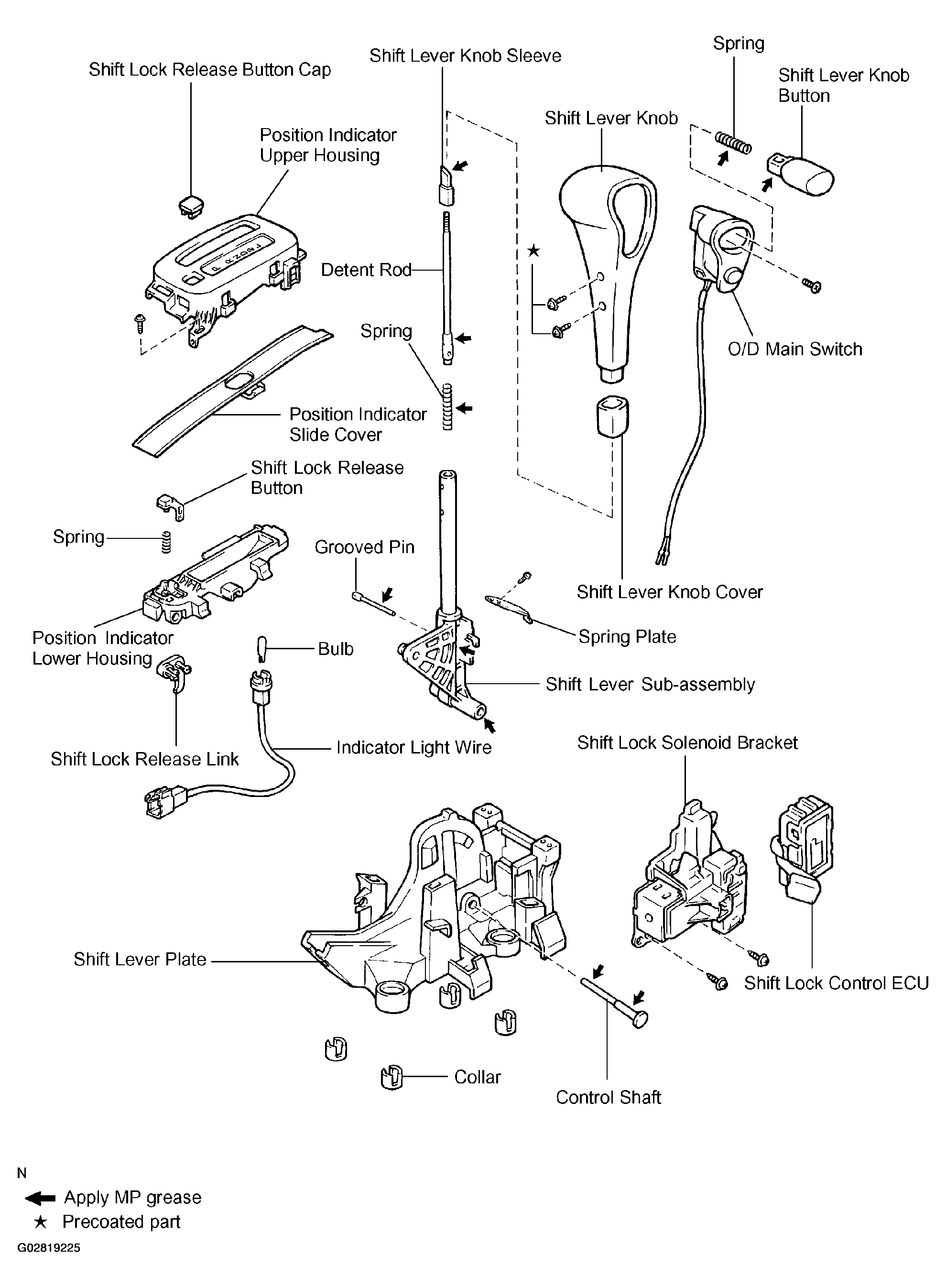

Fig 2: Locating Components Of Floor Shift Assembly (2 Of 2)
G02819225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
