Tilt Steering Column: Reassembly

NOTE: When using a vise, do not overtighten it.
  1. INSTALL 2 ENERGY ABSORBING PLATES
    1. Install the 2 energy absorbing plate guides and 2 energy absorbing plates.

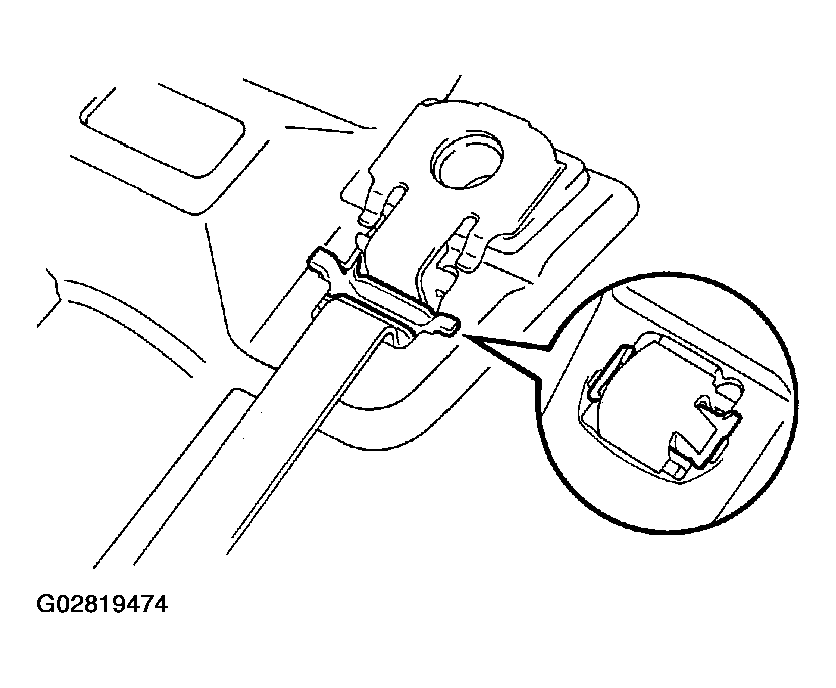

      2. Fig 1: Installing Energy Absorbing Plates
      G02819474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 NEW energy absorbing clips.
  2. INSTALL COLUMN TUBE SUPPORT
    1. Install the column tube attachment to the column tube support.
    2. Install the column tube support, washer and bolt.

    Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)

  3. INSTALL TILT LEVER RETURN SPRING
  4. INSTALL TURN SIGNAL BRACKET

    Install the turn signal bracket with the 2 bolts.

    Torque: 7.0 N.m (70 kgf.cm, 61 in.lbf)

  5. INSTALL COLUMN UPPER BRACKET AND COLUMN UPPER CLAMP
    1. Install the column upper bracket and column upper clamp with 2 NEW tapered-head bolts.
    2. Tighten the 2 tapered-head bolts until the bolt heads break off.
  6. w/Engine immobilizer system:

    INSTALL KEY CYLINDER LAMP ASSEMBLY AND TRANSPONDER KEY COIL

    1. Install the key cylinder lamp assembly to the transponder key coil.
    2. Install the transponder key coil and key cylinder lamp assembly with the screw.

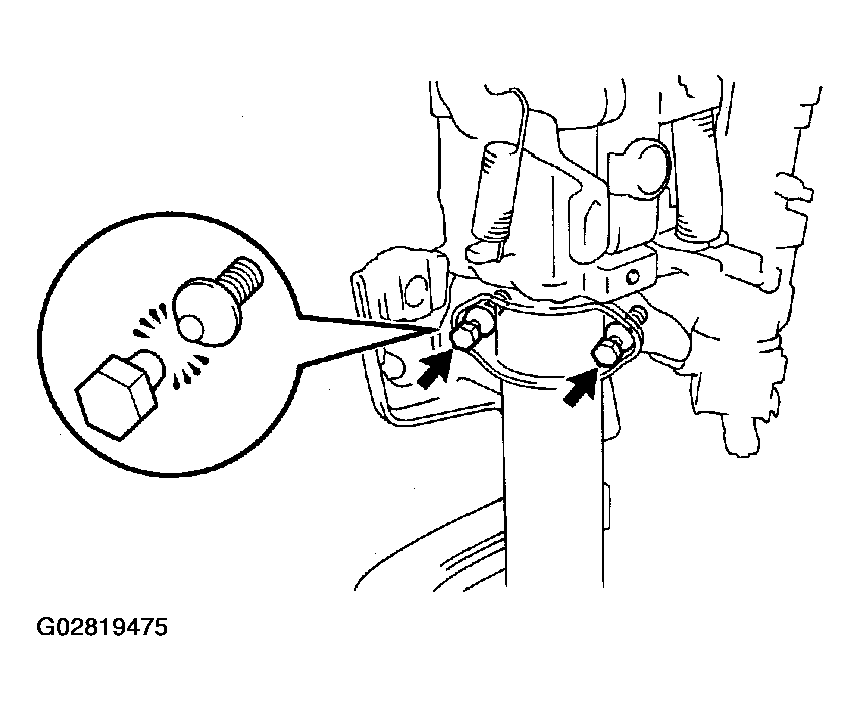

      3. Fig 2: Installing Column Upper Bracket & Column Upper Clamp
      G02819475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. w/o Engine immobilizer system:

    INSTALL KEY CYLINDER LAMP ASSEMBLY

    Install the key cylinder lamp assembly with the screw.
