Tilt Steering Column: Components

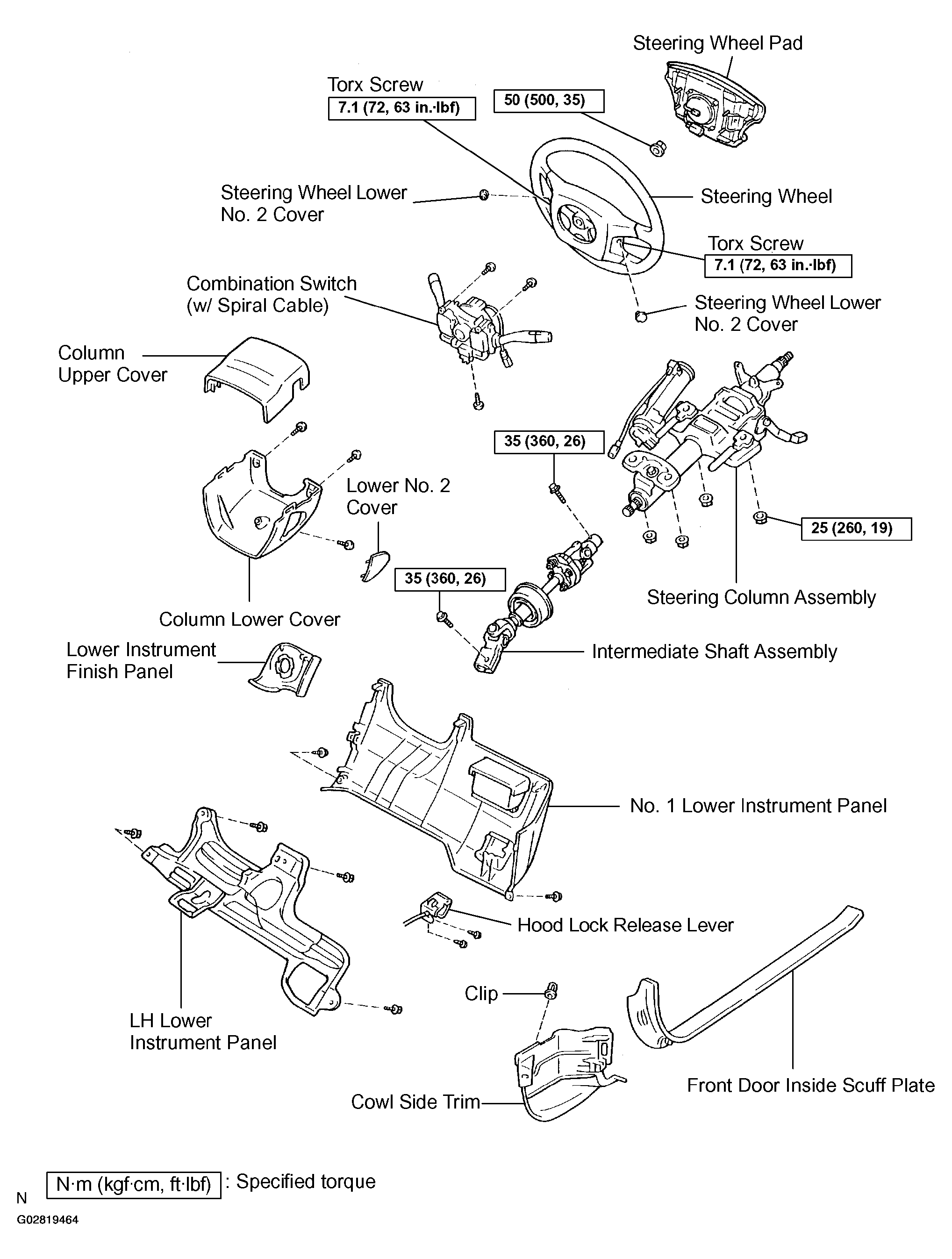

Fig 1: Identifying Steering Components (1 Of 2)
G02819464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

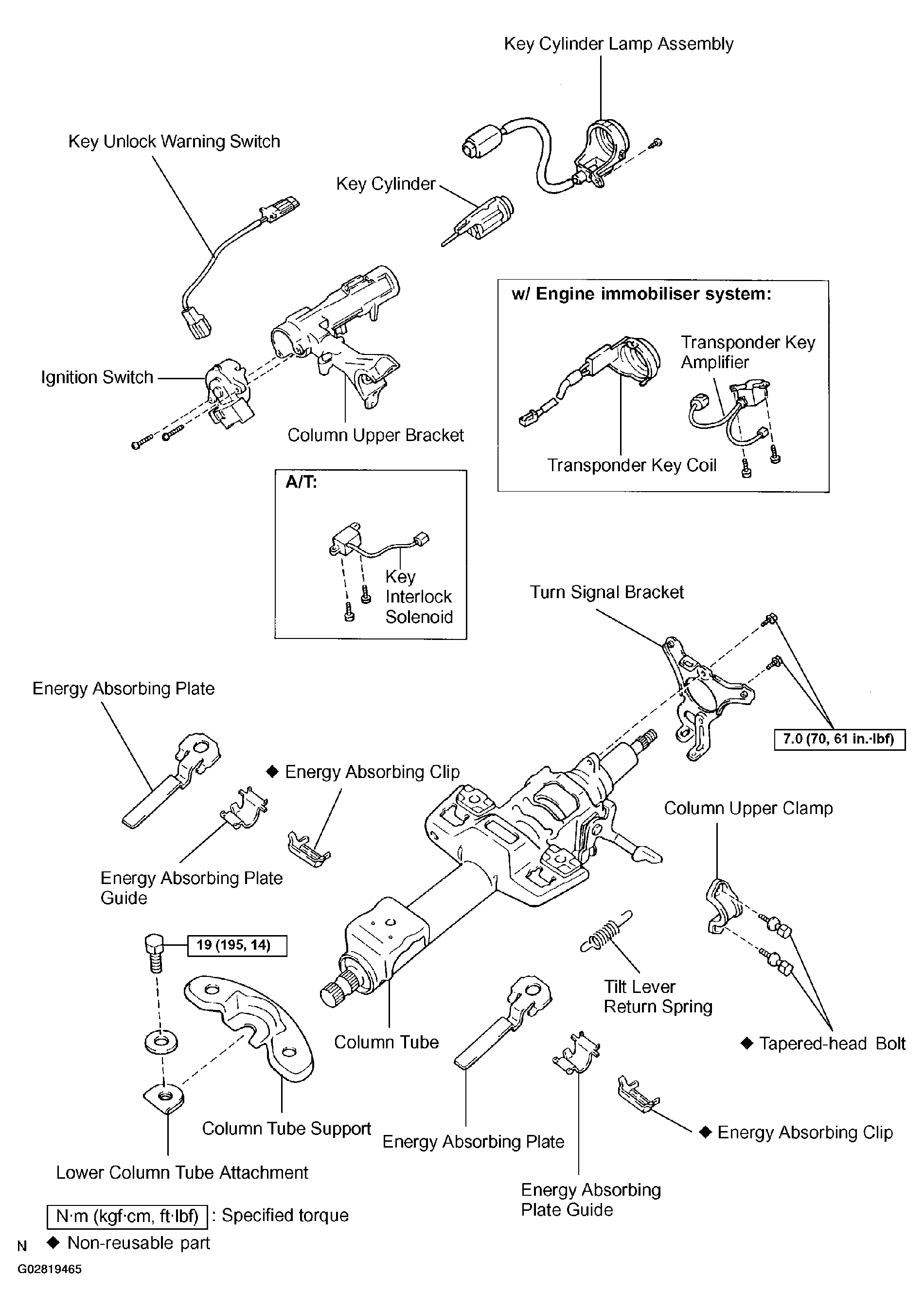

Fig 2: Identifying Steering Components (2 Of 2)
G02819465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
