Seat Belt: Components

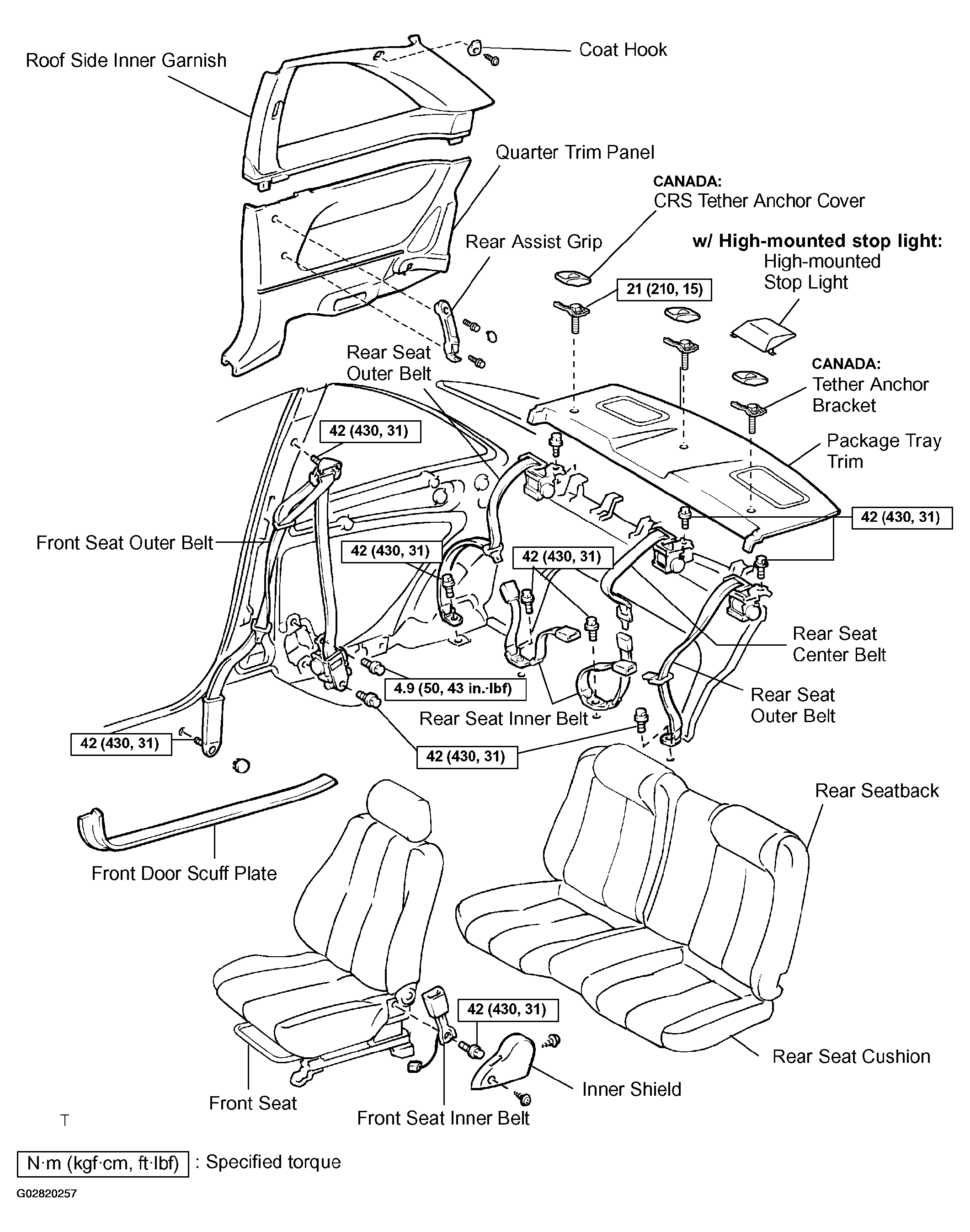

Fig 1: Identifying Components For Seat Belt Removal
G02820257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
