Drive Belts: Adjustment: Specifications

NOTE: Camry Solara with 4 cylinder engine an automatic belt tensioner is used. Adjustment is not required.

V6 BELT ADJUSTMENT - Tension In Lbs. (kg) Using Belt Tension Gauge

Application

New Belt

⁽¹⁾ Used Belt

Generator

170-180 (77-82)

95-135 (43-61)

Power Steering

150-185 (68-84)

95-135 (43-61)

⁽¹⁾	Used belt is a belt in operation at least 5 minutes.

DRIVE BELT ROUTING

Camry V6 information not available from manufacturer.

Automatic belt tension is used to provide proper tension on serpentine drive belt. For serpentine drive belt routing, see Fig 1.

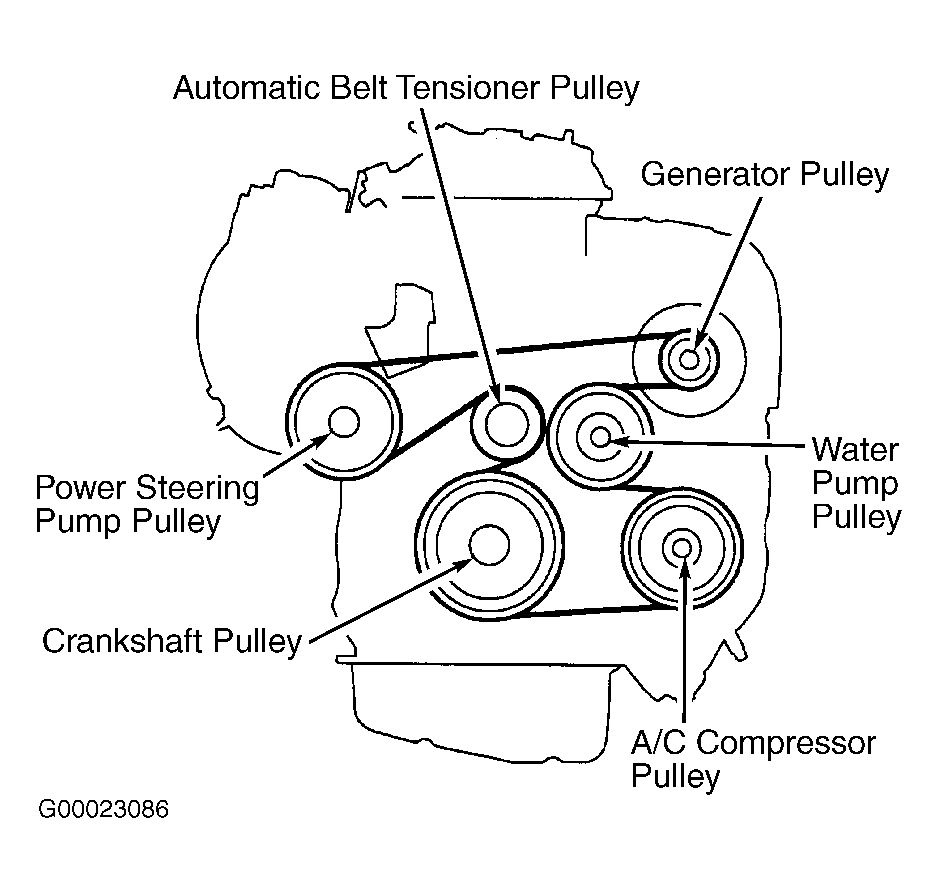

Fig 1: Drive Belt (Camry Solara 2.4L 4-Cyl.)
