Combination Meter: Circuit

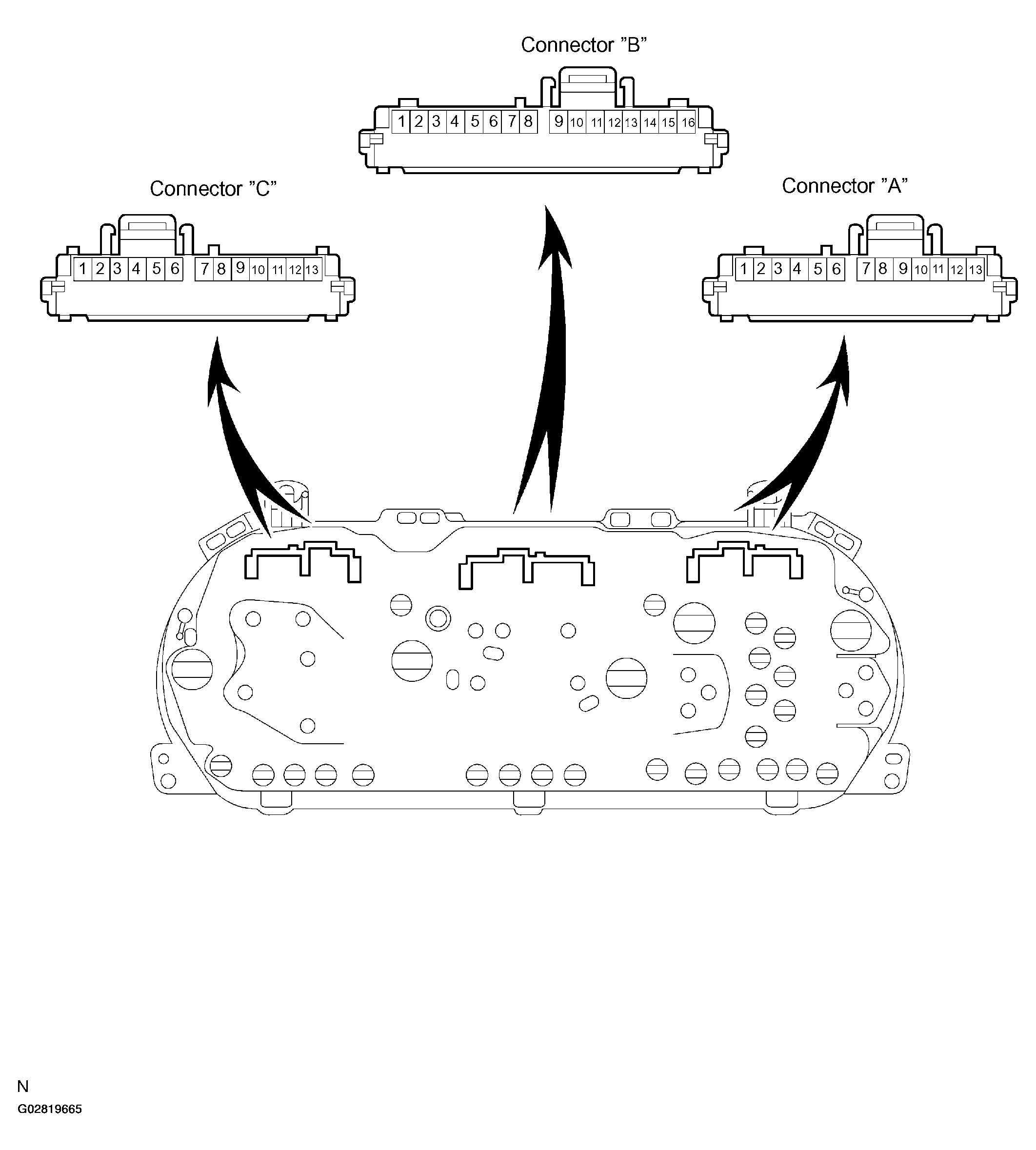

Fig 1: Locating Combination Meter Connector Terminal
G02819665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

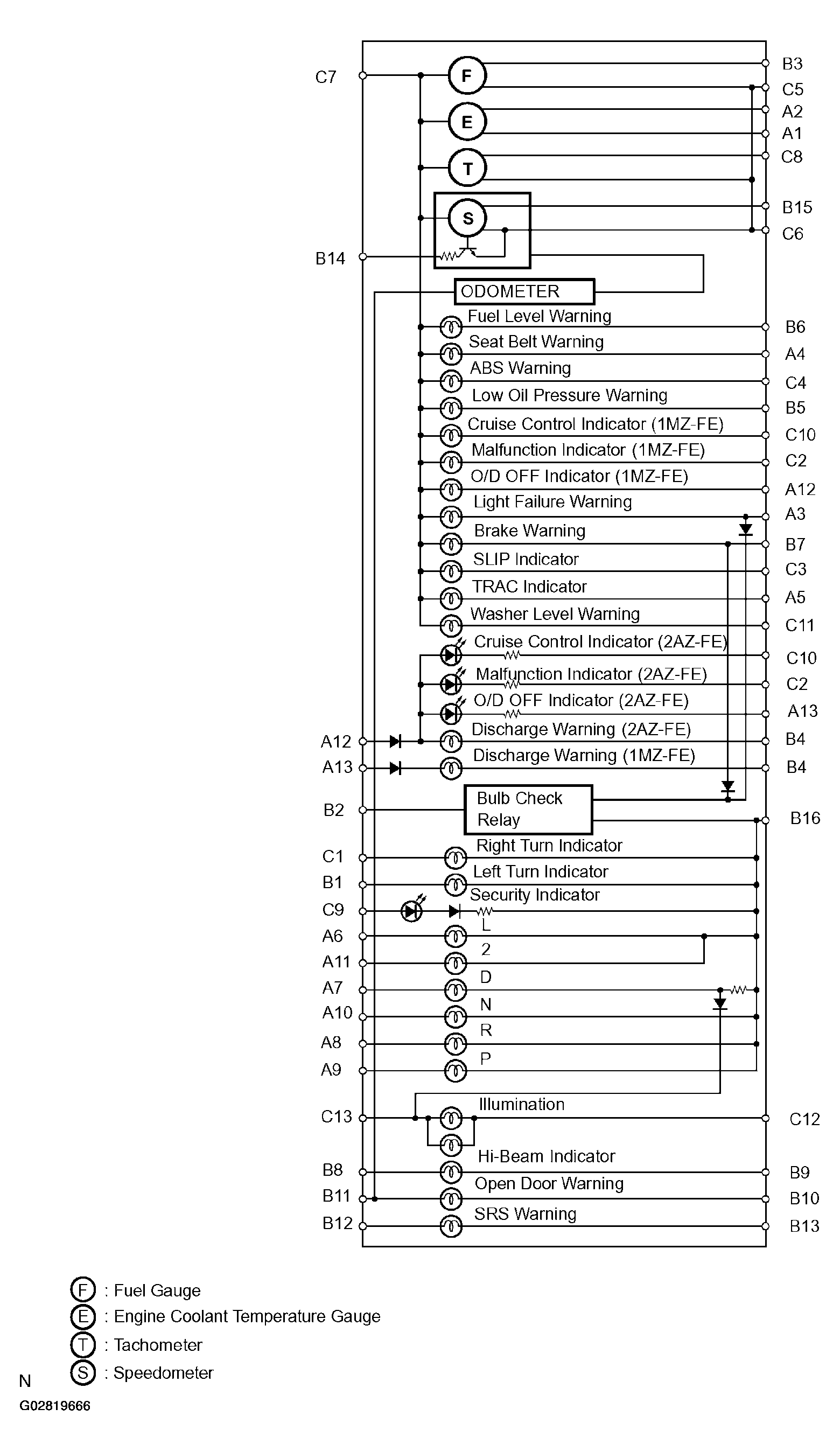

Fig 2: Combination Meter Circuit Diagram
G02819666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

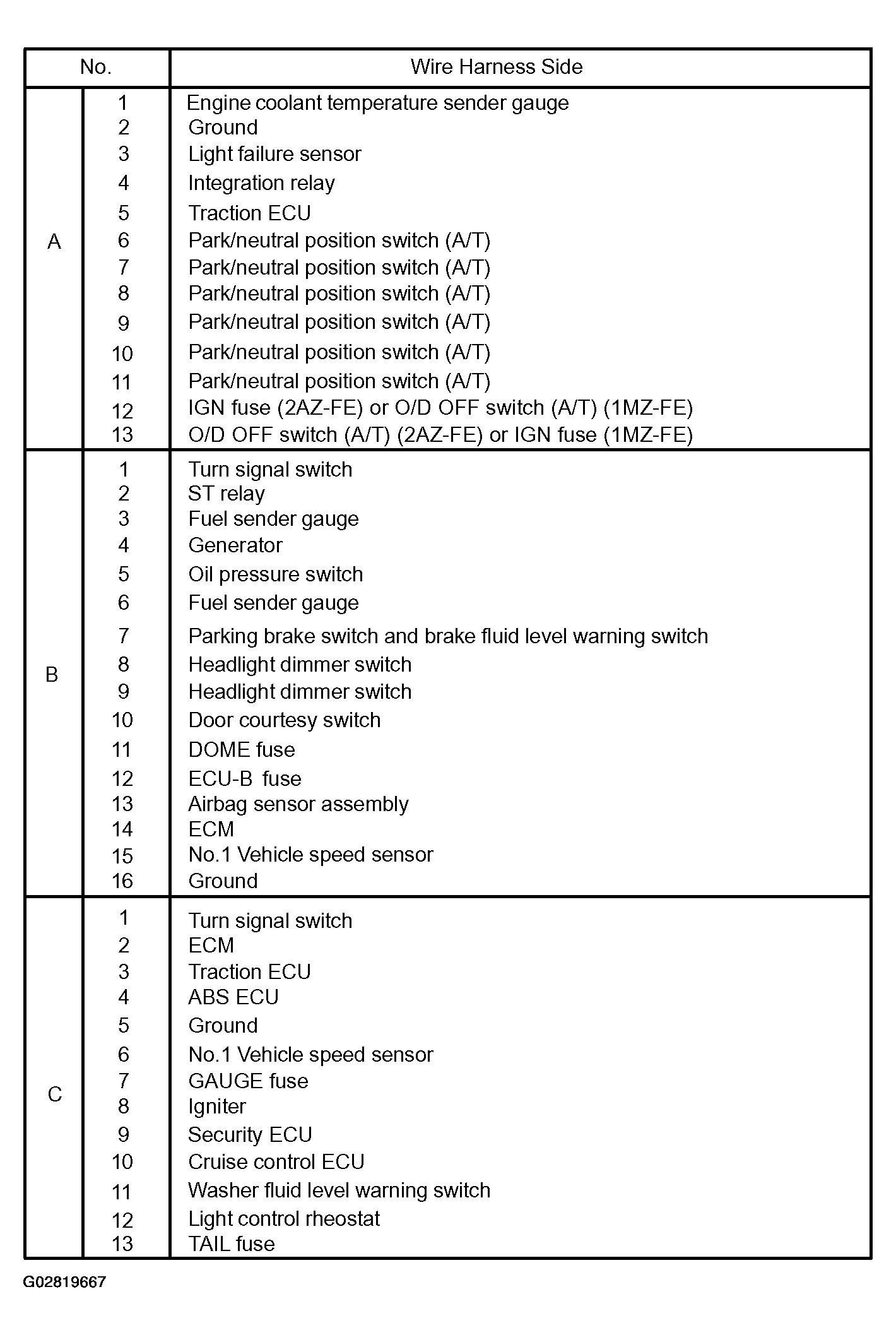

Fig 3: Connector Terminal Reference Chart
G02819667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
